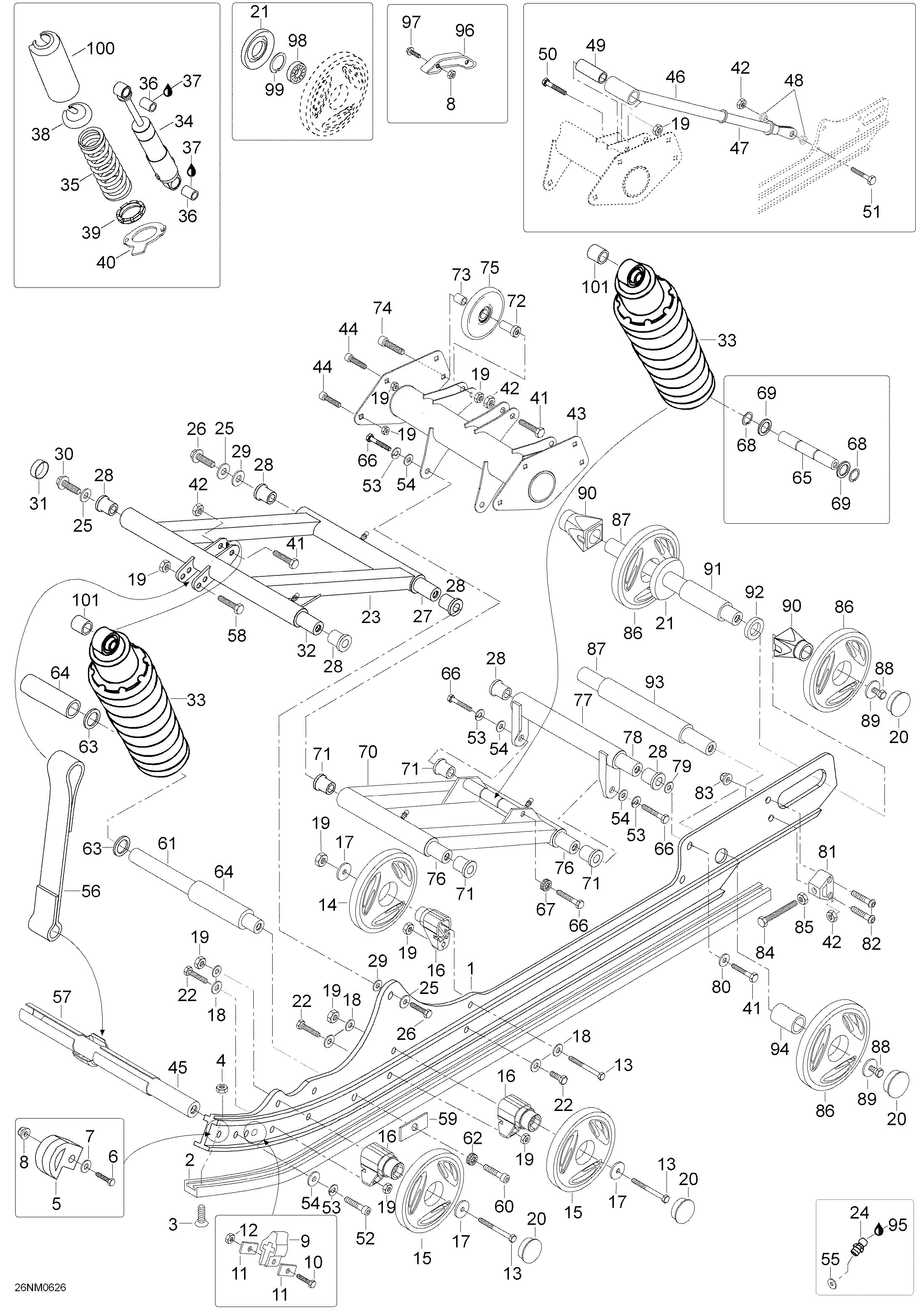

08- Rear Suspension для BRP Lynx Rave Xtrim N-Duro 550F - 2006
-
№АртикулНазвание
-
1605253361 RunnerRunner
-
2605353362 ShoeShoe
-
340059 Socket head screw M6 x 60Socket head screw M6 x 60
-
433010 Elastic stop nut M6Elastic stop nut M6
-
5605348954 Runner protectorRunner protector
-
640031 Hex. screw M6 x 25Hex. screw M6 x 25
-
720003 Washer A6,4Washer A6,4
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
95442328 Rubber stopperRubber stopper
-
1040032 Hex. screw M6 x 30Hex. screw M6 x 30
-
11548470 WasherWasher
-
1233010 Elastic stop nut M6Elastic stop nut M6
-
1340089 Hex. screw M8 x 75Hex. screw M8 x 75
-
14503190577 Idler wheel, (141)Idler wheel, (141)
-
15503190751 Idler wheel, (141)Idler wheel, (141)
-
16605451906 SupportSupport
-
17211200041 Washer 8mmWasher 8mm
-
1820104 Washer, hardened 8mmWasher, hardened 8mm
-
1933011 Elastic stop nut M8Elastic stop nut M8
-
20570063600 ProtectorProtector
-
21503190434 Labyrinth sealLabyrinth seal
-
2240037 Hex. screw M8 x 25Hex. screw M8 x 25
-
235145588 Front armFront arm
-
2434011 Grease nippleGrease nipple
-
2520074 WasherWasher
-
2640099 Hex. screw M12 x 45Hex. screw M12 x 45
-
27605352383 ShaftShaft
-
2831024 CushionCushion
-
2920040 WasherWasher
-
3040243 Hex. screw M12 x 60Hex. screw M12 x 60
-
315448025 CapCap
-
325346135 ShaftShaft
-
33605348903 Shock ass'y, front arm. Includes 33 to 39Shock ass'y, front arm. Includes 33 to 39
-
33605353838 Shock ass'y, rear arm. Includes 33 to 40Shock ass'y, rear arm. Includes 33 to 40
-
3423175 Shock, front armShock, front arm
-
3423194 Shock, rear armShock, rear arm
-
3525053 Spring, front armSpring, front arm
-
3525055 Spring, rear armSpring, rear arm
-
3631094 CushionCushion
-
37320006 Loctite 641, 50mlLoctite 641, 50ml
-
385346750 Spring stopperSpring stopper
-
39230078 CamCam
-
40605348748 Adjusting handleAdjusting handle
-
4140016 Hex. screw M10 x 45Hex. screw M10 x 45
-
4233012 Elastic stop nut M10Elastic stop nut M10
-
43605253615 Upper armUpper arm
-
4440351 Socket head screw M8 x 20Socket head screw M8 x 20
-
455343471 ShaftShaft
-
465347851 Poker tubePoker tube
-
475347852 Poker shaftPoker shaft
-
485447853 CushionCushion
-
495447848 SleeveSleeve
-
5040011 Screw M8 x 60Screw M8 x 60
-
5140042 Screw M10 x 35Screw M10 x 35
-
5240134 Socket head screw M10 x 45Socket head screw M10 x 45
-
5320047 Lock washer 10mmLock washer 10mm
-
5420105 Washer, hardened, 10mmWasher, hardened, 10mm
-
5520003 Washer A6,4Washer A6,4
-
56605449385 Stopper strapStopper strap
-
57605349381 LimiterLimiter
-
5840008 Hex. screw M8 x 45Hex. screw M8 x 45
-
59605449294 Support plateSupport plate
-
6040371 Socket head screw M12 x 55Socket head screw M12 x 55
-
61605350690 ShaftShaft
-
6220074 Lock washer 12mmLock washer 12mm
-
6331013 ShimShim
-
64605349896 SleeveSleeve
-
65605451897 ShaftShaft
-
6640014 Hex. screw M10 x 40Hex. screw M10 x 40
-
6720068 Lock washer 10mmLock washer 10mm
-
6831007 CirclipCirclip
-
6931091 ShimShim
-
70605349313 Rear armRear arm
-
7131027 CushionCushion
-
725447945 SleeveSleeve
-
735447946 SleeveSleeve
-
74605640006 Socket head screw M8 x 90Socket head screw M8 x 90
-
7546027 Idler wheelIdler wheel
-
765346865 ShaftShaft
-
775345535 Rear armRear arm
-
785346900 ShaftShaft
-
7920116 WasherWasher
-
80512056700 Lock washerLock washer
-
815341633 TensionerTensioner
-
8240392 Socket head screw M8 x 45Socket head screw M8 x 45
-
8333201 Elastic flanged nut M8Elastic flanged nut M8
-
8440239 Hex. screw M10 x 100Hex. screw M10 x 100
-
8533004 Nut M10Nut M10
-
86503191110 Idler fheel 165/Full MoonIdler fheel 165/Full Moon
-
87503190429 ShaftShaft
-
8840050 Hex. screw M10 x 35Hex. screw M10 x 35
-
89503190439 WasherWasher
-
90503190428 SleeveSleeve
-
91503190430 SleeveSleeve
-
92503190432 SleeveSleeve
-
93605353255 SleeveSleeve
-
94605353256 SleeveSleeve
-
95293550033 Synthetic greaseSynthetic grease
-
965343191 Slide partSlide part
-
9740064 Locking screw M6 x 40Locking screw M6 x 40
-
98503190795 Ball bearingBall bearing
-
99371901700 CirclipCirclip
-
1005346754 ProtectorProtector
-
1015446652 SleeveSleeve
