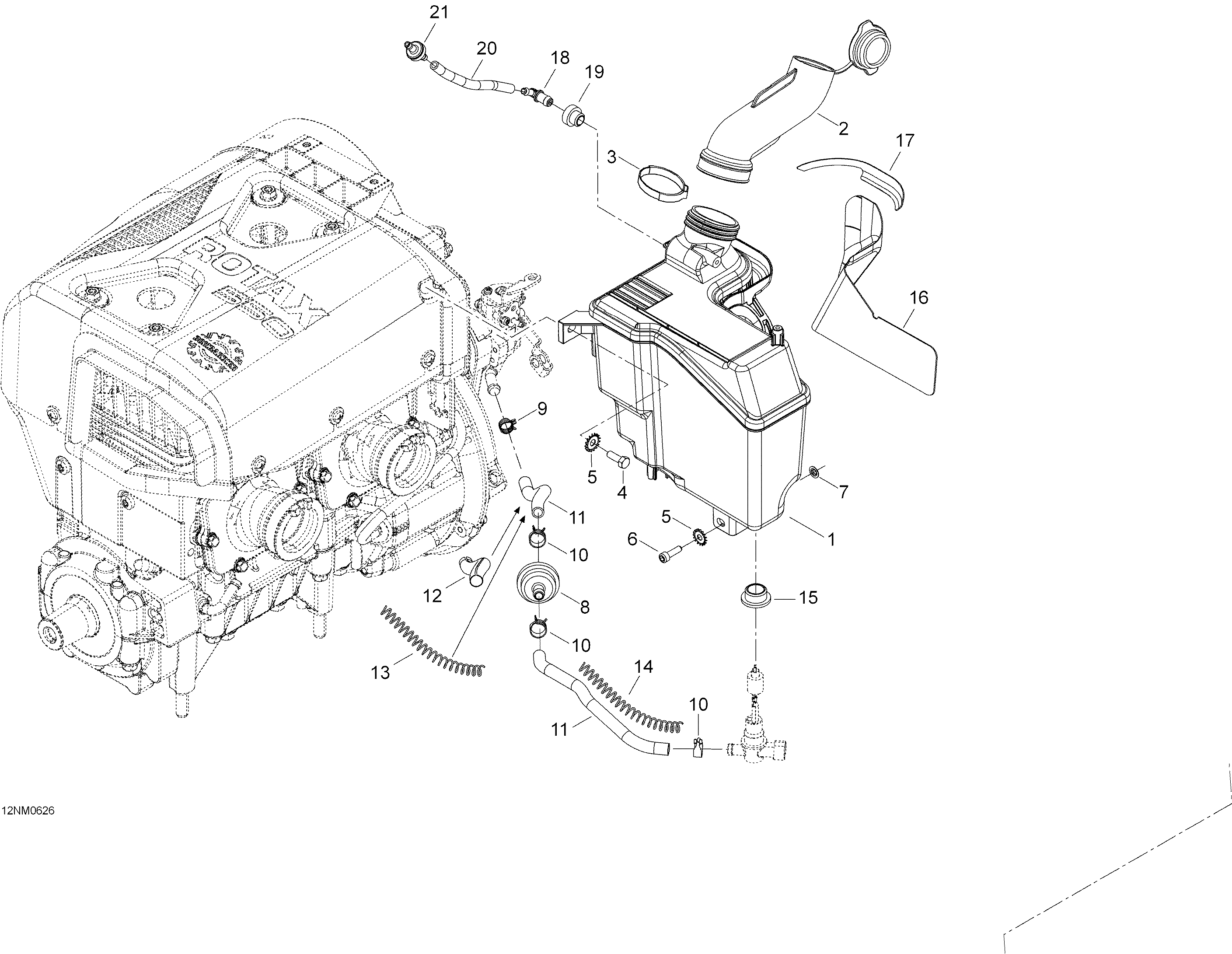

02- Oil Tank And Support для BRP Lynx Rave Xtrim N-Duro 550F - 2006
-
№АртикулНазвание
-
1519000073 Oil tankOil tank
-
2605252246 Filling neckFilling neck
-
327001 ClampClamp
-
440870 Self tapping screwSelf tapping screw
-
520017 Serrated lock washer 6mmSerrated lock washer 6mm
-
640052 Socket head screw M6 x 20Socket head screw M6 x 20
-
7732610072 Nut PushNut Push
-
8414536500 Oil filterOil filter
-
9414420700 ClampClamp
-
10414415200 ClampClamp
-
1139046 HoseHose
-
1228015 TubingTubing
-
13519000064 SpringSpring
-
14519000125 SpringSpring
-
15570023000 Insulated ringInsulated ring
-
16519000054 Reflective sheetReflective sheet
-
17519000072 Reflective sheetReflective sheet
-
18414580700 Male connectorMale connector
-
19513032908 GrommetGrommet
-
20415080200 HoseHose
-
21275500398 Check valveCheck valve
