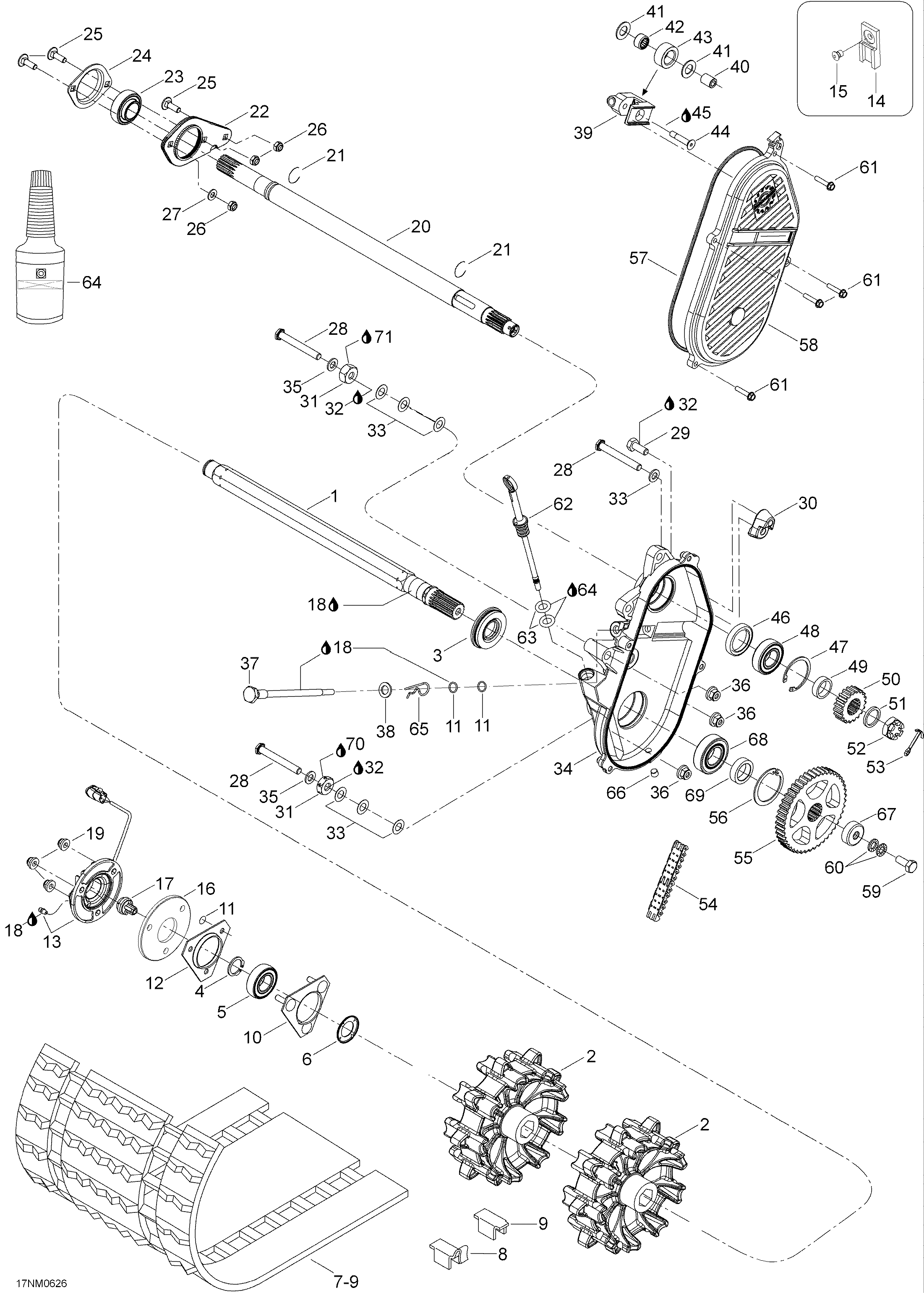

05- Drive Axle And Track для BRP Lynx Rave Xtrim N-Duro 550F - 2006
-
№АртикулНазвание
-
1501027400 Drive axleDrive axle
-
2504152503 SprocketSprocket
-
3504151918 Oil sealOil seal
-
431001 CirclipCirclip
-
5504152009 Ball bearingBall bearing
-
6501017400 Ball bearing protectorBall bearing protector
-
713077 Track (31.7). Includes 7 to 9Track (31.7). Includes 7 to 9
-
85318330 Guide clipGuide clip
-
95318329 CleatCleat
-
10504151860 Ball bearing housingBall bearing housing
-
11414484400 O-ringO-ring
-
12501025000 FlangeFlange
-
13504152345 Speed sensor flangeSpeed sensor flange
-
14515175917 ClipClip
-
1536005 RivetRivet
-
165446641 Shim plateShim plate
-
17504152040 Magnetic adaptorMagnetic adaptor
-
18293550033 Synthetic greaseSynthetic grease
-
1933201 Elastic flanged nut M8Elastic flanged nut M8
-
20504152292 Counter shaftCounter shaft
-
21371910000 CirclipCirclip
-
22504151968 SpacerSpacer
-
23504152026 Ball bearingBall bearing
-
24501026900 FlangeFlange
-
2540312 Carriage bolt M8 x 22Carriage bolt M8 x 22
-
2633011 Elastic stop nut M8Elastic stop nut M8
-
2720004 Washer 8mmWasher 8mm
-
28250000151 Hex. screw M10 x 80Hex. screw M10 x 80
-
2940040 Hex. screw M10 x 25Hex. screw M10 x 25
-
30504152252 SleeveSleeve
-
31504083800 SpacerSpacer
-
32293800060 Loctite 243, 10mlLoctite 243, 10ml
-
33504073700 ShimShim
-
34504152312 ChaincaseChaincase
-
35605620000 Washer A10,5Washer A10,5
-
3633074 Elastic flanged nut M10Elastic flanged nut M10
-
37732601314 Adjusting screwAdjusting screw
-
3820005 Washer A10,5Washer A10,5
-
39504151951 Chain tensionerChain tensioner
-
40504080200 SleeveSleeve
-
41504080300 WasherWasher
-
42405403000 Needle bearingNeedle bearing
-
43414531300 RollerRoller
-
44732601144 ScrewScrew
-
45293800005 Loctite 271,10mlLoctite 271,10ml
-
46504151927 Oil sealOil seal
-
47371901700 CirclipCirclip
-
48504152006 Ball bearingBall bearing
-
49504147200 ShimShim
-
50504152031 Sprocket (196)Sprocket (196)
-
513125351 ShimShim
-
52250000012 Hex. castellated nut M20Hex. castellated nut M20
-
5341003 Cotter pinCotter pin
-
54504151830 Drive chain (13/72 links)Drive chain (13/72 links)
-
55504148500 Sprocket (43 teeth)Sprocket (43 teeth)
-
56415064300 CirclipCirclip
-
57415046400 O-ringO-ring
-
58504152471 CoverCover
-
5940040 Screw M10 x 25Screw M10 x 25
-
6020068 Lock washer 10mmLock washer 10mm
-
6140340 Hex. flanged screw M6 x 30Hex. flanged screw M6 x 30
-
62504151703 Filler capFiller cap
-
63414969400 O-ringO-ring
-
64413803300 Synthetic chaincase oil, 12 x 355 mlSynthetic chaincase oil, 12 x 355 ml
-
65414575600 Hair pinHair pin
-
66504151921 PlugPlug
-
67504152460 CapCap
-
68504152005 Ball bearingBall bearing
-
69504152058 ShimShim
-
70293800070 Loctite 767, antiseize lubricant, 8ozLoctite 767, antiseize lubricant, 8oz
