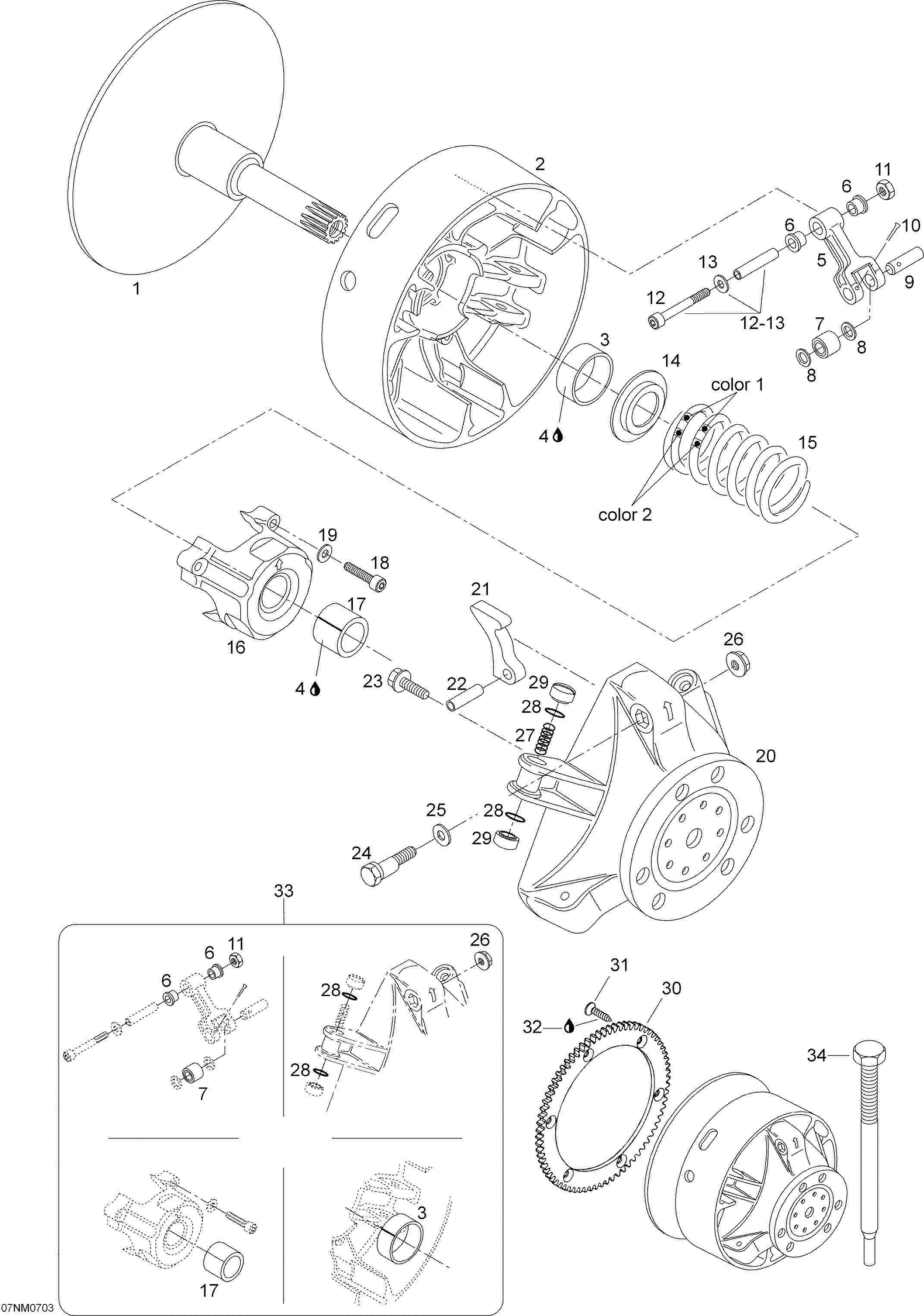

05- Drive Pulley для BRP Lynx 6900 - 2007
-
№АртикулНазвание
-
1417222412 Fix flangeFix flange
-
2417222241 Sliding flange ass'y. Includes 2 to 3Sliding flange ass'y. Includes 2 to 3
-
3417004201 Bushing outer halfBushing outer half
-
4413703100 Loctite 609, 10ccLoctite 609, 10cc
-
5417222383 Lever assy. Includes 5 to 6Lever assy. Includes 5 to 6
-
6417004305 Flange bushingFlange bushing
-
7417003900 Roller ass'yRoller ass'y
-
8417004302 Thrust washerThrust washer
-
9417004308 PinPin
-
10732958001 Cotter pinCotter pin
-
1133010 Nut elastic M6Nut elastic M6
-
-417004800 Fitting screw assy. Includes 12 to 13Fitting screw assy. Includes 12 to 13
-
12222965065 Allen screw M6 x 50Allen screw M6 x 50
-
1320003 Flat washer 6mmFlat washer 6mm
-
14417222044 Spring seatSpring seat
-
15414742100 Spring yelow/blueSpring yelow/blue
-
16417222304 Spring cover assy. Includes 16 to 17Spring cover assy. Includes 16 to 17
-
17417004501 Spring cover bushingSpring cover bushing
-
18250000038 Allen screw M6 x 40Allen screw M6 x 40
-
19420245370 Friction washerFriction washer
-
20417222081 Gouvernor cup assyGouvernor cup assy
-
21417222444 RampRamp
-
22732804009 Dowl tubeDowl tube
-
23210361890 Screw M6 x 18Screw M6 x 18
-
24417005500 Calibration screwCalibration screw
-
25417005600 WasherWasher
-
26233061414 Locking nut M6Locking nut M6
-
27417005700 SpringSpring
-
28732401030 O-RingO-Ring
-
29417005800 Shoe sliderShoe slider
-
30417222858 Ring gearRing gear
-
31236281684 ScrewScrew
-
32293800005 Loctite 271, 10mlLoctite 271, 10ml
-
33417006100 Clutch repair kitClutch repair kit
-
34529007900 Puller inner halfPuller inner half
