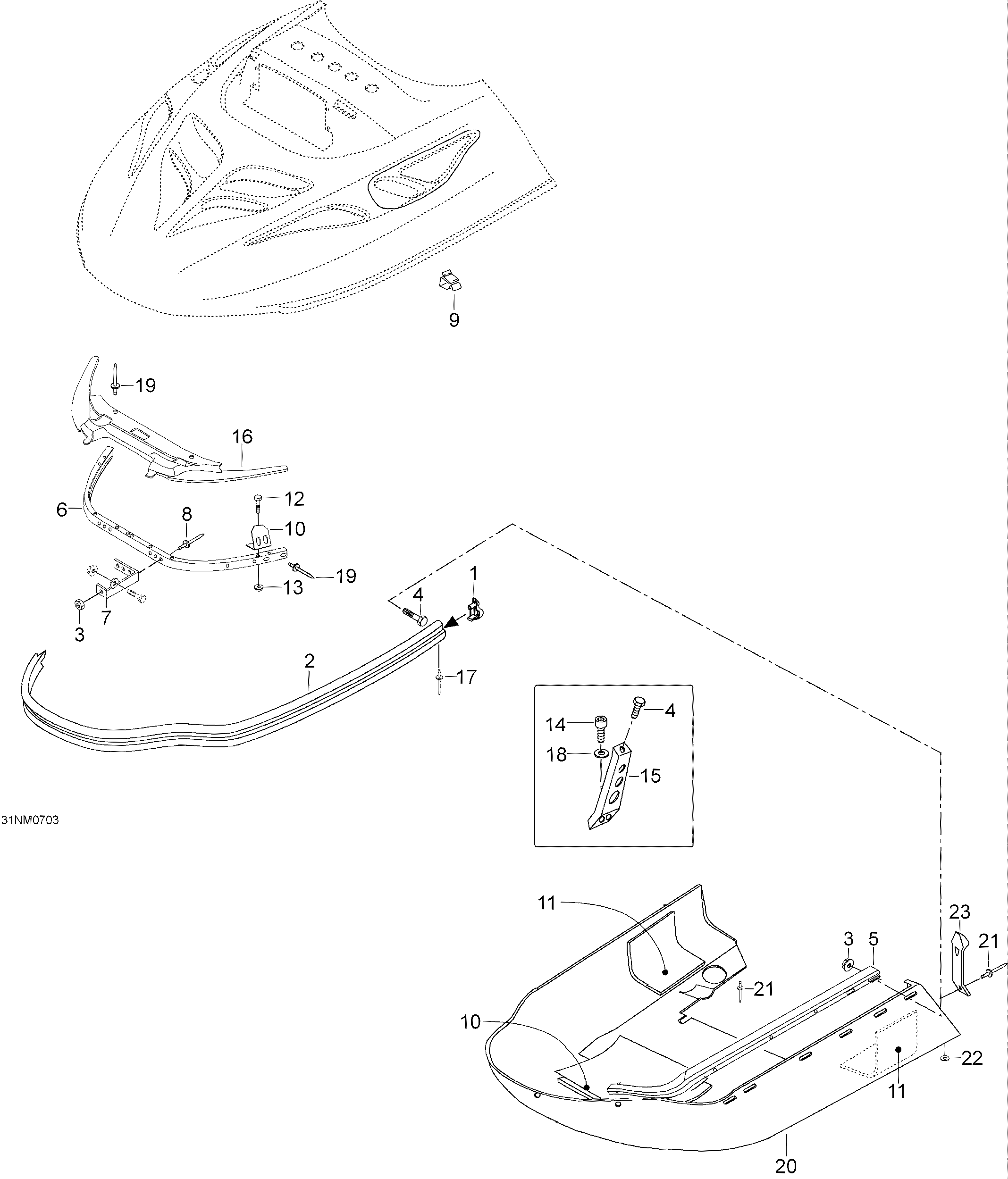

09- Bottom Pan для BRP Lynx 6900 - 2007
-
№АртикулНазвание
-
1549096R Plug R.H.Plug R.H.
-
1549096L Plug L.H.Plug L.H.
-
25242798 BumperBumper
-
333200 Elastic flanged nut M6Elastic flanged nut M6
-
440078 Screw M6 x 22Screw M6 x 22
-
55242804 Guide side R.H.Guide side R.H.
-
55242803 Guide side L.H.Guide side L.H.
-
65246120 Front support ass'y. Includes 6 to 8Front support ass'y. Includes 6 to 8
-
75342234 Hinge R.H.Hinge R.H.
-
75342345 Hinge L.H.Hinge L.H.
-
836083 RivetRivet
-
9414227300 ClipClip
-
105443217 Guide, shortGuide, short
-
115345089 Acoustic foamAcoustic foam
-
1240247 Elastic flanged nut M5Elastic flanged nut M5
-
1333062 SkruvSkruv
-
1440332 Socket head screw M6 x 16Socket head screw M6 x 16
-
155342509 Support for bumperSupport for bumper
-
16605252352 Protector for hingeProtector for hinge
-
1736097 RivetRivet
-
1820052 Lock washer A6Lock washer A6
-
1936036 RivetRivet
-
20605152653 Bottom panBottom pan
-
2136037 RivetRivet
-
2220008 Washer A5,3Washer A5,3
-
23570027100 Hood latchHood latch
