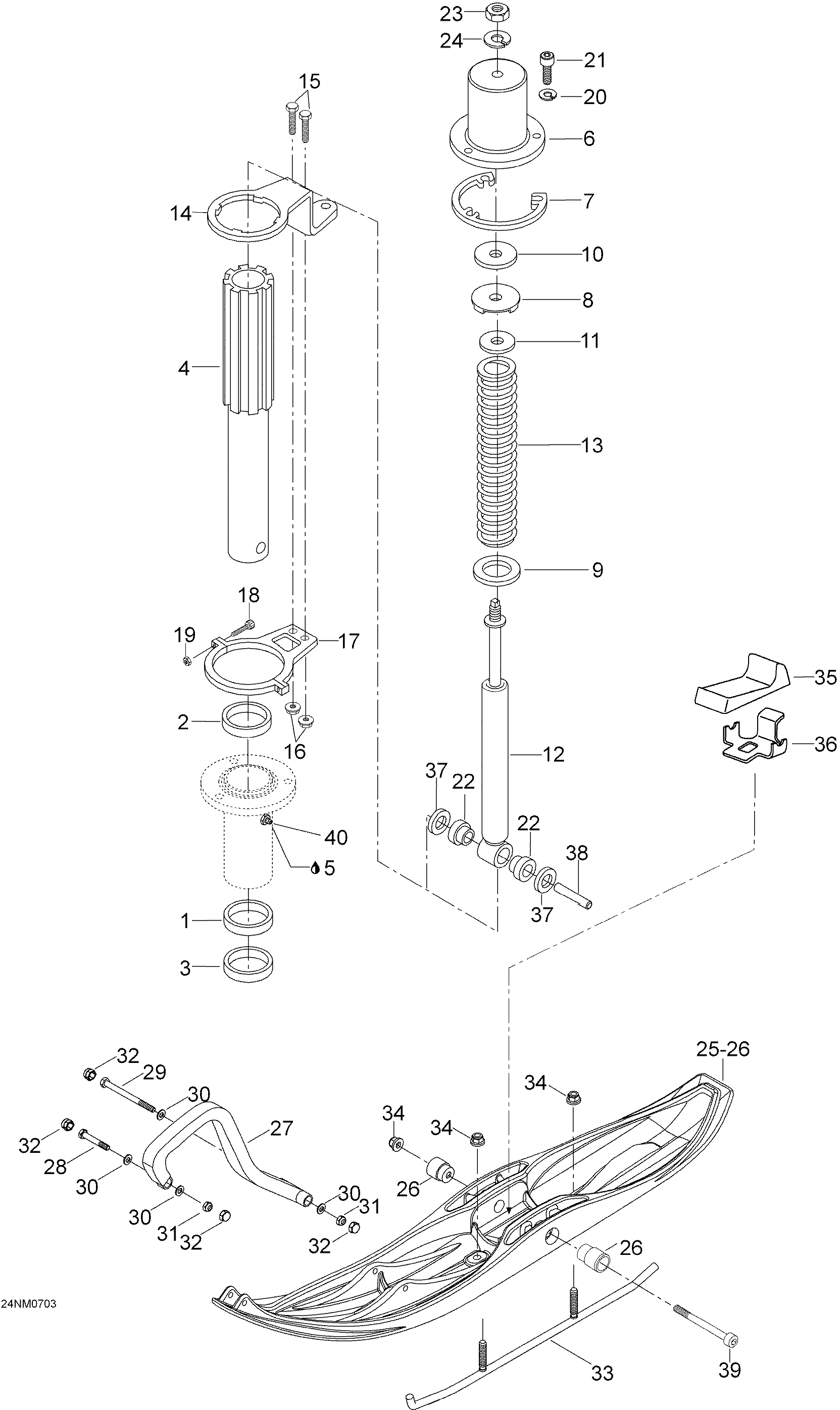

07- Front Suspension And Ski для BRP Lynx 6900 - 2007
-
№АртикулНазвание
-
1414803200 Lower cushionLower cushion
-
2414803100 Upper cushionUpper cushion
-
3316373 Oil sealOil seal
-
45245362 Ski-legSki-leg
-
5413711500 GreaseGrease
-
6605249284 Welded coverWelded cover
-
7503145600 Spacer plateSpacer plate
-
8570025800 StopperStopper
-
9549493 BearingplateBearingplate
-
105440399 PlatePlate
-
11549492 Holder plateHolder plate
-
12505070920 ShockShock
-
135241330 SpringSpring
-
145244182 Arm-steeringArm-steering
-
1540031 Screw M6 x 25Screw M6 x 25
-
1633200 Elastic flanged nut M6Elastic flanged nut M6
-
175344180 Support arm ass'ySupport arm ass'y
-
1840146 Socket head screw M4 x 20Socket head screw M4 x 20
-
1933008 Nut elastic M4Nut elastic M4
-
2020014 Lock washer A8Lock washer A8
-
2140305 Socket head screw M8 x 20Socket head screw M8 x 20
-
22572034500 SleeveSleeve
-
2333012 Elastic stop nut M10Elastic stop nut M10
-
2420012 Washer A10,5Washer A10,5
-
25605153775 Plastic ski. Includes 25 to 26Plastic ski. Includes 25 to 26
-
26605348392 SleeveSleeve
-
27505070963 Plastic handlePlastic handle
-
2840009 Screw M8 x 50Screw M8 x 50
-
2940264 Screw M8 x 90Screw M8 x 90
-
3020004 Washer A8,4Washer A8,4
-
3133011 Elastic stop nut M8Elastic stop nut M8
-
3228056 CapCap
-
33605349311 Runner carbide assyRunner carbide assy
-
3433074 Elastic flanged nut M10Elastic flanged nut M10
-
35605348439 StopperStopper
-
36605348437 Support plateSupport plate
-
37605448594 SleeveSleeve
-
38605348921 SleeveSleeve
-
3940225 Socket head screw M10 x 140Socket head screw M10 x 140
-
4034019 Grease nippleGrease nipple
