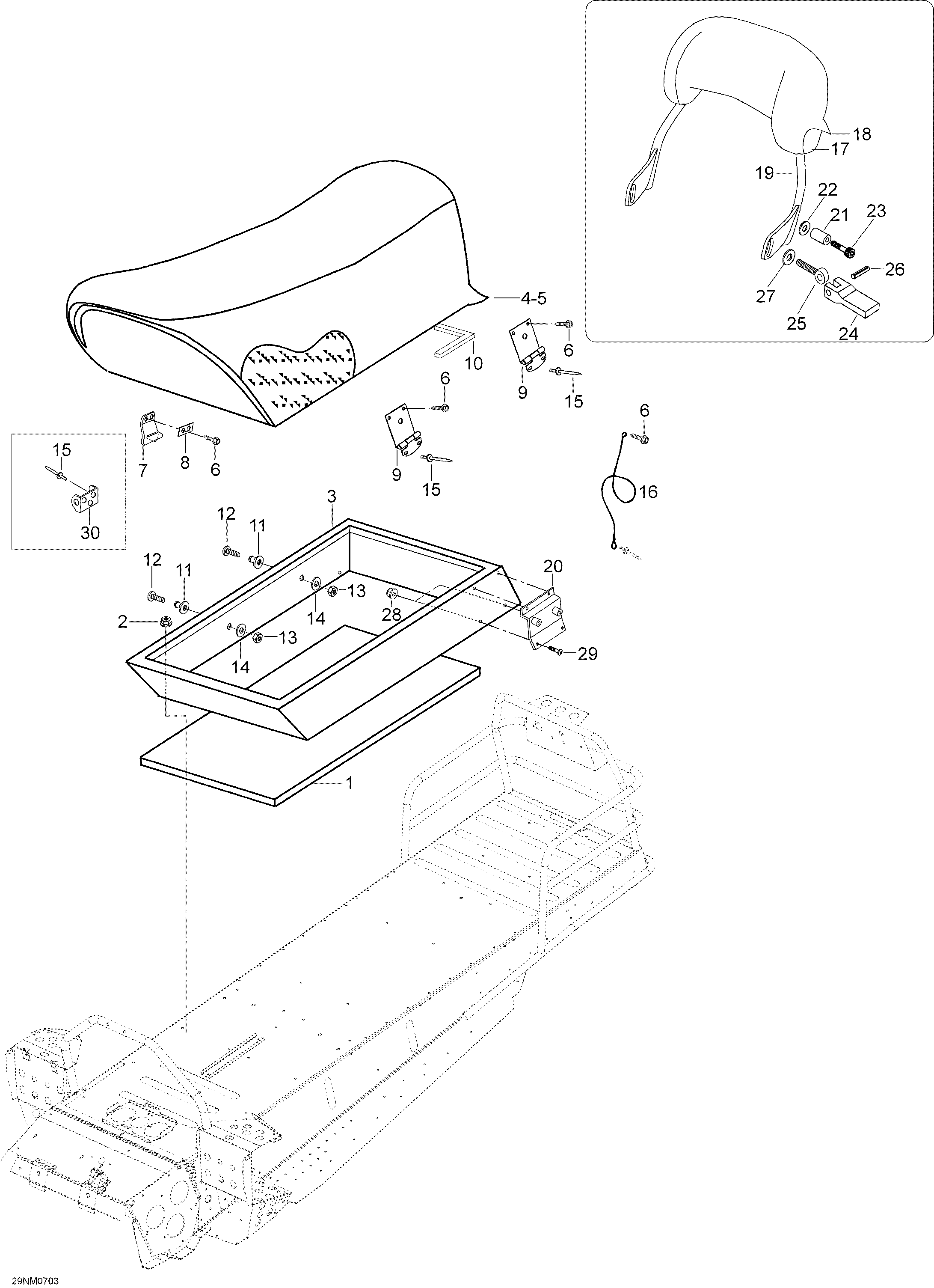

09- Seat для BRP Lynx 6900 - 2007
-
№АртикулНазвание
-
15346331 Foam, seat baseFoam, seat base
-
233200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
-
35246336 Seat boxSeat box
-
4605153076 Seat. Includes 4 to 5Seat. Includes 4 to 5
-
5605153077 CoverCover
-
640888 Wronic-screw 4,2 x 19Wronic-screw 4,2 x 19
-
75346383 LatchLatch
-
85446848 Support plateSupport plate
-
95446374 Hinge for set ass'yHinge for set ass'y
-
10390002 SealSeal
-
11605449087 Counter rollCounter roll
-
1240168 Screw M4 x 25Screw M4 x 25
-
1333008 Nut elastic M4Nut elastic M4
-
1420037 Washer A4,3Washer A4,3
-
1536083 RivetRivet
-
16546777 Retainer cableRetainer cable
-
17539399 FoamFoam
-
185340917 CoverCover
-
195241820 BackrestBackrest
-
205341889 R.H. Fixing plateR.H. Fixing plate
-
205341818 L.H. Fixing plateL.H. Fixing plate
-
215441814 SleeveSleeve
-
2220004 Washer 8,4Washer 8,4
-
2340336 Hex. screw M8 x 20Hex. screw M8 x 20
-
245243419 Locking LeverLocking Lever
-
25517250100 Eye boltEye bolt
-
26414821400 PinPin
-
2720023 Washer 10mmWasher 10mm
-
2833062 Elastic flanged nut M5Elastic flanged nut M5
-
2940063 Screw M5 x 12Screw M5 x 12
-
30548824 Belt LugBelt Lug
