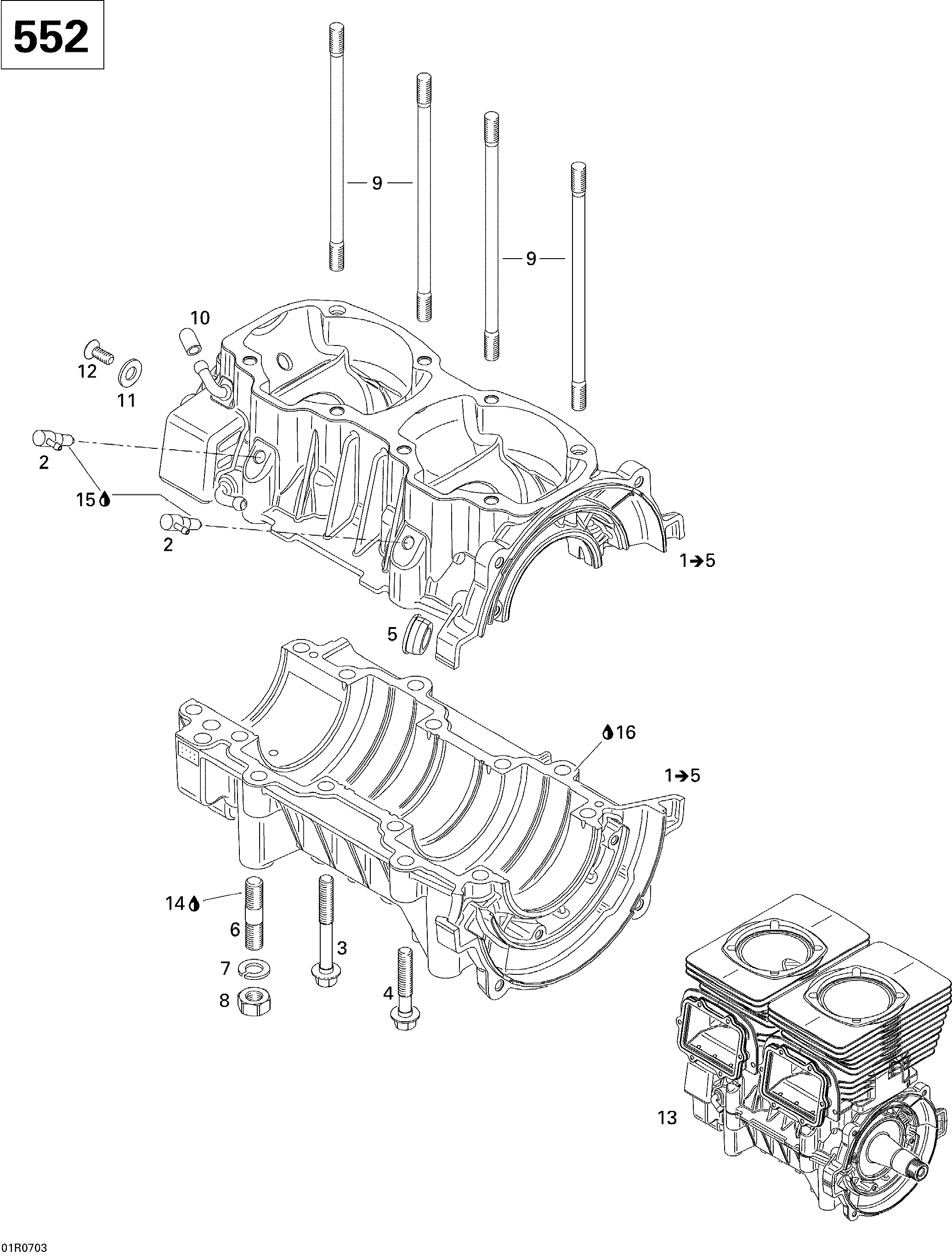

01- Crankcase для BRP Lynx Adventure 550F - 2007
-
№АртикулНазвание
-
1420890231 Crankcase Ass'y. Includes 1 to 5Crankcase Ass'y. Includes 1 to 5
-
2420956510 Check ValveCheck Valve
-
3420640951 Hex Screw M8 X 68.5Hex Screw M8 X 68.5
-
4420640431 Hex Collar Screw M8 X 45Hex Collar Screw M8 X 45
-
5420860962 Cable GrommetCable Grommet
-
6420641834 Stud M10 X 29Stud M10 X 29
-
9420840556 Stud M8 X 173.5Stud M8 X 173.5
-
10420960772 CapCap
-
11420250311 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
12420640896 Flat Head ScrewFlat Head Screw
-
13420055206 Short Block 552Short Block 552
-
14293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
15413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
16293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
