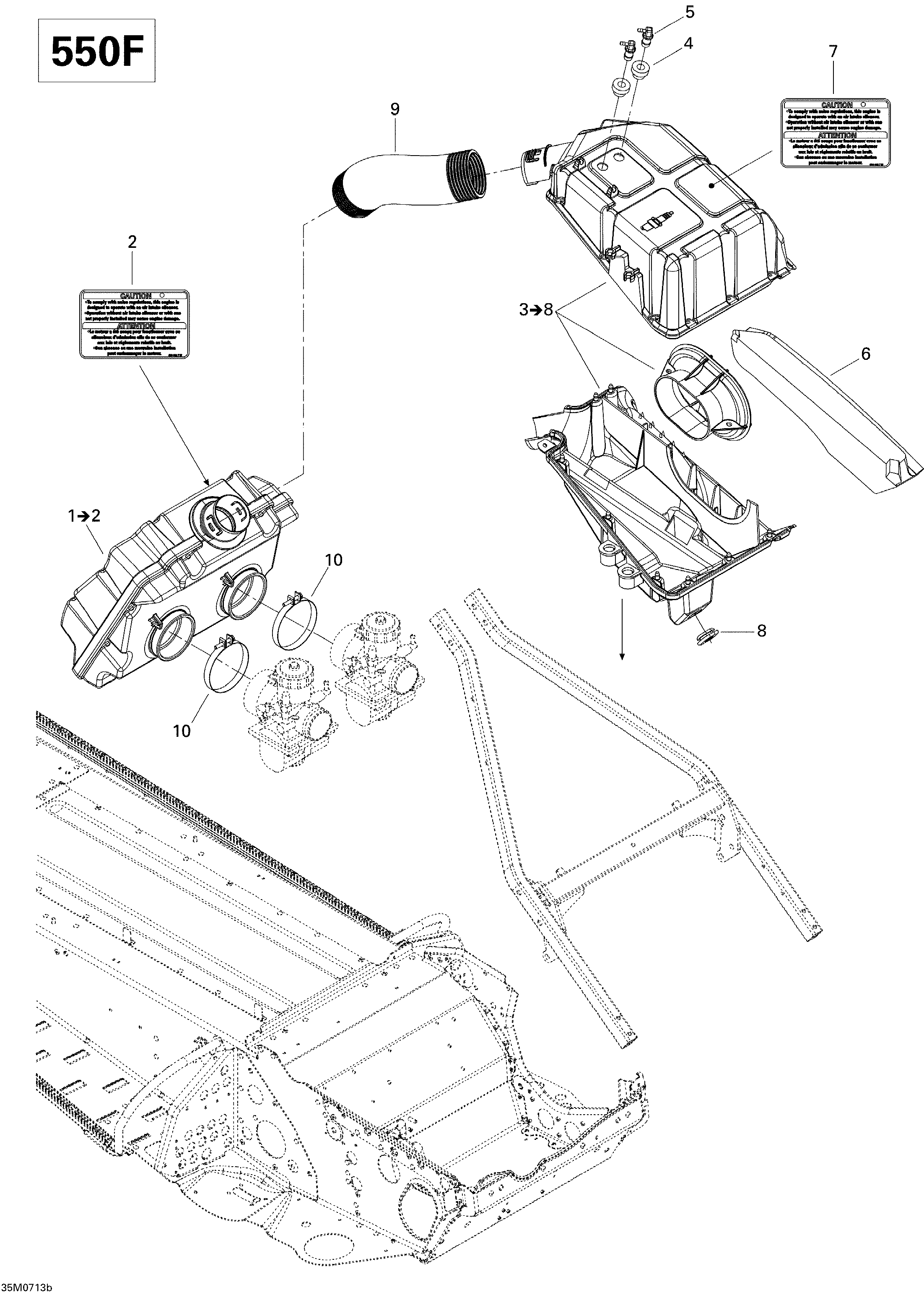

02- Air Intake System 550F для BRP Lynx Adventure 550F - 2007
-
№АртикулНазвание
-
1508000486 Primary Chamber Ass'y. Includes 1 to 2Primary Chamber Ass'y. Includes 1 to 2
-
2516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
3508000400 Secondary Chamber Ass'y. Includes 3 to 8Secondary Chamber Ass'y. Includes 3 to 8
-
4513032908 GrommetGrommet
-
5414814100 Male ConnectorMale Connector
-
6508000409 Air FilterAir Filter
-
7516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
8705000321 Oval WasherOval Washer
-
9508000406 TubeTube
-
10508000344 Gemi ClampGemi Clamp
