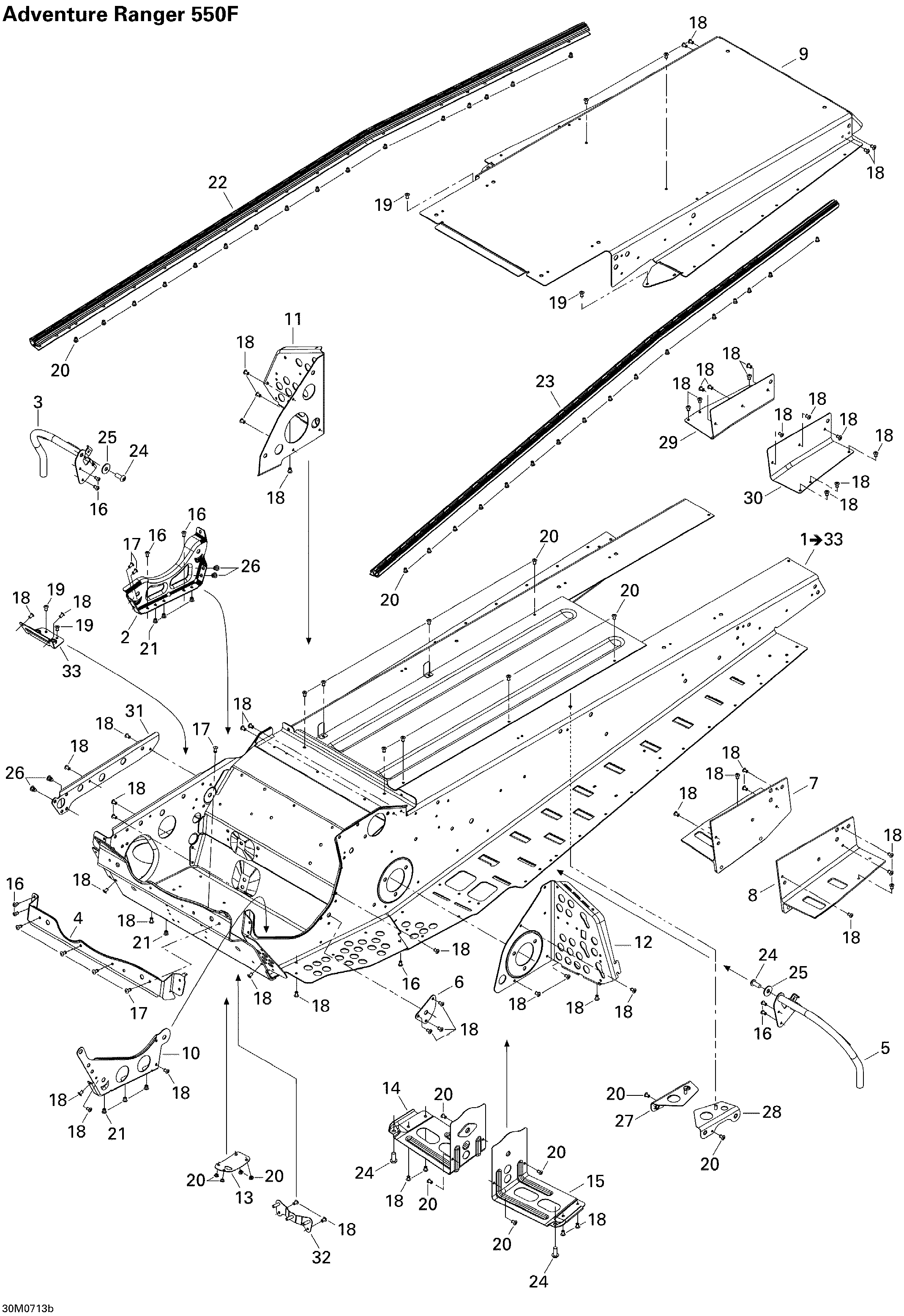

09- Frame 550F для BRP Lynx Adventure 550F - 2007
-
№АртикулНазвание
-
1415129229 Frame 156''. Includes 1 to 33Frame 156''. Includes 1 to 33
-
2518323346 Engine Support, BlackEngine Support, Black
-
3518324162 RH Toe Hold SupportRH Toe Hold Support
-
4518324220 Frontal ReinforcementFrontal Reinforcement
-
5518324163 LH Toe Hold SupportLH Toe Hold Support
-
6518323507 Outer ReinforcementOuter Reinforcement
-
7518325128 RH Slide BracketRH Slide Bracket
-
8518325129 LH Slide BracketLH Slide Bracket
-
9518325130 Frame ExtentionFrame Extention
-
10518323995 Inner Reinforcement, BlackInner Reinforcement, Black
-
11518323805 RH Footrest ReinforcementRH Footrest Reinforcement
-
12518324527 LH Footrest ReinforcementLH Footrest Reinforcement
-
13518324169 PlatePlate
-
14518325131 RH Footrest Reinforcement, BlackRH Footrest Reinforcement, Black
-
15518325133 LH Footrest Reinforcement, BlackLH Footrest Reinforcement, Black
-
16390909200 Avex RivetAvex Rivet
-
17390909100 Avex RivetAvex Rivet
-
18390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
19390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
20390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
21390910300 Rivet HenrobRivet Henrob
-
22518325135 RH RollerRH Roller
-
23518325136 LH RollerLH Roller
-
24205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
25234082410 Flat Washer 8 mmFlat Washer 8 mm
-
26293150096 RivetRivet
-
27518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
28518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
29518325298 RH Tunnel LinerRH Tunnel Liner
-
30518325299 LH Tunnel LinerLH Tunnel Liner
-
31518323328 RH Tunnel StiffenerRH Tunnel Stiffener
-
32518324599 HolderHolder
-
33518324207 Holder PlateHolder Plate
