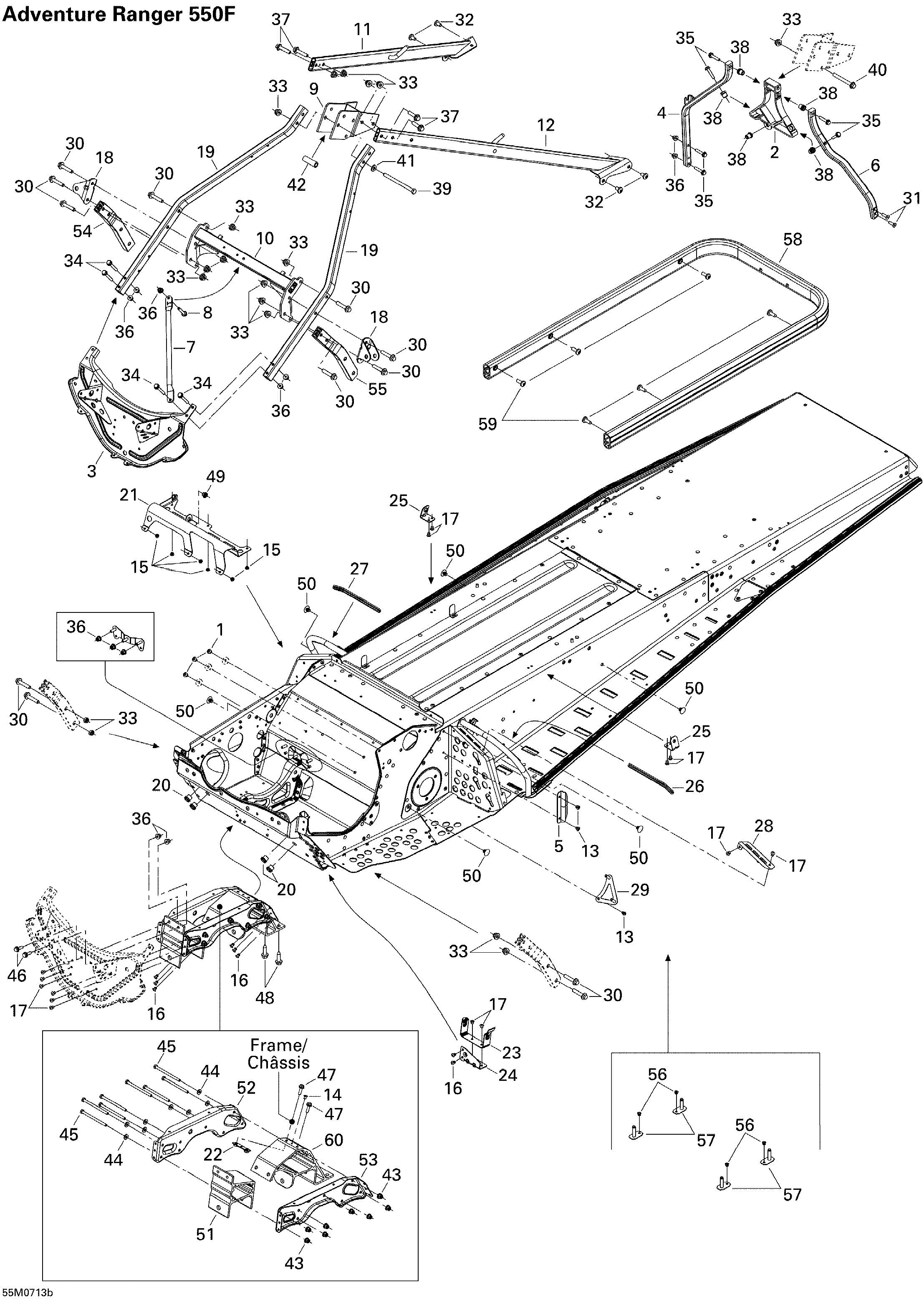

09- Frame and Components 550F для BRP Lynx Adventure 550F - 2007
-
№АртикулНазвание
-
1293150096 RivetRivet
-
2518324377 Center StiffenerCenter Stiffener
-
3518324216 Front PlateFront Plate
-
4518324397 RH Handle SupportRH Handle Support
-
5518317504 Cable ProtectorCable Protector
-
6518324376 LH Handle SupportLH Handle Support
-
7518324988 BraceBrace
-
8207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
9518324196 Bracket BlockBracket Block
-
10518325150 Upper Cross MemberUpper Cross Member
-
11518324480 RH MemberRH Member
-
12518325193 LH MemberLH Member
-
13390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
14390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
15390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
16390909100 Avex RivetAvex Rivet
-
17390909200 Avex RivetAvex Rivet
-
18518324202 Shock BracketShock Bracket
-
19518325074 Upper TubeUpper Tube
-
20293450166 InsertInsert
-
21518323532 Intake Air Admission SupportIntake Air Admission Support
-
22518324204 Holder PlateHolder Plate
-
23518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
24518324923 Guard Belt SupportGuard Belt Support
-
25518324688 Trunk BracketTrunk Bracket
-
26271000110 Protection TrimProtection Trim
-
27271000110 Protection TrimProtection Trim
-
28518323105 Plate, BlackPlate, Black
-
29518324312 Trunk Bracket, BlackTrunk Bracket, Black
-
30207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
31205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
32250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
33233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
34207664544 Flanged Hex Screw M6 X 45Flanged Hex Screw M6 X 45
-
35250000253 Hex Flange ScrewHex Flange Screw
-
36233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
37207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
38415107300 InsertInsert
-
39230081044 Hex Screw M8 X 110Hex Screw M8 X 110
-
40207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
41503189157 WasherWasher
-
42506150500 Housing BushingHousing Bushing
-
43233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
44250200039 Flat WasherFlat Washer
-
45207069044 Hex. Screw M6 X 90Hex. Screw M6 X 90
-
46207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
47207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
48250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
49293450232 InsertInsert
-
50518321954 Fastener PanelFastener Panel
-
51518324019 Front Attachment, Front SuspensionFront Attachment, Front Suspension
-
52518324014 RH Lateral ReinforcementRH Lateral Reinforcement
-
53518324017 LH Lateral ReinforcementLH Lateral Reinforcement
-
54518324214 RH Vertical TubeRH Vertical Tube
-
55518324215 LH Vertical TubeLH Vertical Tube
-
56518322791 Tank BracketTank Bracket
-
57390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
58518325188 Rear BumperRear Bumper
-
59236282084 Hex Screw M8 X 20Hex Screw M8 X 20
-
60518325202 Rear Attachment, Front SuspensionRear Attachment, Front Suspension
