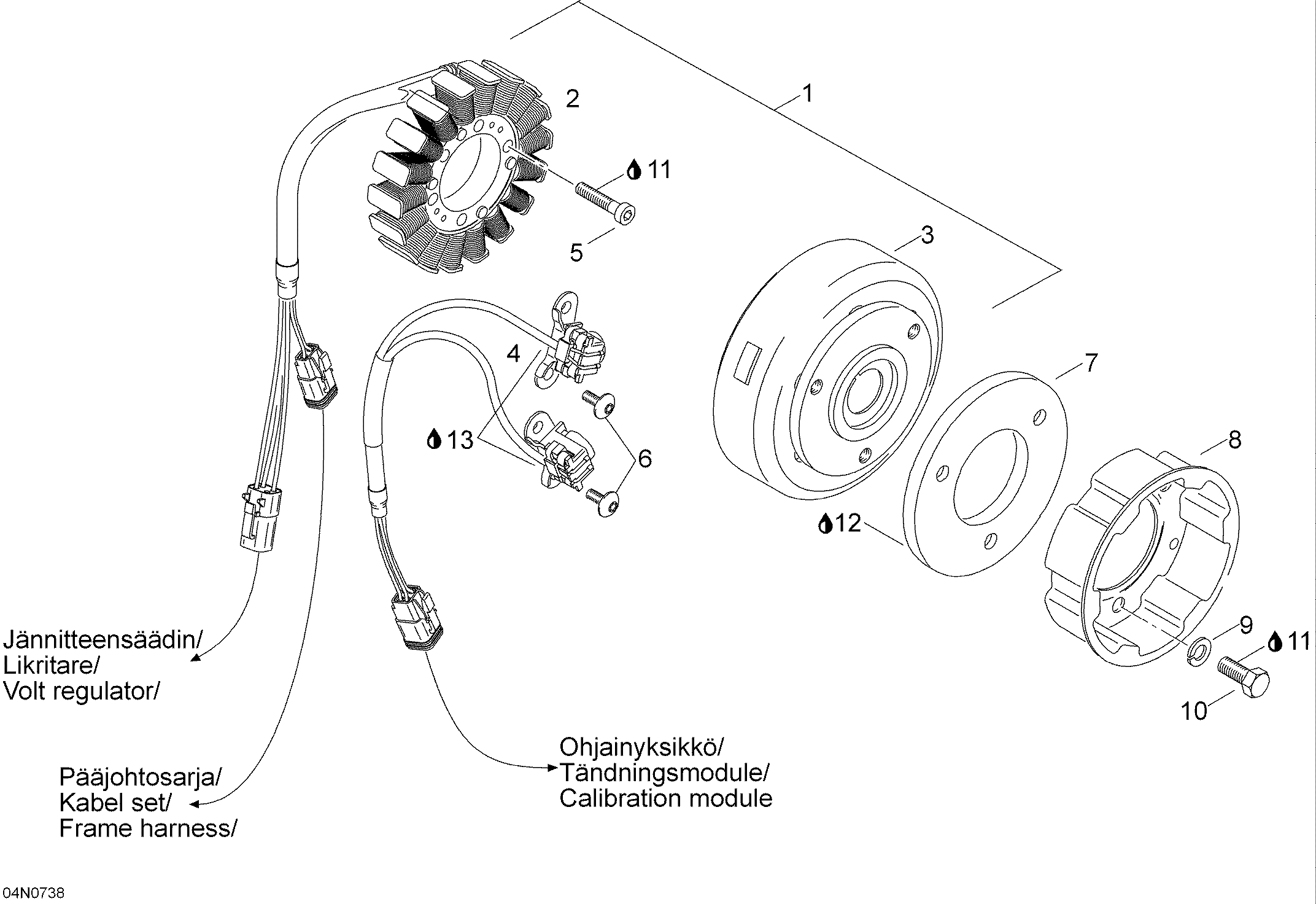

01- Ignition для BRP Lynx Rave RE 600HO - 2007
-
№АртикулНазвание
-
1420888238 Magneto generator. Includes 1 to 9. Includes 1 to 4Magneto generator. Includes 1 to 9. Includes 1 to 4
-
2420888314 Stator ass'yStator ass'y
-
3420888324 Magneto flywheelMagneto flywheel
-
4420966803 Pick up ass'yPick up ass'y
-
5420840880 Allen screw M6 x 30Allen screw M6 x 30
-
6420640321 Taptite screw M5 x 16Taptite screw M5 x 16
-
7420866756 Fly wheelFly wheel
-
8420852532 Starter cupStarter cup
-
9420827405 WasherWasher
-
10420940591 Screw M8 x 20Screw M8 x 20
-
11293800060 Loctite 243, 10mlLoctite 243, 10ml
-
12413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
13293530011 PU-glue, sikaflex 255PU-glue, sikaflex 255
