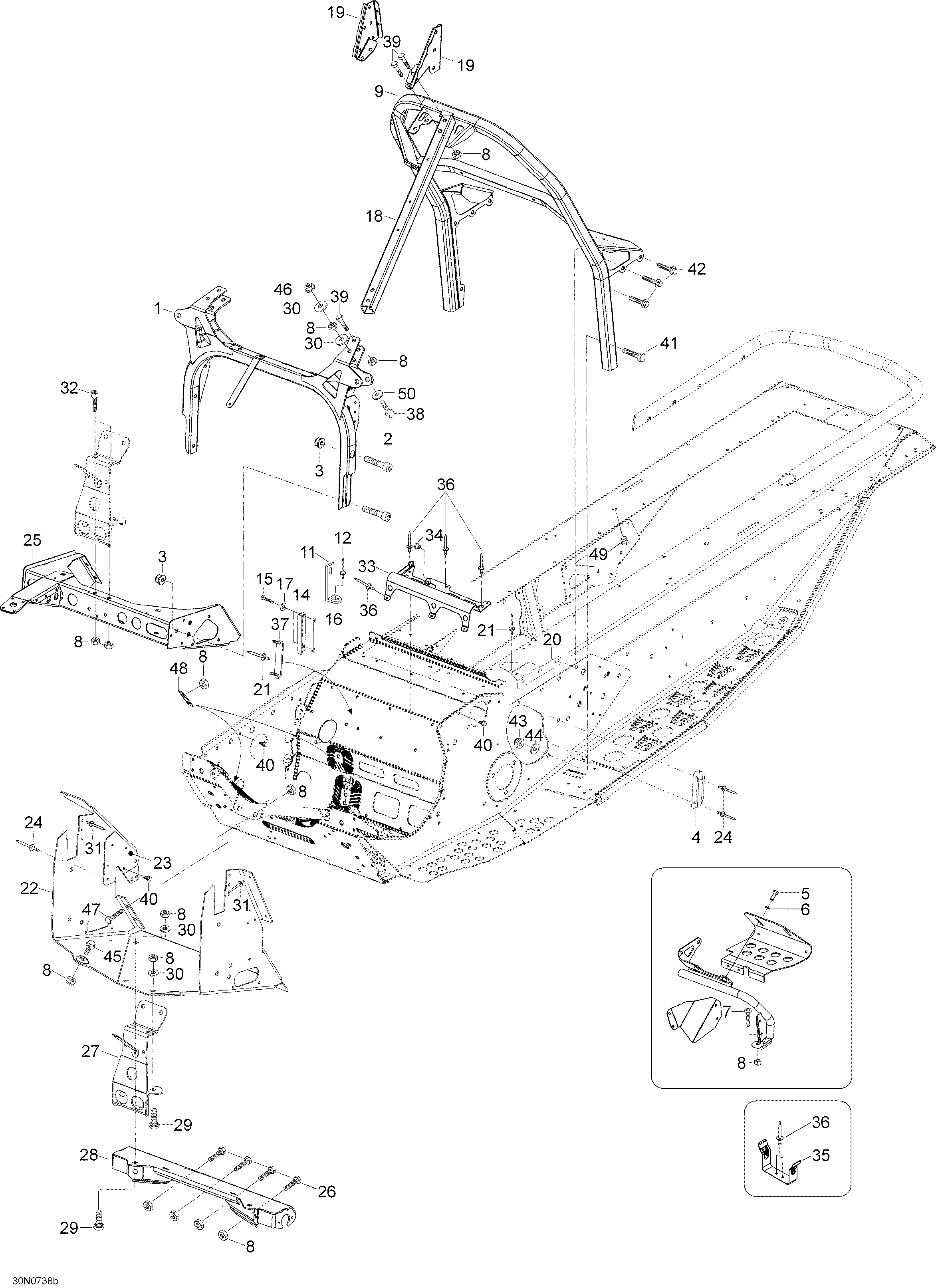

09- Frame And Components для BRP Lynx Rave RE 600HO - 2007
-
№АртикулНазвание
-
1605253944 SupportSupport
-
240810 Socket head screw M8 x 20Socket head screw M8 x 20
-
333201 Elastic flanged nut M8Elastic flanged nut M8
-
4518317504 Cable protectorCable protector
-
540381 Socket head screw M6 x 20Socket head screw M6 x 20
-
620117 WasherWasher
-
740399 Socket head screw M8 x 16Socket head screw M8 x 16
-
833011 Elastic stop nut M8Elastic stop nut M8
-
9605255138 Handle supportHandle support
-
1040867 Self tapping screw M6 x 30Self tapping screw M6 x 30
-
11605354892 BracketBracket
-
12605636005 RivetRivet
-
1340905 Plastofast-screw M6 x 16Plastofast-screw M6 x 16
-
14
-
1540030 Screw M6 x 20Screw M6 x 20
-
1633200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
-
1720009 Washer A6.4Washer A6.4
-
18605354045 Side barSide bar
-
19605353934 L.H. SupportL.H. Support
-
19605353933 R.H. SupportR.H. Support
-
20605353555 L.H. SupportL.H. Support
-
20605353556 R.H. SupportR.H. Support
-
2136108 RivetRivet
-
22605253893 Front cross memberFront cross member
-
23605454020 Support plateSupport plate
-
2436489 RivetRivet
-
25605253894 Front supportFront support
-
2640037 Screw M8 x 25Screw M8 x 25
-
27605253892 Front supportFront support
-
28605254414 SubframeSubframe
-
2940058 Locking screw M8 x 20Locking screw M8 x 20
-
3020010 Washer A8,4Washer A8,4
-
31605636005 RivetRivet
-
3240066 Socket head screw M8 x 16Socket head screw M8 x 16
-
33518323532 Air intake supportAir intake support
-
3436086 Rivet nut M6Rivet nut M6
-
35518322726 BracketBracket
-
3636083 RivetRivet
-
37605451470 Bracket, fuel pumpBracket, fuel pump
-
3840123 Screw M8 x 70Screw M8 x 70
-
3940008 Screw M8 x 45Screw M8 x 45
-
4040327 Screw M6 x 12Screw M6 x 12
-
4140336 Screw M8 x 20Screw M8 x 20
-
42605640008 Screw M8 x 16Screw M8 x 16
-
4333000 Nut M8Nut M8
-
4420004 Washer A8,4Washer A8,4
-
4540386 Screw M8 x 30Screw M8 x 30
-
4633201 Elastic flanged nut M8Elastic flanged nut M8
-
4740037 Screw M8 x 25Screw M8 x 25
-
48605452373 Support plateSupport plate
-
49518321954 PlugPlug
-
5020010 Washer A8,4Washer A8,4
