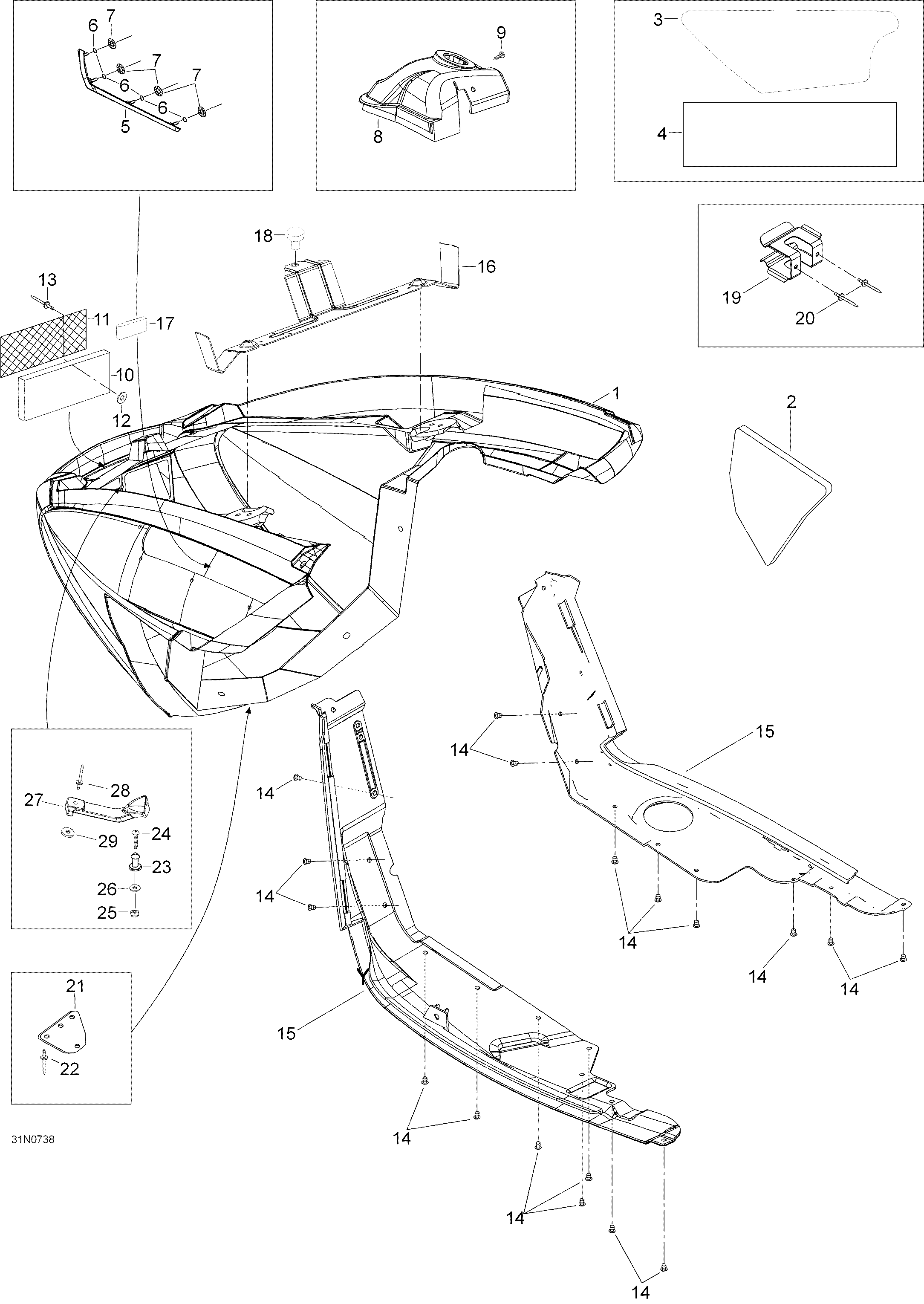

09- Bottom Pan для BRP Lynx Rave RE 600HO - 2007
-
№АртикулНазвание
-
1605355310 Front bottom pan. Includes 1 to 10Front bottom pan. Includes 1 to 10
-
2605151228 L.H. FoamL.H. Foam
-
2605151229 R.H. FoamR.H. Foam
-
3605153204 R.H. Foam (rear)R.H. Foam (rear)
-
444001 Heat protector (1000 mm x 1000 mm)Heat protector (1000 mm x 1000 mm)
-
5605253929 Intake frameIntake frame
-
648231 O-ringO-ring
-
736084 Snap ringSnap ring
-
8605353758 R.H. Shock coverR.H. Shock cover
-
8605353759 L.H. Shock coverL.H. Shock cover
-
940847 Wronic-screw 4,2 x 13Wronic-screw 4,2 x 13
-
10605354888 FoamFoam
-
11605354887 GrillGrill
-
1220009 Washer A6.4Washer A6.4
-
1336009 RivetRivet
-
1436037 RivetRivet
-
15502006702 R.H. Bottom panR.H. Bottom pan
-
15502006703 L.H. Bottom panL.H. Bottom pan
-
16605354836 SupportSupport
-
17605354889 FoamFoam
-
18514053654 Rubber bumperRubber bumper
-
19517281905 BracketBracket
-
2036108 RivetRivet
-
21605355304 Support plateSupport plate
-
2236072 RivetRivet
-
23605449087 Counter rollerCounter roller
-
2440168 Screw M4 x 25Screw M4 x 25
-
2533008 Elastic stop nut M4Elastic stop nut M4
-
2620037 Washer A4,3Washer A4,3
-
275342952 LatchLatch
-
2836037 RivetRivet
-
2920008 Washer A5,3Washer A5,3
