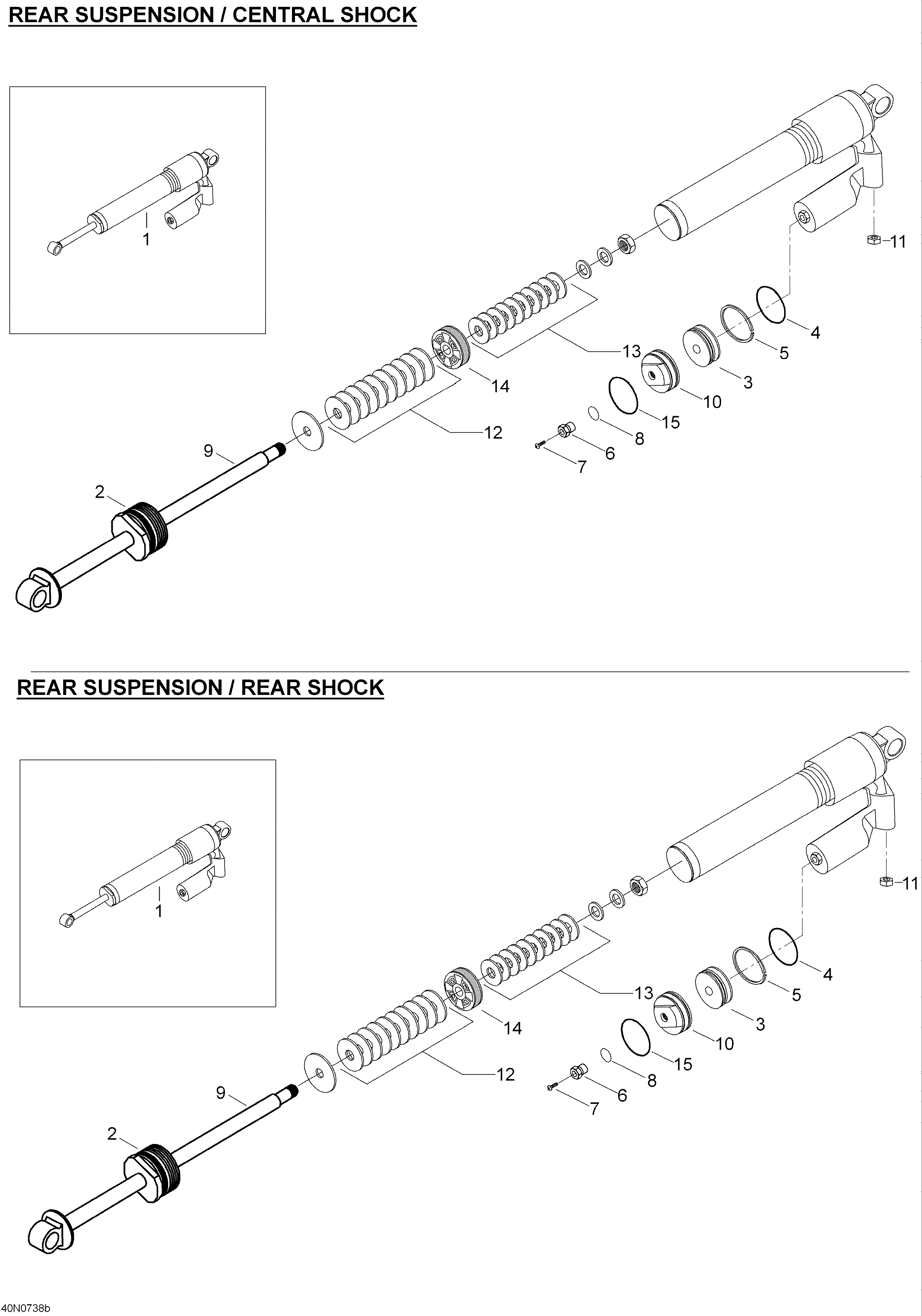

07- Take Apart Shock rear для BRP Lynx Rave RE 600HO - 2007
-
№АртикулНазвание
-
1605623024 Shock, front arm. Includes 1 to 9, 16, 17, 18Shock, front arm. Includes 1 to 9, 16, 17, 18
-
1605623026 Shock, rear arm. Includes 1 to 9, 16, 17, 18Shock, rear arm. Includes 1 to 9, 16, 17, 18
-
3505071016 Floating pistonFloating piston
-
4415093807 O-ringO-ring
-
5503189006 Piston ringPiston ring
-
6505070398 Air valve ass'yAir valve ass'y
-
7505070399 ScrewScrew
-
8505070400 O-ringO-ring
-
10619300009 Seal carrier assySeal carrier assy
-
12230029 Leaf valve 20x0.114Leaf valve 20x0.114
-
12230030 Leaf valve 20x0.152Leaf valve 20x0.152
-
12230031 Leaf valve 20x0.203Leaf valve 20x0.203
-
12230032 Leaf valve 20x0.254Leaf valve 20x0.254
-
12503189011 Leaf valve 22x0.114Leaf valve 22x0.114
-
12503189012 Leaf valve 22x0.152Leaf valve 22x0.152
-
12503189013 Leaf valve 22x0.203Leaf valve 22x0.203
-
12503189014 Leaf valve 22x0.254Leaf valve 22x0.254
-
12503189016 Leaf valve 24x0.114Leaf valve 24x0.114
-
12503189017 Leaf valve 24x0.152Leaf valve 24x0.152
-
12503189018 Leaf valve 24x0.203Leaf valve 24x0.203
-
12503189019 Leaf valve 24x0.254Leaf valve 24x0.254
-
12503189021 Leaf valve 26x0.114Leaf valve 26x0.114
-
12503189022 Leaf valve 26x0.152Leaf valve 26x0.152
-
12503189023 Leaf valve 26x0.203Leaf valve 26x0.203
-
12503189024 Leaf valve 26x0.254Leaf valve 26x0.254
-
12503189026 Leaf valve 28x0.114Leaf valve 28x0.114
-
12503189027 Leaf valve 28x0.152Leaf valve 28x0.152
-
12503189028 Leaf valve 28x0.203Leaf valve 28x0.203
-
12503189029 Leaf valve 28x0.254Leaf valve 28x0.254
-
12503189031 Leaf valve 30x0.114Leaf valve 30x0.114
-
12503189032 Leaf valve 30x0.152Leaf valve 30x0.152
-
12503189033 Leaf valve 30x0.203Leaf valve 30x0.203
-
12503189034 Leaf valve 30x0.254Leaf valve 30x0.254
-
12230082 Leaf valve 32x0.114Leaf valve 32x0.114
-
12230033 Leaf valve 34x0.114Leaf valve 34x0.114
-
12230034 Leaf valve 34x0.152Leaf valve 34x0.152
-
12230035 Leaf valve 34x0.203Leaf valve 34x0.203
-
12230036 Leaf valve 34x0.254Leaf valve 34x0.254
-
12230037 Leaf valve 36x0.114Leaf valve 36x0.114
-
12503189036 Leaf valve 36x0.152Leaf valve 36x0.152
-
12503189037 Leaf valve 36x0.203Leaf valve 36x0.203
-
12503189038 Leaf valve 36x0.254Leaf valve 36x0.254
-
12230040 Leaf valve 38x0.152Leaf valve 38x0.152
-
12230041 Leaf valve 38x0.203Leaf valve 38x0.203
-
12230042 Leaf valve 38x0.254Leaf valve 38x0.254
-
12503189039 Leaf valve 40x0.114Leaf valve 40x0.114
-
12503189040 Leaf valve 40x0.203Leaf valve 40x0.203
-
12503189041 Leaf valve 40x0.254Leaf valve 40x0.254
-
13230029 Leaf valve 20x0.114Leaf valve 20x0.114
-
13230030 Leaf valve 20x0.152Leaf valve 20x0.152
-
13230031 Leaf valve 20x0.203Leaf valve 20x0.203
-
13230032 Leaf valve 20x0.254Leaf valve 20x0.254
-
13503189011 Leaf valve 22x0.114Leaf valve 22x0.114
-
13503189012 Leaf valve 22x0.152Leaf valve 22x0.152
-
13503189013 Leaf valve 22x0.203Leaf valve 22x0.203
-
13503189014 Leaf valve 22x0.254Leaf valve 22x0.254
-
13503189016 Leaf valve 24x0.114Leaf valve 24x0.114
-
13503189017 Leaf valve 24x0.152Leaf valve 24x0.152
-
13503189018 Leaf valve 24x0.203Leaf valve 24x0.203
-
13503189019 Leaf valve 24x0.254Leaf valve 24x0.254
-
13503189020 Leaf valve 24x0.305Leaf valve 24x0.305
-
13503189021 Leaf valve 26x0.114Leaf valve 26x0.114
-
13503189022 Leaf valve 26x0.152Leaf valve 26x0.152
-
13503189023 Leaf valve 26x0.203Leaf valve 26x0.203
-
13503189024 Leaf valve 26x0.254Leaf valve 26x0.254
-
13503189026 Leaf valve 28x0.114Leaf valve 28x0.114
-
13503189027 Leaf valve 28x0.152Leaf valve 28x0.152
-
13503189028 Leaf valve 28x0.203Leaf valve 28x0.203
-
13503189029 Leaf valve 28x0.254Leaf valve 28x0.254
-
13503189031 Leaf valve 30x0.114Leaf valve 30x0.114
-
13503189032 Leaf valve 30x0.152Leaf valve 30x0.152
-
13503189033 Leaf valve 30x0.203Leaf valve 30x0.203
-
13503189034 Leaf valve 30x0.254Leaf valve 30x0.254
-
13230082 Leaf valve 32x0.114Leaf valve 32x0.114
-
13230033 Leaf valve 34x0.114Leaf valve 34x0.114
-
13230034 Leaf valve 34x0.152Leaf valve 34x0.152
-
13230035 Leaf valve 34x0.203Leaf valve 34x0.203
-
13230036 Leaf valve 34x0.254Leaf valve 34x0.254
-
13230037 Leaf valve 36x0.114Leaf valve 36x0.114
-
13503189036 Leaf valve 36x0.152Leaf valve 36x0.152
-
13503189037 Leaf valve 36x0.203Leaf valve 36x0.203
-
13503189038 Leaf valve 36x0.254Leaf valve 36x0.254
-
13230040 Leaf valve 38x0.152Leaf valve 38x0.152
-
13230041 Leaf valve 38x0.203Leaf valve 38x0.203
-
13230042 Leaf valve 38x0.254Leaf valve 38x0.254
-
13503189039 Leaf valve 40x0.114Leaf valve 40x0.114
-
13503189040 Leaf valve 40x0.203Leaf valve 40x0.203
-
13503189041 Leaf valve 40x0.254Leaf valve 40x0.254
-
14230044 Piston 1.2 mm (front arm)Piston 1.2 mm (front arm)
-
14230038 Piston 1.7 mm (rear arm)Piston 1.7 mm (rear arm)
-
14230039 Piston 2.0 mmPiston 2.0 mm
-
14230110 Piston 2.2 mmPiston 2.2 mm
-
14230043 PistonPiston
