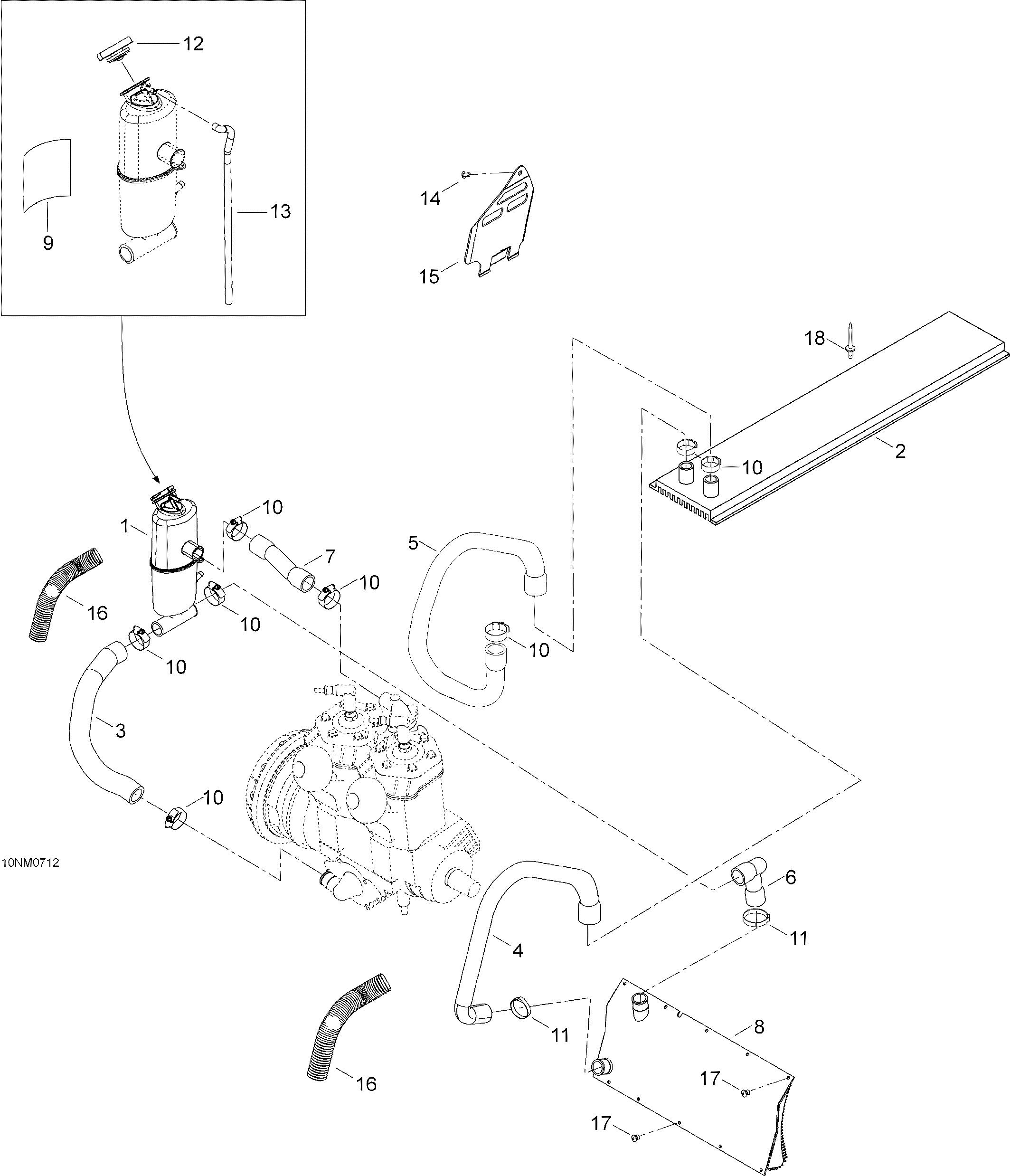

01- Cooling System для BRP Lynx Rave XT N-duro 800HO PowerT - 2007
-
№АртикулНазвание
-
1509000324 Coolant tankCoolant tank
-
2605253372 RadiatorRadiator
-
3509000135 HoseHose
-
4509000335 HoseHose
-
5509000334 HoseHose
-
6605354599 HoseHose
-
7509000129 HoseHose
-
8518323903 Radiator, frontRadiator, front
-
9509000190 Reflective sheetReflective sheet
-
10408800400 ClampClamp
-
11509000181 ClampClamp
-
12509000187 Pressure capPressure cap
-
1339038 HoseHose
-
14241151640 Hex. flanged screw K50 x 16Hex. flanged screw K50 x 16
-
15509000257 DeflectorDeflector
-
1628036 TubingTubing
-
1736489 RivetRivet
-
1836088 RivetRivet
