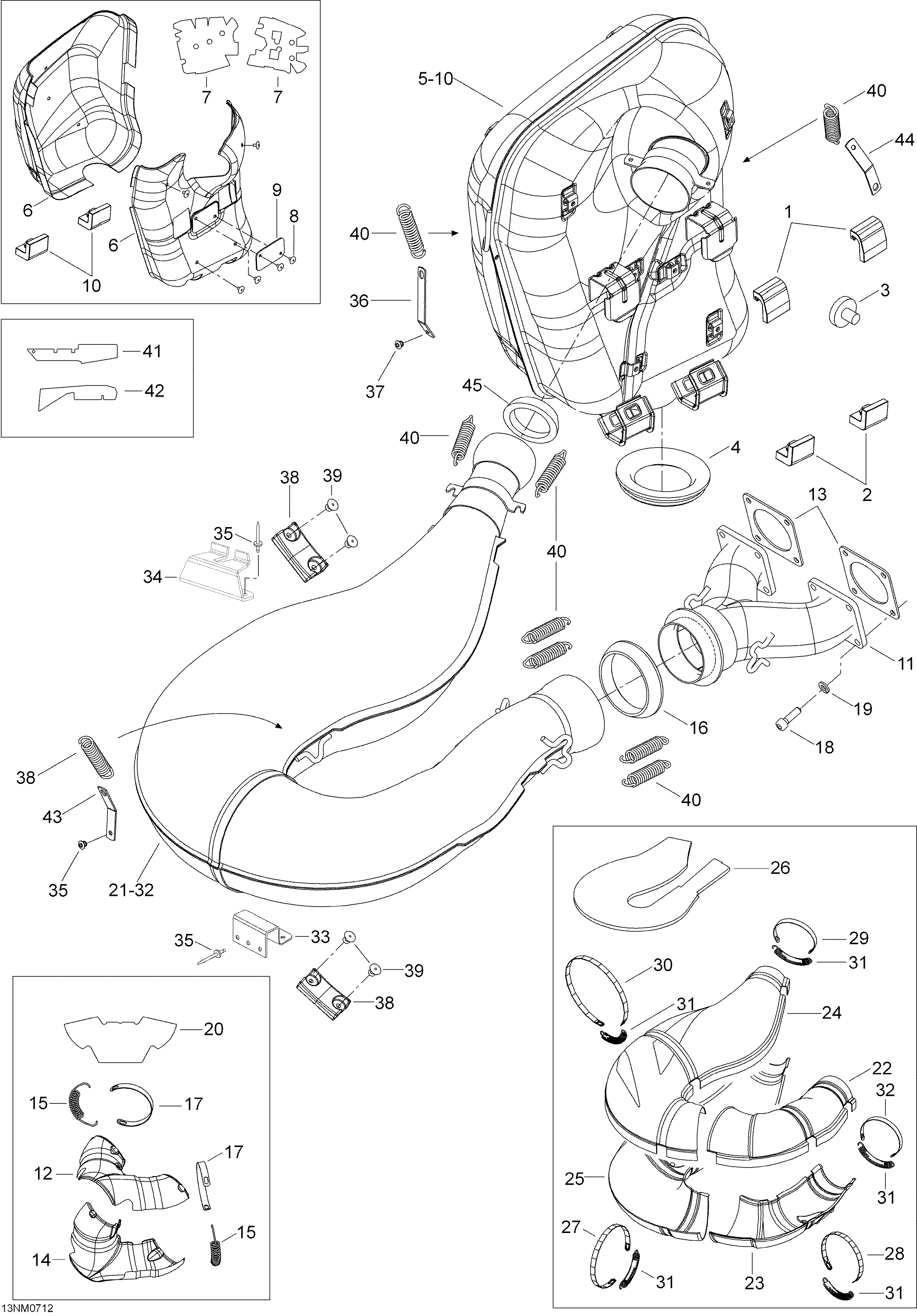

01- Exhaust System для BRP Lynx Rave XT N-duro 800HO PowerT - 2007
-
№АртикулНазвание
-
1514053372 Upper stopperUpper stopper
-
2514054223 Lower stopperLower stopper
-
3514053654 Rubber bumperRubber bumper
-
4514053394 Exhaust grommetExhaust grommet
-
5514054124 Muffler ass'y. Includes 5 to 10Muffler ass'y. Includes 5 to 10
-
6514054122 R.H. Heat shieldR.H. Heat shield
-
6514053585 L.H. Heat shieldL.H. Heat shield
-
7514053590 L.H. insulating woolL.H. insulating wool
-
7514053589 R.H. insulating woolR.H. insulating wool
-
8390910000 Pop RivetPop Rivet
-
9514053429 ReinforcementReinforcement
-
10514054223 Lower stopperLower stopper
-
11420973713 Exhaust manifoldExhaust manifold
-
12514053831 EnveloppeEnveloppe
-
13420931850 GasketGasket
-
14514053830 EnveloppeEnveloppe
-
15514053643 SpringSpring
-
16514053487 GasketGasket
-
17514053603 Retaining strapRetaining strap
-
1840052 Socket head screw M6 x 20Socket head screw M6 x 20
-
1920052 Lock washer 8mmLock washer 8mm
-
20514053284 Insulating woolInsulating wool
-
21514053950 Tuned pipe ass'y. Includes 21 to 32Tuned pipe ass'y. Includes 21 to 32
-
22514053609 Upper front half enveloppeUpper front half enveloppe
-
23514053610 Lower front half enveloppeLower front half enveloppe
-
24514053951 Upper rear half enveloppeUpper rear half enveloppe
-
25514053996 Lower rear half enveloppeLower rear half enveloppe
-
26514053584 Insulating woolInsulating wool
-
27514053437 Retaining strapRetaining strap
-
28514053500 Retaining strapRetaining strap
-
29514053534 Retaining strapRetaining strap
-
30514053535 Retaining strapRetaining strap
-
31514053643 SpringSpring
-
32514053536 Retaining strapRetaining strap
-
33605353562 BracketBracket
-
34605454111 BracketBracket
-
3536108 RivetRivet
-
36605451629 Spring supportSpring support
-
3736489 RivetRivet
-
38514053352 BumperBumper
-
3936037 RivetRivet
-
40415107100 SpringSpring
-
41514053560 Reflection sheetReflection sheet
-
42514053622 Reflection sheetReflection sheet
-
43514053725 Spring bracketSpring bracket
-
44514053393 Spring bracketSpring bracket
-
45514053812 Exhaust gasketExhaust gasket
