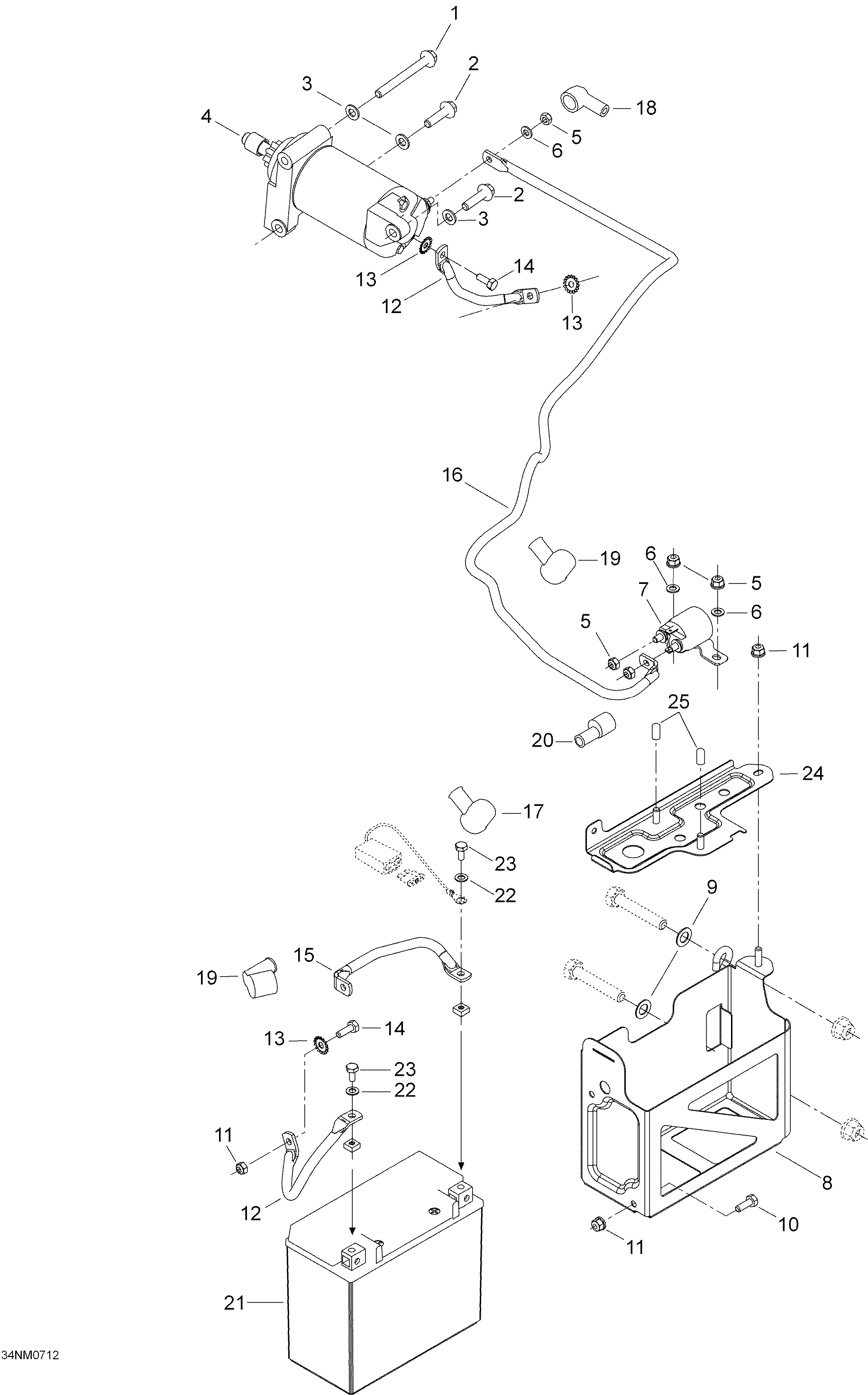

10- Electrical System для BRP Lynx Rave XT N-duro 800HO PowerT - 2007
-
№АртикулНазвание
-
1207587544 Hex. screw M8 x 75Hex. screw M8 x 75
-
2207583044 Hex. screw M8 x 30Hex. screw M8 x 30
-
3250200008 WasherWasher
-
4515176003 Electric starter assyElectric starter assy
-
533010 Elastic stop nut M6Elastic stop nut M6
-
620003 Washer A6,4Washer A6,4
-
7515176011 Relay-starterRelay-starter
-
8515176230 Battery supportBattery support
-
9605620000 Washer A10,5Washer A10,5
-
1040039 Screw M6 x 16Screw M6 x 16
-
1133200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
-
12515175749 Ground wireGround wire
-
1320017 Lock washer serrated M6Lock washer serrated M6
-
14207361644 ScrewScrew
-
15515175904 Battery wireBattery wire
-
16515175905 Battery wireBattery wire
-
17570151000 Protector capProtector cap
-
18278001771 Protector capProtector cap
-
19570064200 CapCap
-
20515175919 CapCap
-
21515175642 Battery. Includes 21 to 23Battery. Includes 21 to 23
-
22391302100 WasherWasher
-
23207161644 Screw M6x16Screw M6x16
-
24515175735 Battery strapBattery strap
-
25515176141 PlugPlug
