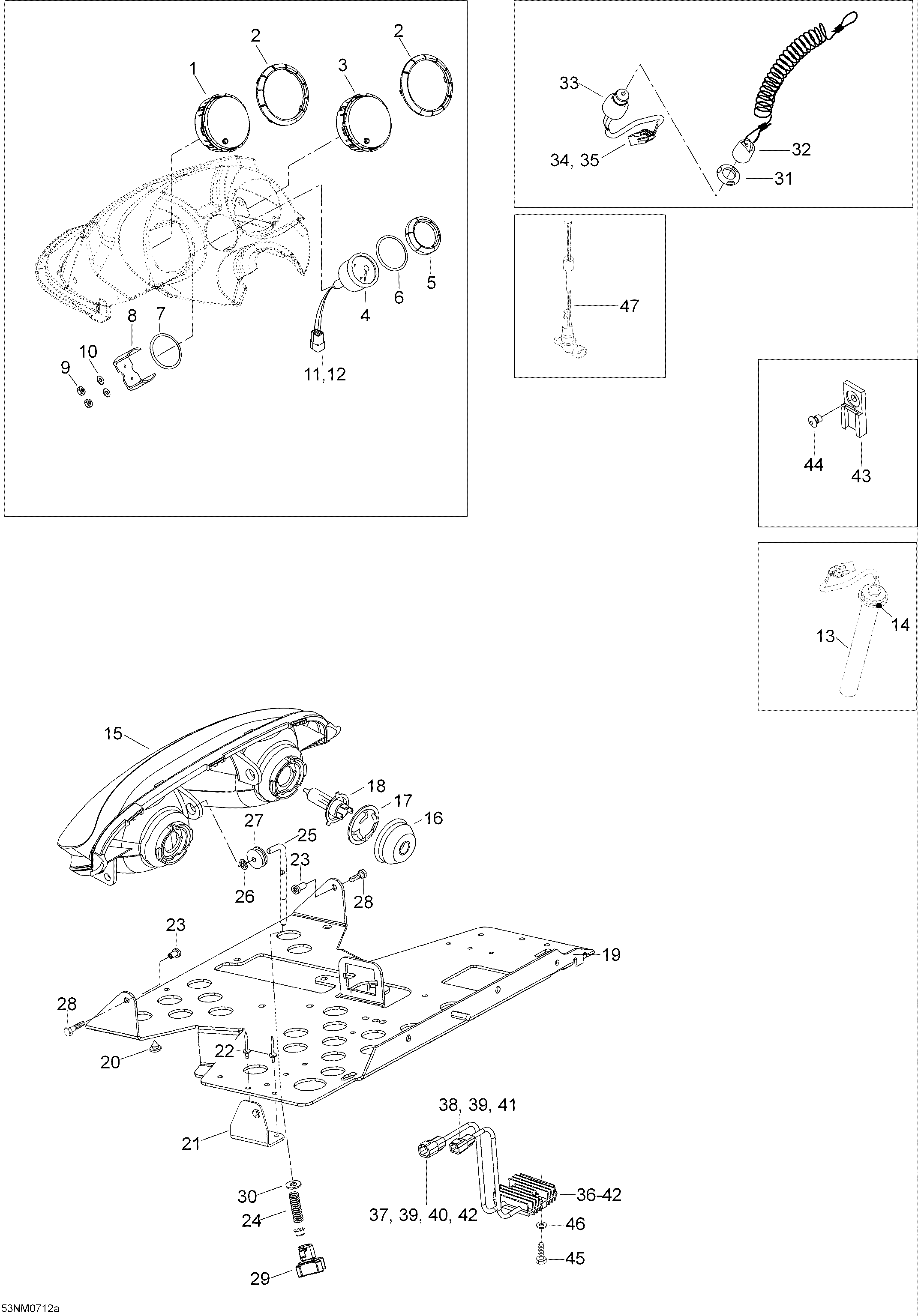

10- Electrical System для BRP Lynx Rave XT N-duro 800HO PowerT - 2007
-
№АртикулНазвание
-
1515176477 SpeedometerSpeedometer
-
2515175651 Gauge ringGauge ring
-
3515176478 TachometerTachometer
-
4515175529 Fuel gaugeFuel gauge
-
5515175711 Gauge ringGauge ring
-
6517258600 RingRing
-
7414807200 O-ringO-ring
-
8414806600 Case holderCase holder
-
933008 Elastic stop nut M4Elastic stop nut M4
-
1020037 Washer A4,3Washer A4,3
-
1142269 Male connector housing (6 circuits)Male connector housing (6 circuits)
-
12605642628 Male connectorMale connector
-
13605354768 Fuel censorFuel censor
-
14293720058 GrommetGrommet
-
15515175603 Halogen headlamp ass'y. Includes 15 to 18Halogen headlamp ass'y. Includes 15 to 18
-
16410607100 CoverCover
-
17410608300 Bulp holderBulp holder
-
18410504401 Halogen bulp 60/55WHalogen bulp 60/55W
-
19605253348 Headlamp supportHeadlamp support
-
20605452114 PluggPlugg
-
21605453984 L.H. BracketL.H. Bracket
-
21605453985 R.H. BracketR.H. Bracket
-
2236108 RivetRivet
-
23250100018 Well-nutWell-nut
-
24415100600 SpringSpring
-
25517295800 Adjuster RodAdjuster Rod
-
26732610072 Nut PushNut Push
-
27415100800 GrommetGrommet
-
2840231 Hex. screw M5 x 30Hex. screw M5 x 30
-
29515175975 KnobKnob
-
3020003 Washer A6,4Washer A6,4
-
31278000508 Plastic nutPlastic nut
-
32515176446 DESS capDESS cap
-
33515175797 DESS switchDESS switch
-
34515175232 Male connectorMale connector
-
35515175494 Male connector housingMale connector housing
-
36515175968 Voltage regulator. Includes 36 to 42Voltage regulator. Includes 36 to 42
-
37278001477 Male terminal housingMale terminal housing
-
38278001674 Male terminal housingMale terminal housing
-
39515175568 Male terminalMale terminal
-
40278001478 Male lockMale lock
-
41278001672 Male lockMale lock
-
42293000052 Sealing capSealing cap
-
43515175917 ClipClip
-
4436005 RivetRivet
-
4540031 Screw M6 x 25Screw M6 x 25
-
4620009 Washer A6.4Washer A6.4
-
47605452095 Oil sensorOil sensor
