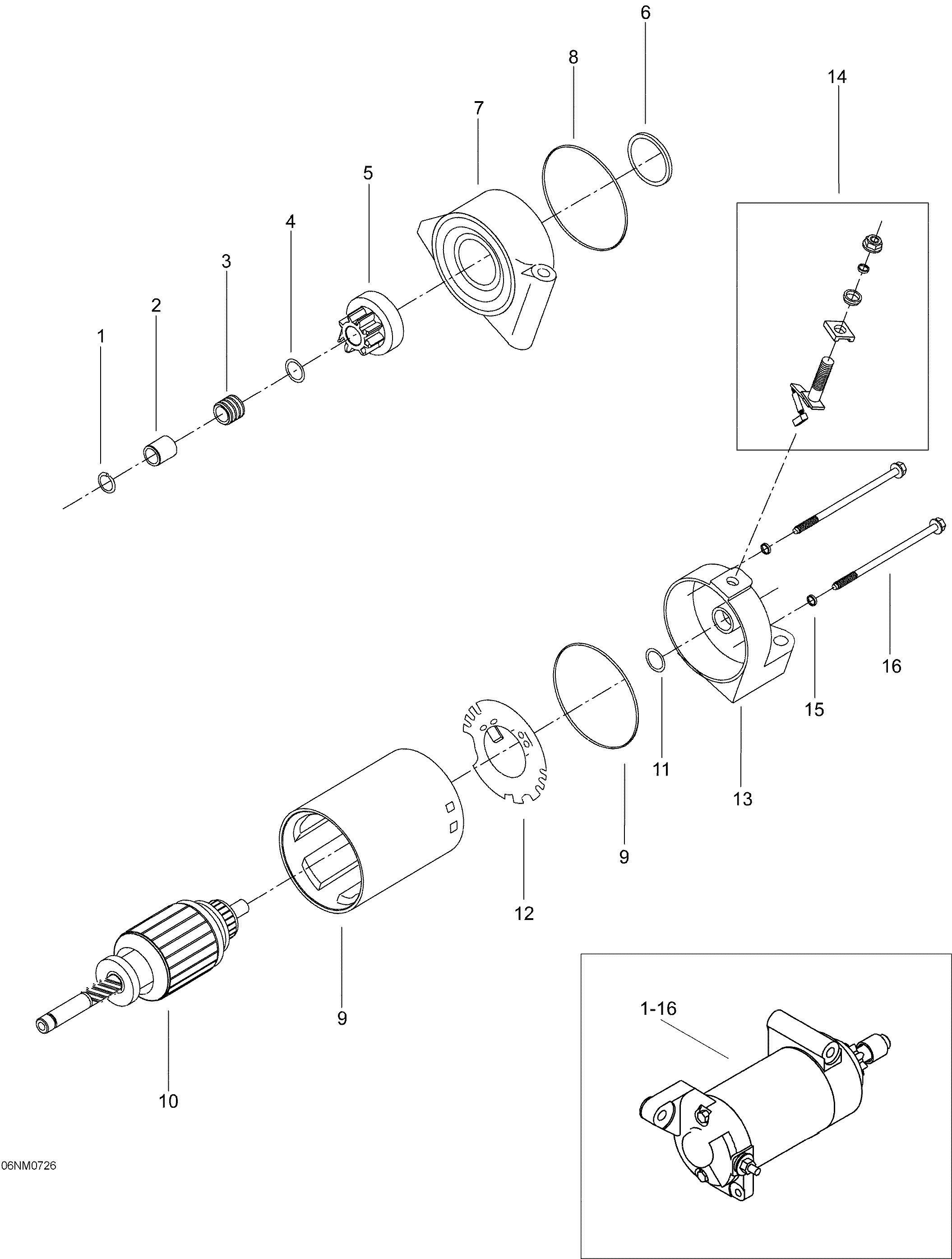

02- Electric Starter для BRP Lynx Rave Xtrim Std 550F - 2007
-
№АртикулНазвание
-
-515176103 Electric starter assy. Includes 1 to 16Electric starter assy. Includes 1 to 16
-
1410207700 CirclipCirclip
-
2515175928 NutNut
-
3410922957 SpringSpring
-
4278001105 WasherWasher
-
5410922958 ClutchClutch
-
6278000696 O-RingO-Ring
-
7410922972 Housing ass'yHousing ass'y
-
8278000695 O-RingO-Ring
-
9410213104 Yoke ass'yYoke ass'y
-
10515175785 Armature ass'yArmature ass'y
-
11410204500 Thrust washerThrust washer
-
12515175786 Holder ass'yHolder ass'y
-
13410922973 Housing ass'yHousing ass'y
-
14410212100 Brush kitBrush kit
-
15278000060 O-RingO-Ring
-
16410922961 BoltBolt
