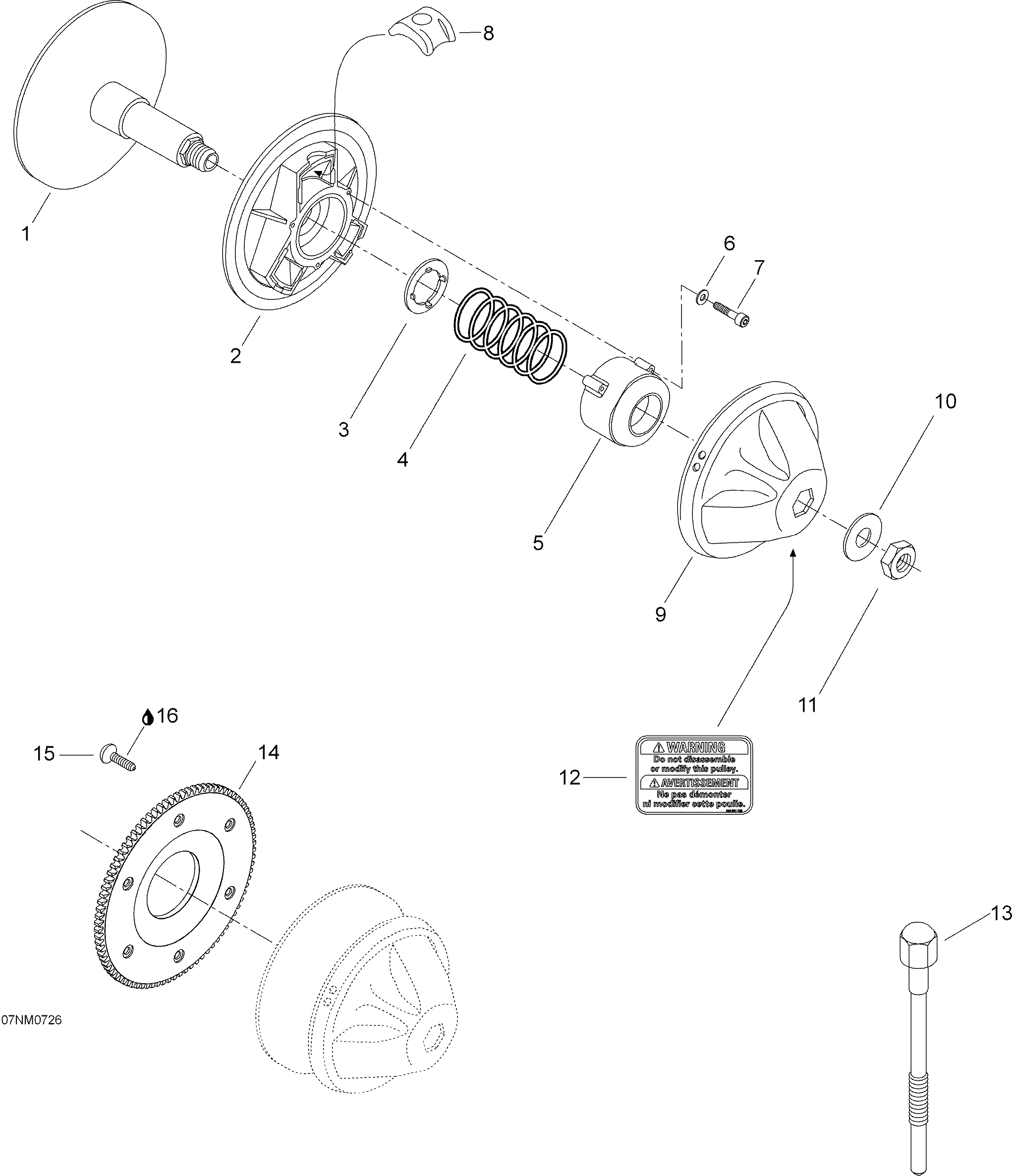

05- Drive Pulley для BRP Lynx Rave Xtrim Std 550F - 2007
-
№АртикулНазвание
-
1415128975 Fixed half pulleyFixed half pulley
-
2417126692 Sliding half pulleySliding half pulley
-
3417126694 Guide washerGuide washer
-
4415128608 Spring, violet violet/yellow)Spring, violet violet/yellow)
-
5415128602 Spring coverSpring cover
-
6420245370 WasherWasher
-
7415128606 Screw M6 x 35Screw M6 x 35
-
8415128932 Centrifugal blockCentrifugal block
-
9415128609 Domed cupDomed cup
-
10415128610 WasherWasher
-
11417118300 Locking nutLocking nut
-
12516001726 Security labelSecurity label
-
13529031400 Puller inner halfPuller inner half
-
14417222833 Ring gearRing gear
-
15236281684 Screw M8 x 16Screw M8 x 16
-
16293800005 Loctite 271, 10mlLoctite 271, 10ml
