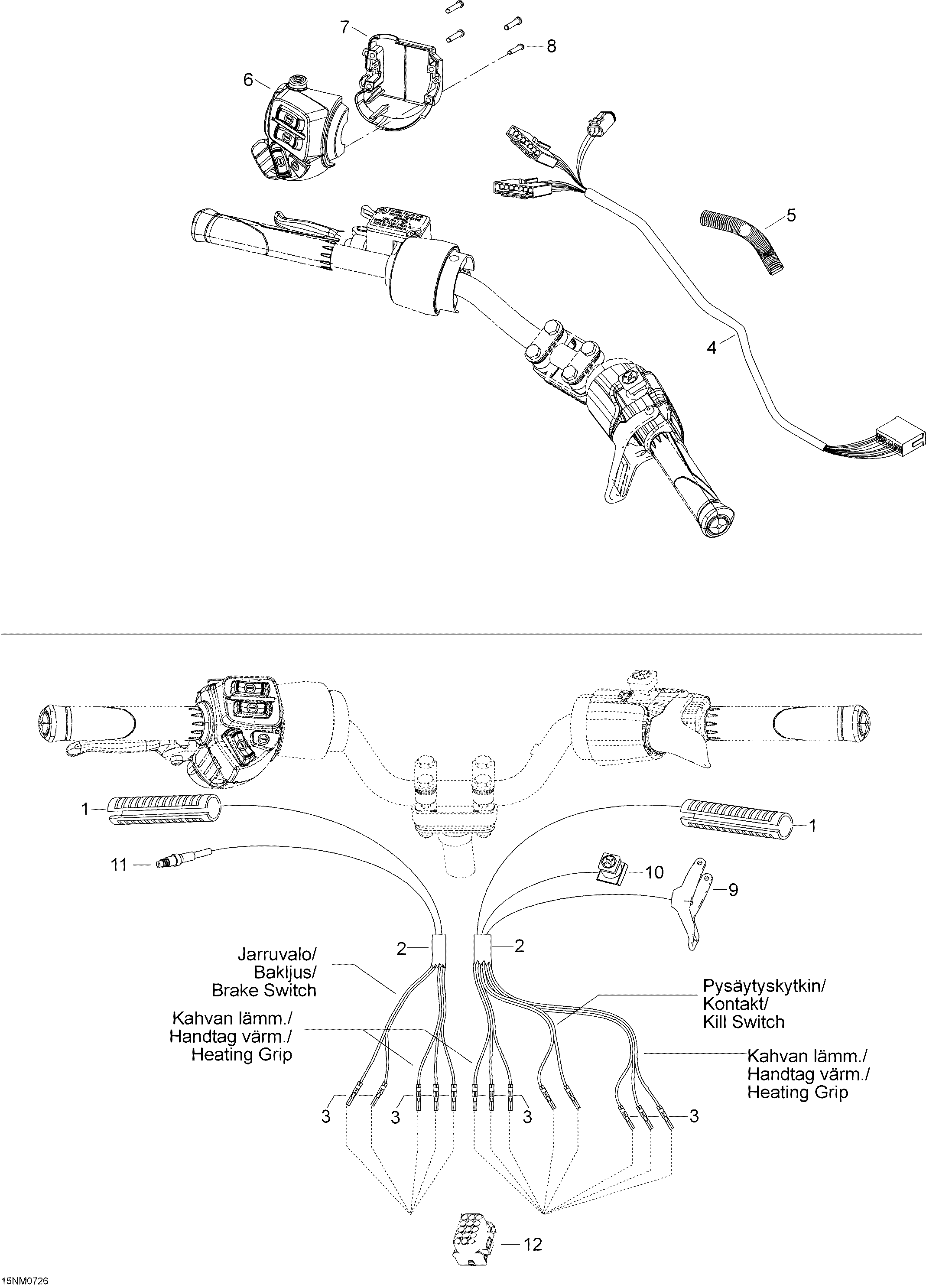

10- Steering Harness для BRP Lynx Rave Xtrim Std 550F - 2007
-
№АртикулНазвание
-
1515175657 Heating elementHeating element
-
239023 TubingTubing
-
3605642628 ConnectorConnector
-
4605353266 Harness ass'y, handle barHarness ass'y, handle bar
-
5605353992 TubingTubing
-
6515176187 Switch housingSwitch housing
-
7515175926 Switch housing plateSwitch housing plate
-
840903 Plastofast-screw 3.5 x 25Plastofast-screw 3.5 x 25
-
9512059624 Throttle handleThrottle handle
-
10515175410 Kill switchKill switch
-
11507032366 MicroswitchMicroswitch
-
1242617 male connector housing 815 circuits)male connector housing 815 circuits)
