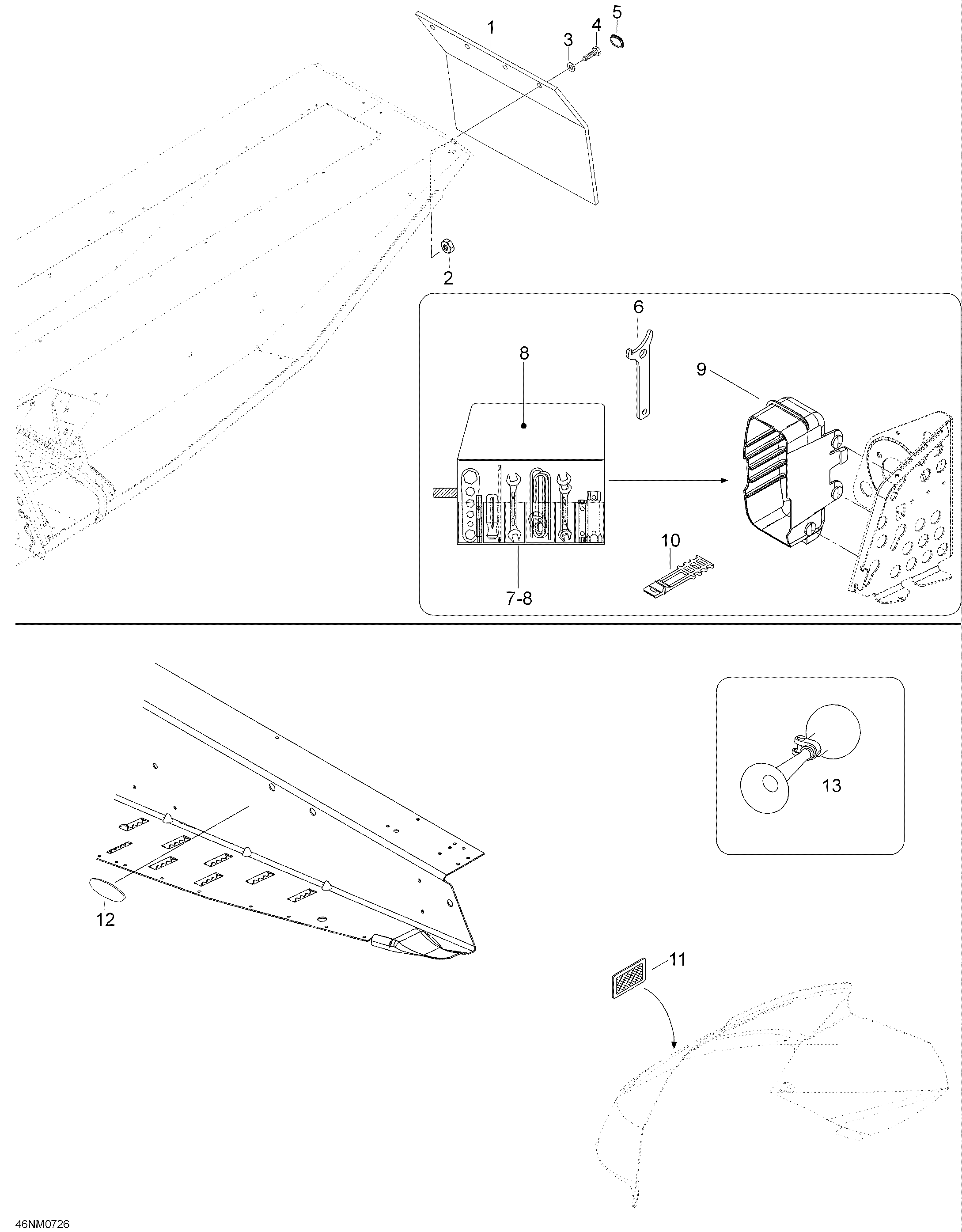

09- Utilities для BRP Lynx Rave Xtrim Std 550F - 2007
-
№АртикулНазвание
-
15246131 Snow guardSnow guard
-
233200 Elastic flanged nut M6Elastic flanged nut M6
-
320009 Washer A6.4Washer A6.4
-
440078 Hex. screw M6 x 22Hex. screw M6 x 22
-
5415073300 CapCap
-
6529032900 Wrench adjusterWrench adjuster
-
7529035596 Tool set. Includes 7 to 8Tool set. Includes 7 to 8
-
8520000047 Tool bagTool bag
-
9520000322 TrunkTrunk
-
10570069700 LatchLatch
-
1121118 Reflector, BrightReflector, Bright
-
12605621001 Reflector, yellowReflector, yellow
-
1321003 HornHorn
