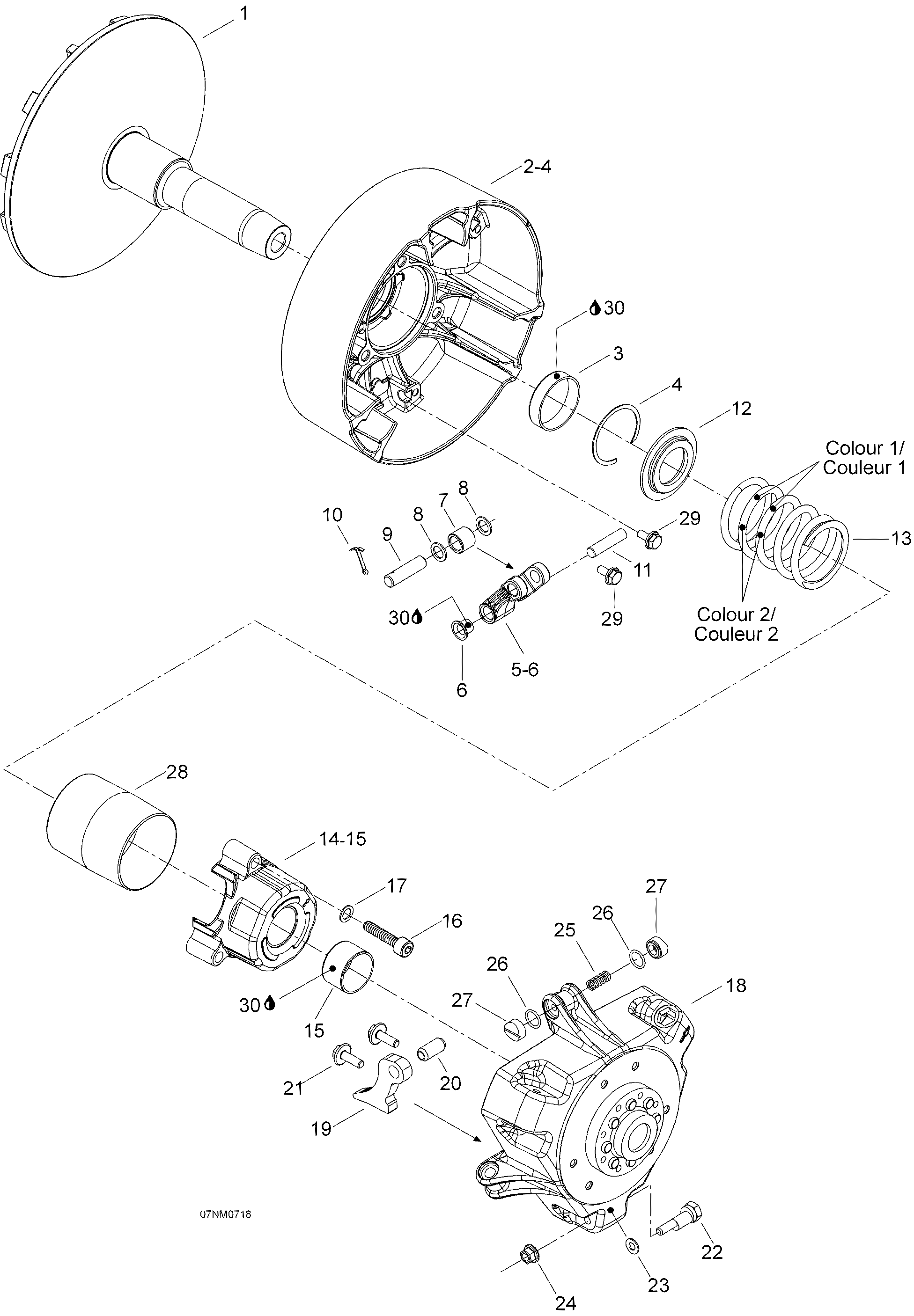

05- Pulley System 2 для BRP Lynx YETI TUV V-1300 - 2007
-
№АртикулНазвание
-
1605254692 Fixed flangeFixed flange
-
2417222646 Sliding flange ass'y. Includes 2 to 4Sliding flange ass'y. Includes 2 to 4
-
3417222758 Bushing outer halfBushing outer half
-
4293370037 CirclipCirclip
-
5605354281 Lever assy. Includes 5 to 6Lever assy. Includes 5 to 6
-
6417004305 Flange bushingFlange bushing
-
7417222762 Roller ass'yRoller ass'y
-
8417004302 Thrust washerThrust washer
-
9417004308 PinPin
-
10417222813 Cotter pinCotter pin
-
11605354282 Lever pinLever pin
-
12605355180 Spring seatSpring seat
-
13414993000 Spring (red/yellow)Spring (red/yellow)
-
14417222746 Spring cover ass'y. Includes 14 to 15Spring cover ass'y. Includes 14 to 15
-
15417009204 Spring cover bushingSpring cover bushing
-
16205084044 Socket head screw M6 x 40Socket head screw M6 x 40
-
17250200009 WasherWasher
-
18417222923 Gouvernor cup ass'yGouvernor cup ass'y
-
19605254091 Ramp 607Ramp 607
-
20250400009 Pin Rolled M10x22Pin Rolled M10x22
-
21207162044 Hex. locking screw M6 x 20Hex. locking screw M6 x 20
-
22605354708 Calibration screwCalibration screw
-
2320032 WasherWasher
-
2433026 Locking nut M6Locking nut M6
-
25417005700 SpringSpring
-
26732401030 O-RingO-Ring
-
27417222362 Shoe sliderShoe slider
-
28417009205 ProtectorProtector
-
29250000182 Forming screw M6 x 16Forming screw M6 x 16
-
30413703100 Loctite 609, 10mlLoctite 609, 10ml
