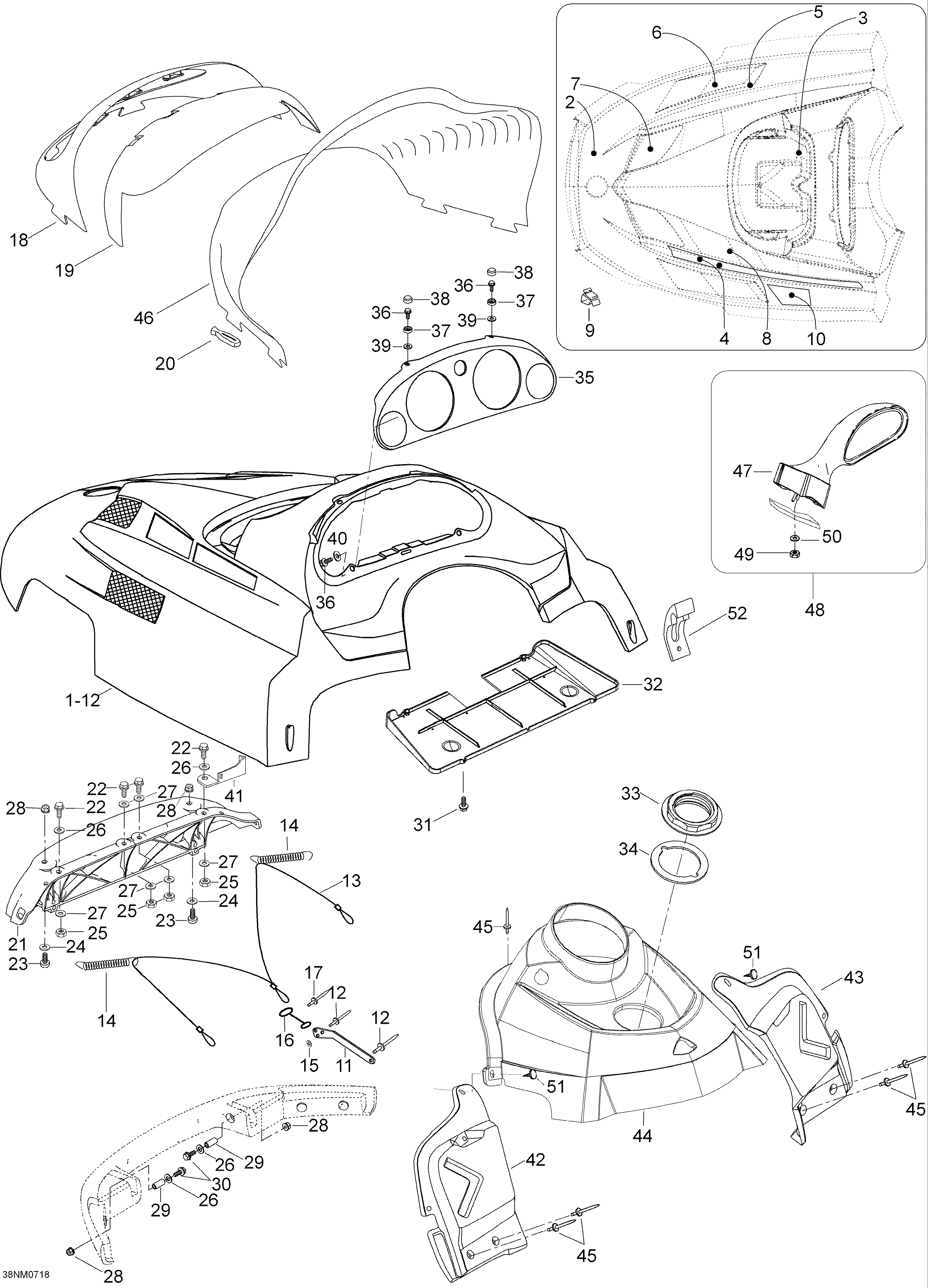

09- Hood And Console для BRP Lynx YETI TUV V-1300 - 2007
-
№АртикулНазвание
-
1605154513 Hood. pre ass'y, Jet Black. Sisaltaa osat 1-12Hood. pre ass'y, Jet Black. Sisaltaa osat 1-12
-
2605350919 Heat protectorHeat protector
-
3605350920 Heat protectorHeat protector
-
4605350921 Heat protectorHeat protector
-
5605350922 Heat protectorHeat protector
-
6605350923 L.H. GrillL.H. Grill
-
6605350924 R.H. GrillR.H. Grill
-
7605350925 L.H. GrillL.H. Grill
-
7605350926 R.H. GrillR.H. Grill
-
8605350927 Grill, rearGrill, rear
-
9414227300 PidikejousiPidikejousi
-
10605350929 Heat protectorHeat protector
-
11605452657 BracketBracket
-
1236002 RivetRivet
-
13605351372 Retainer cableRetainer cable
-
145442675 SpringSpring
-
1520001 Washer A4,3Washer A4,3
-
165442870 BracketBracket
-
1736097 RivetRivet
-
18517302158 Moulding Head LampMoulding Head Lamp
-
19517302003 Windshiel supportWindshiel support
-
20570023800 Windshield latchWindshield latch
-
21517302631 Hinge halfHinge half
-
2240030 Hex. screw screw M6 x 20Hex. screw screw M6 x 20
-
2340381 Socket head screw M6 x 20Socket head screw M6 x 20
-
2420117 Washer 6mmWasher 6mm
-
2533010 Elastic stop nut M6Elastic stop nut M6
-
2620003 Washer A 6,4Washer A 6,4
-
2720009 Washer A 6,4Washer A 6,4
-
2833200 Elastic flanged nut M6Elastic flanged nut M6
-
29517302179 BushingBushing
-
3040003 Hex. screw M6 x 35Hex. screw M6 x 35
-
31243141640 Screw M4,8 x 16Screw M4,8 x 16
-
32605151831 Air intake plateAir intake plate
-
33517302043 Plastic nutPlastic nut
-
345447116 GasketGasket
-
35605354134 Indicator supportIndicator support
-
3640611 Screw, Plastofast 4 x 10Screw, Plastofast 4 x 10
-
37414436800 CirclipCirclip
-
38414436900 CapCap
-
3920037 Washer A4,3Washer A4,3
-
4020039 Washer 4mmWasher 4mm
-
41605351463 L.H. support, hoodL.H. support, hood
-
41605351464 R.H. support, hoodR.H. support, hood
-
42605251384 L.H. ConsoleL.H. Console
-
43605251385 R.H. ConsoleR.H. Console
-
44605251387 Center consoleCenter console
-
4536037 RivetRivet
-
46605152073 WindscreenWindscreen
-
47605450857 R.H. /L:H MirrorR.H. /L:H Mirror
-
48605450857 Mirror kitMirror kit
-
4933008 Elastic stop nut M4Elastic stop nut M4
-
5020037 Washer A4,3Washer A4,3
-
51414644300 DartDart
-
52517302152 LatchLatch
