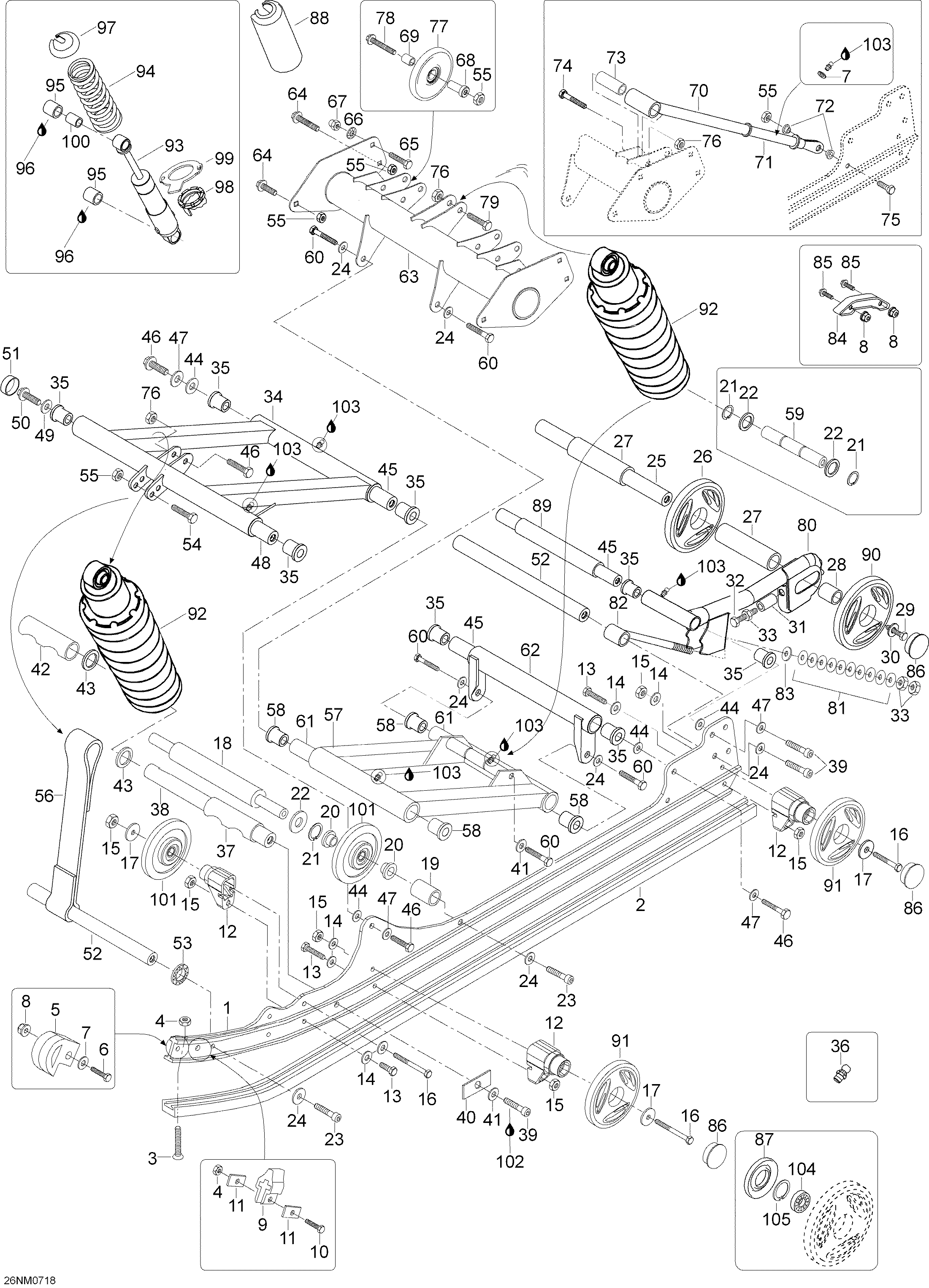

08- Rear Suspension для BRP Lynx YETI TUV V-1300 - 2007
-
№АртикулНазвание
-
1605253573 RunnerRunner
-
25347724 Slider shoeSlider shoe
-
340059 Socket head screw M6 x 60Socket head screw M6 x 60
-
433010 Elastic stop nut M6Elastic stop nut M6
-
5605348954 Runner protectorRunner protector
-
640031 Hex. screw M6 x 25Hex. screw M6 x 25
-
720003 Washer 6mmWasher 6mm
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
95448216 Rubber bumperRubber bumper
-
1040032 Hex. screw M6 x 30Hex. screw M6 x 30
-
11548470 PlatePlate
-
12605450182 SupportSupport
-
1340037 Hex. screw M8 x 25Hex. screw M8 x 25
-
1420104 Washer hardened M8Washer hardened M8
-
1533011 Elastic stop nut M8Elastic stop nut M8
-
1640089 Hex. screw M8 x 75Hex. screw M8 x 75
-
17503183100 Washer M8 hardenedWasher M8 hardened
-
185347950 ShaftShaft
-
195447951 SleeveSleeve
-
20503189534 InsertInsert
-
2131007 CirclipCirclip
-
2231091 ShimShim
-
2340134 Socket head screw M10 x 45Socket head screw M10 x 45
-
2420105 Washer M10 hardenedWasher M10 hardened
-
255343284 ShaftShaft
-
26503189478 Support wheel 165Support wheel 165
-
275444096 SleeveSleeve
-
285444098 SleeveSleeve
-
2940050 Hex. screw M10 x 35Hex. screw M10 x 35
-
30503183300 Washer 10mm, hardenedWasher 10mm, hardened
-
31605452332 SleeveSleeve
-
3240239 Hex. screw M10 x 100Hex. screw M10 x 100
-
3333004 Nut M10Nut M10
-
345147672 Front armFront arm
-
3531024 Slide bearingSlide bearing
-
3634011 Grease nippleGrease nipple
-
375347718 LimiterLimiter
-
385347726 ShaftShaft
-
3940536 Socket head screw M10 x 45Socket head screw M10 x 45
-
405447940 Support plateSupport plate
-
4120068 Lock washerLock washer
-
425346649 LimiterLimiter
-
4331013 ShimShim
-
4420116 WasherWasher
-
455347713 ShaftShaft
-
4640016 Hex. screw M10 x 45Hex. screw M10 x 45
-
47512056700 Lock washerLock washer
-
48605348606 ShaftShaft
-
4920090 WasherWasher
-
5040243 Hex. screw M12 x 60Hex. screw M12 x 60
-
515448025 CapCap
-
525347717 ShaftShaft
-
534181158 Pikavarmistin Starlock 20x36,5Pikavarmistin Starlock 20x36,5
-
5440008 Hex. screw M8 x 45Hex. screw M8 x 45
-
5533011 Elastic stop nut M8Elastic stop nut M8
-
565447919 Stopper strapStopper strap
-
57605349313 Rear armRear arm
-
5831027 Slide bearingSlide bearing
-
59605451897 ShaftShaft
-
6040014 Hex. screw M10 x 40Hex. screw M10 x 40
-
615346865 ShaftShaft
-
625347668 ArmArm
-
63605249988 Upper armUpper arm
-
6440058 Lock screw M8 x 20Lock screw M8 x 20
-
6540056 Lock screw M8 x 16Lock screw M8 x 16
-
6620072 Lock washerLock washer
-
6733044 Nut M8Nut M8
-
68605450372 SleeveSleeve
-
69605450373 SleeveSleeve
-
705347851 Poker tubePoker tube
-
715347852 Poker shaftPoker shaft
-
725447853 Slide bearingSlide bearing
-
735447848 SleeveSleeve
-
7440011 Hex. screw M8 x 60Hex. screw M8 x 60
-
75222003565 Hex. screw M10 x 35Hex. screw M10 x 35
-
7633012 Eastic stop nut M10Eastic stop nut M10
-
7746027 Idler wheelIdler wheel
-
7840088 Hex. screw M8 x 70Hex. screw M8 x 70
-
7940017 Hex. screw M10 x 50Hex. screw M10 x 50
-
80605251782 R.H. ExtensionR.H. Extension
-
80605251781 L.H. ExtensionL.H. Extension
-
8125004 Spring washerSpring washer
-
825447373 Eye bolt adjusterEye bolt adjuster
-
8320011 Washer 10mm, hardenedWasher 10mm, hardened
-
845343191 Slide pieceSlide piece
-
8540064 Locking screw M6 x 40Locking screw M6 x 40
-
86570063600 ProtectorProtector
-
87572089000 Labyrinth sealLabyrinth seal
-
885346754 Shock protectorShock protector
-
89605448429 SleeveSleeve
-
90503190856 Idler wheel 165/Full MoonIdler wheel 165/Full Moon
-
91503190796 Idler wheel 139/Full MoonIdler wheel 139/Full Moon
-
92605353530 Shock ass'y, front arm. Includes 92 to 98Shock ass'y, front arm. Includes 92 to 98
-
92605350647 Shock ass'y, rear arm. Includes 92 to 99Shock ass'y, rear arm. Includes 92 to 99
-
9323232 Shock, front armShock, front arm
-
9323152 Shock, rear armShock, rear arm
-
9425065 Spring, front armSpring, front arm
-
94230079 Spring, rear armSpring, rear arm
-
9531094 Slide bearingSlide bearing
-
96320006 Glue. LoctiteGlue. Loctite
-
97230076 Spring seatSpring seat
-
98230078 CamCam
-
99605348748 Adjusting camAdjusting cam
-
1005446652 SleeveSleeve
-
101503190798 Idler wheel 139/blackIdler wheel 139/black
-
102293800060 Loctite 243, 10mlLoctite 243, 10ml
-
103293550033 Synthetic greaseSynthetic grease
-
104503190795 Ball bearingBall bearing
-
105371901700 CirclipCirclip
