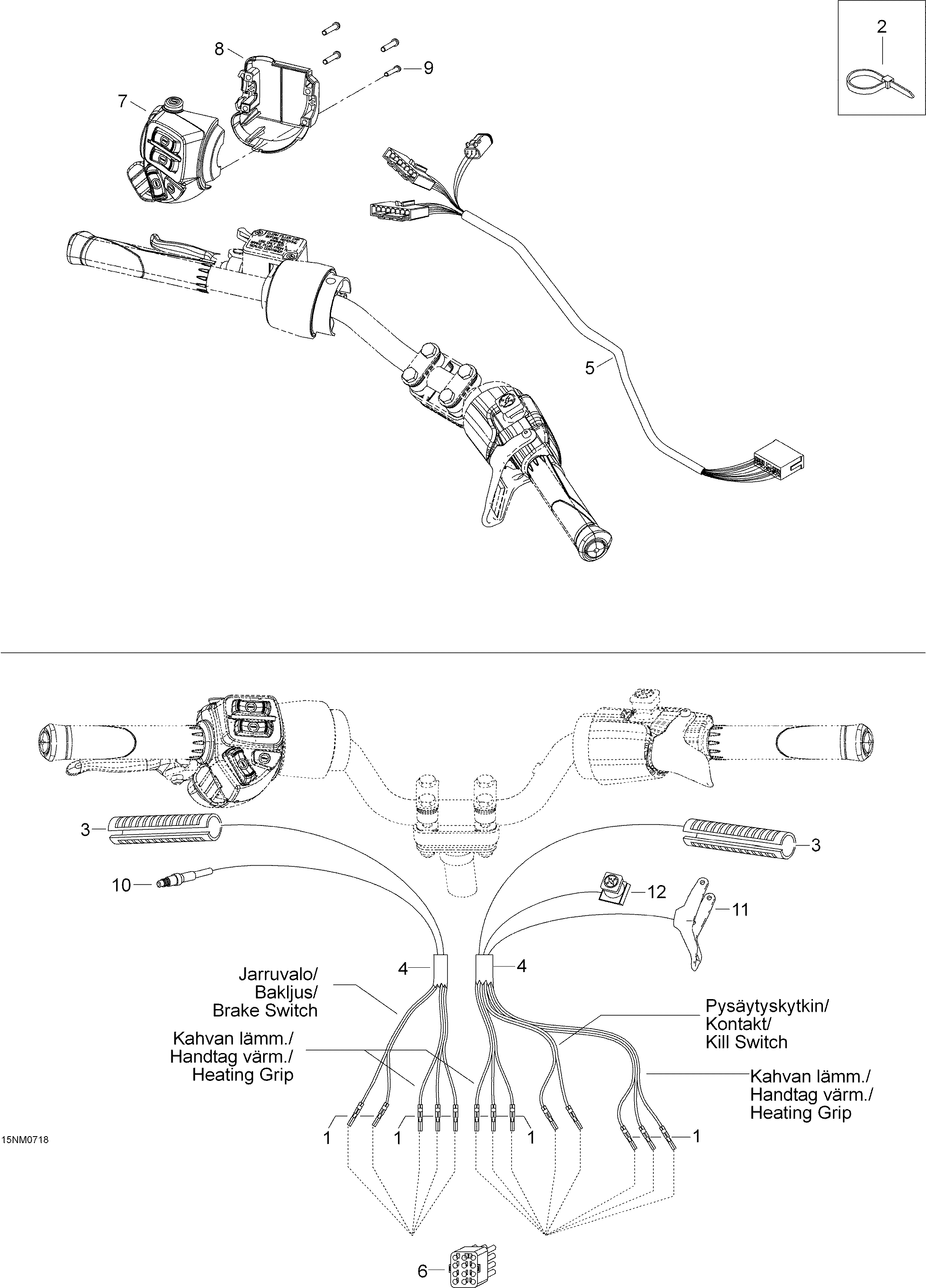

10- Steering harness для BRP Lynx YETI TUV V-1300 - 2007
-
№АртикулНазвание
-
1605642628 Male connectorMale connector
-
227100 Tie-rap (363 mm)Tie-rap (363 mm)
-
227026 Tie-rapTie-rap
-
3515175664 Heater grip elementHeater grip element
-
439023 TubingTubing
-
5605353265 Harness ass'yHarness ass'y
-
-605354651 Main harness ass'y. Not shown in pictureMain harness ass'y. Not shown in picture
-
642617 Male terminal housing (15 circuits)Male terminal housing (15 circuits)
-
7515176015 Switch housingSwitch housing
-
8515175926 CoverCover
-
940903 Plastofast-screw 3.5 x 25Plastofast-screw 3.5 x 25
-
10507032366 Microswitch ass'yMicroswitch ass'y
-
11512059107 Throttle handleThrottle handle
-
12515175410 Emergency switchEmergency switch
