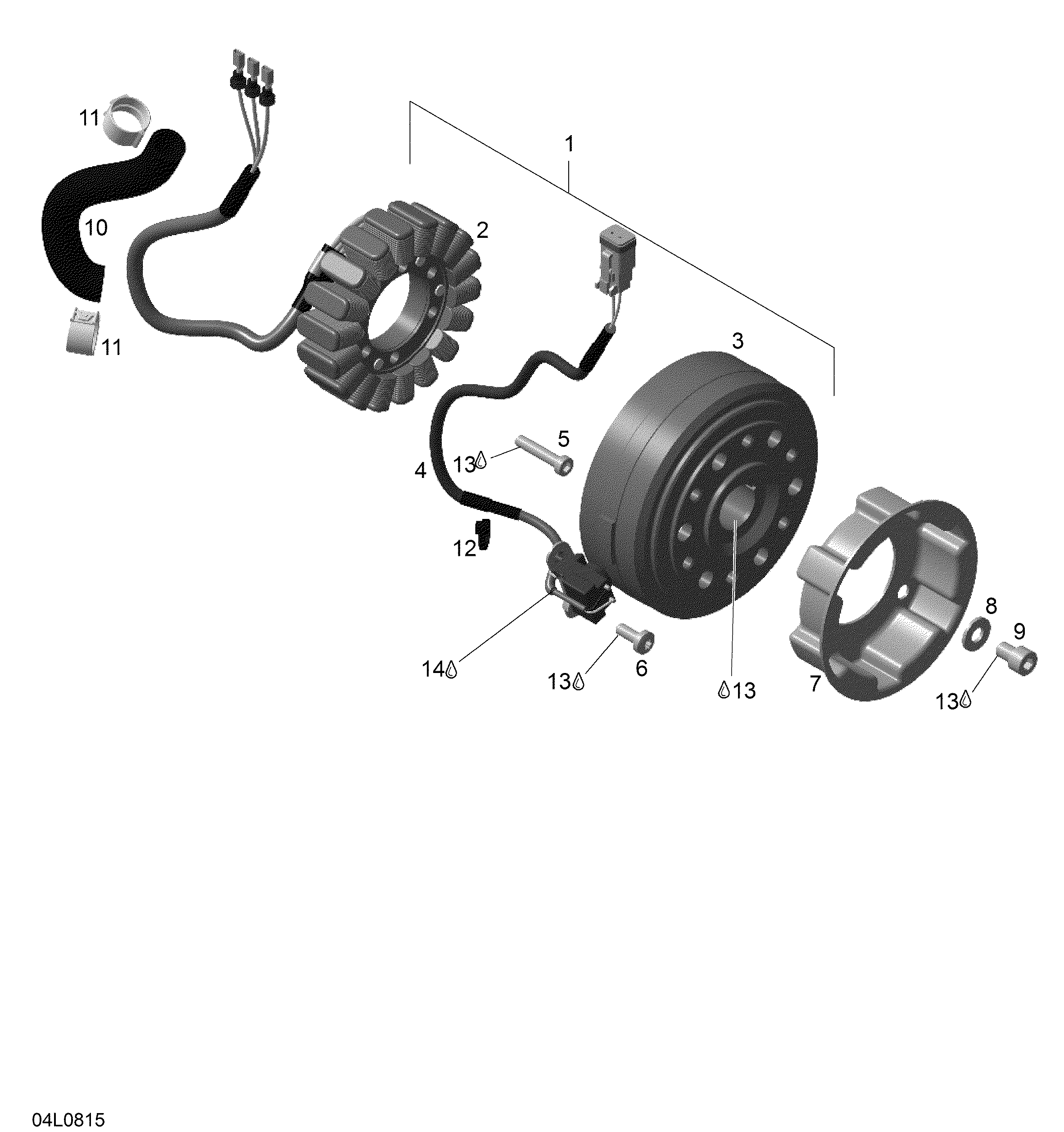

03- Magneto для BRP Lynx Rave RS 600 - 2008
-
№АртикулНазвание
-
1420891542 Magneto 12V/290W. Includes 1 to 4Magneto 12V/290W. Includes 1 to 4
-
2420889907 Stator assyStator assy
-
3420665725 Magneto flywheelMagneto flywheel
-
4420966838 Pick up assyPick up assy
-
5420840886 Allen screw M6 x 30Allen screw M6 x 30
-
6420640321 Taptite screw M6 x 16Taptite screw M6 x 16
-
7420852590 Starter cupStarter cup
-
8420827405 Lock washerLock washer
-
9420841520 Allen screw M8 x 12Allen screw M8 x 12
-
10420460871 TubeTube
-
11420960896 ClampClamp
-
12293750002 TiewrapTiewrap
-
13293800060 Loctite 243, 10mlLoctite 243, 10ml
-
14293800081 Loctite 5910Loctite 5910
