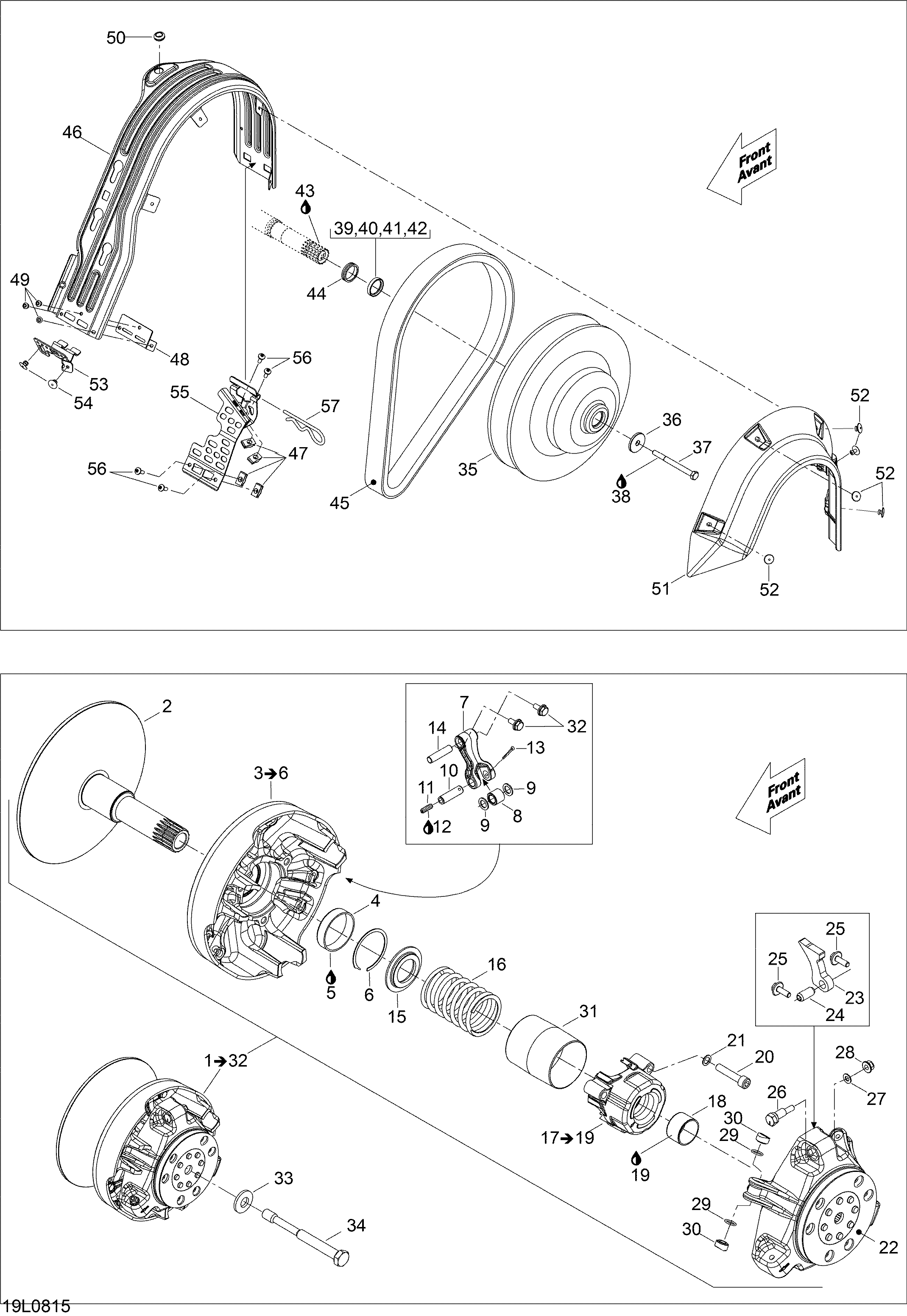

05- Pulley System для BRP Lynx Rave RS 600 - 2008
-
№АртикулНазвание
-
2417223012 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222971 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'yLever Ass'y
-
8417222947 RollerRoller
-
9417004302 Stopper WasherStopper Washer
-
10417222595 Threaded Pin, M6Threaded Pin, M6
-
11206262599 Socket Set ScrewSocket Set Screw
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
13732958001 Cotter PinCotter Pin
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16417223050 Spring, Brown/BrownSpring, Brown/Brown
-
17417007500 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222622 Governor Cup Ass'yGovernor Cup Ass'y
-
23417223049 Ramp 438Ramp 438
-
24250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
25250000059 Hex. Flanged Scew M6 X 18Hex. Flanged Scew M6 X 18
-
26417222955 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
29732401030 O-RingO-Ring
-
30417223021 Slider ShoeSlider Shoe
-
31417009205 GuardGuard
-
32250000182 Serrated Hex. Flanged Screw M6 X 16Serrated Hex. Flanged Screw M6 X 16
-
33250200006 Spring Washer 14 mmSpring Washer 14 mm
-
34417120000 Drive Pulley BoltDrive Pulley Bolt
-
35417127104 Driven Pulley Ass'yDriven Pulley Ass'y
-
36517302322 Strength WasherStrength Washer
-
37207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
38293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
39417300252 Spacer 2,0 mm.Spacer 2,0 mm.
-
40417300265 Spacer 1,0 mm.Spacer 1,0 mm.
-
41504149100 Spacer 5,25 mm.Spacer 5,25 mm.
-
42504112000 ShimShim
-
43293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
44417126302 SpacerSpacer
-
45417300288 Drive BeltDrive Belt
-
46417300353 Belt GuardBelt Guard
-
48417300335 ReinforcementReinforcement
-
49390909200 Avex RivetAvex Rivet
-
50517303974 GrommetGrommet
-
51417300356 Side ProtectorSide Protector
-
52293150103 Pop RivetPop Rivet
-
53417300358 Belt Guard BracketBelt Guard Bracket
-
54293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
55417300368 Belt Guard BracketBelt Guard Bracket
-
56250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
57114045200 Hair PinHair Pin
-
47250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
