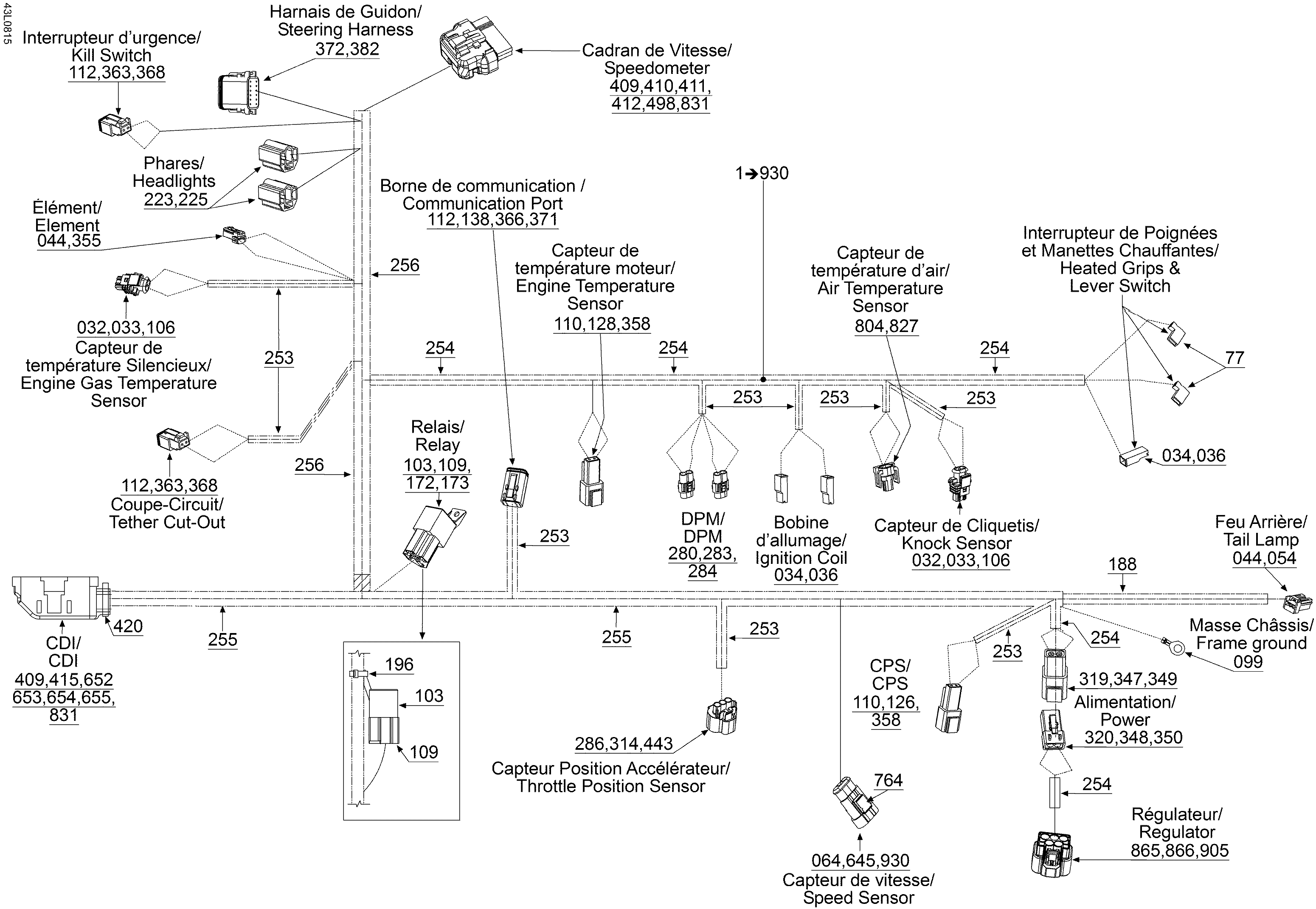

10- Main Harness для BRP Lynx Rave RS 600 - 2008
-
№АртикулНазвание
-
1515176623 Frame Wiring Harness Ass'y. Includes 1 to 930Frame Wiring Harness Ass'y. Includes 1 to 930
-
032278000998 Female TerminalFemale Terminal
-
033278000999 Wire SealWire Seal
-
034409010100 Female TerminalFemale Terminal
-
036409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
044515175231 Female TerminalFemale Terminal
-
054515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
064710000568 HousingHousing
-
077409010300 Female TerminalFemale Terminal
-
099278000992 Open BarrelOpen Barrel
-
103410113200 RelayRelay
-
106278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
109409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
126409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
138293000052 Sealing CapSealing Cap
-
172561503100 Female TerminalFemale Terminal
-
173561503100 Female TerminalFemale Terminal
-
188409902000 Tubing, 12 mmTubing, 12 mm
-
196293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
223515175320 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
280409012100 Female TerminalFemale Terminal
-
284409012300 SealSeal
-
286409012300 SealSeal
-
314515176176 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
319515175568 Male TerminalMale Terminal
-
320515175567 Female TerminalFemale Terminal
-
347278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
348278001673 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
349278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
350278001671 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
355515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
358515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
363515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
366515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
368515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
371515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
372515175679 Female Lock, 12 CircuitsFemale Lock, 12 Circuits
-
382515175704 Female Terminal Housing, 12 CircuitsFemale Terminal Housing, 12 Circuits
-
409515175812 PlugPlug
-
410515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
411515175802 Retainer BlockRetainer Block
-
412515175803 Wire SealWire Seal
-
415515175806 Female TerminalFemale Terminal
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
443710000335 Female TerminalFemale Terminal
-
498710000399 Female HousingFemale Housing
-
645515176164 Male TerminalMale Terminal
-
652515176221 Female HousingFemale Housing
-
653515176222 Wire SealWire Seal
-
654515176223 Female Terminal Housing, 36 CircuitsFemale Terminal Housing, 36 Circuits
-
655515176224 Terminal SupportTerminal Support
-
764710000992 ClipClip
-
804515176523 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
827710001119 Female TerminalFemale Terminal
-
831710001131 Female TerminalFemale Terminal
-
865515176530 ConnectorConnector
-
866515176531 TerminalTerminal
-
916515176594 SealSeal
-
930515176621 Wire SealWire Seal
