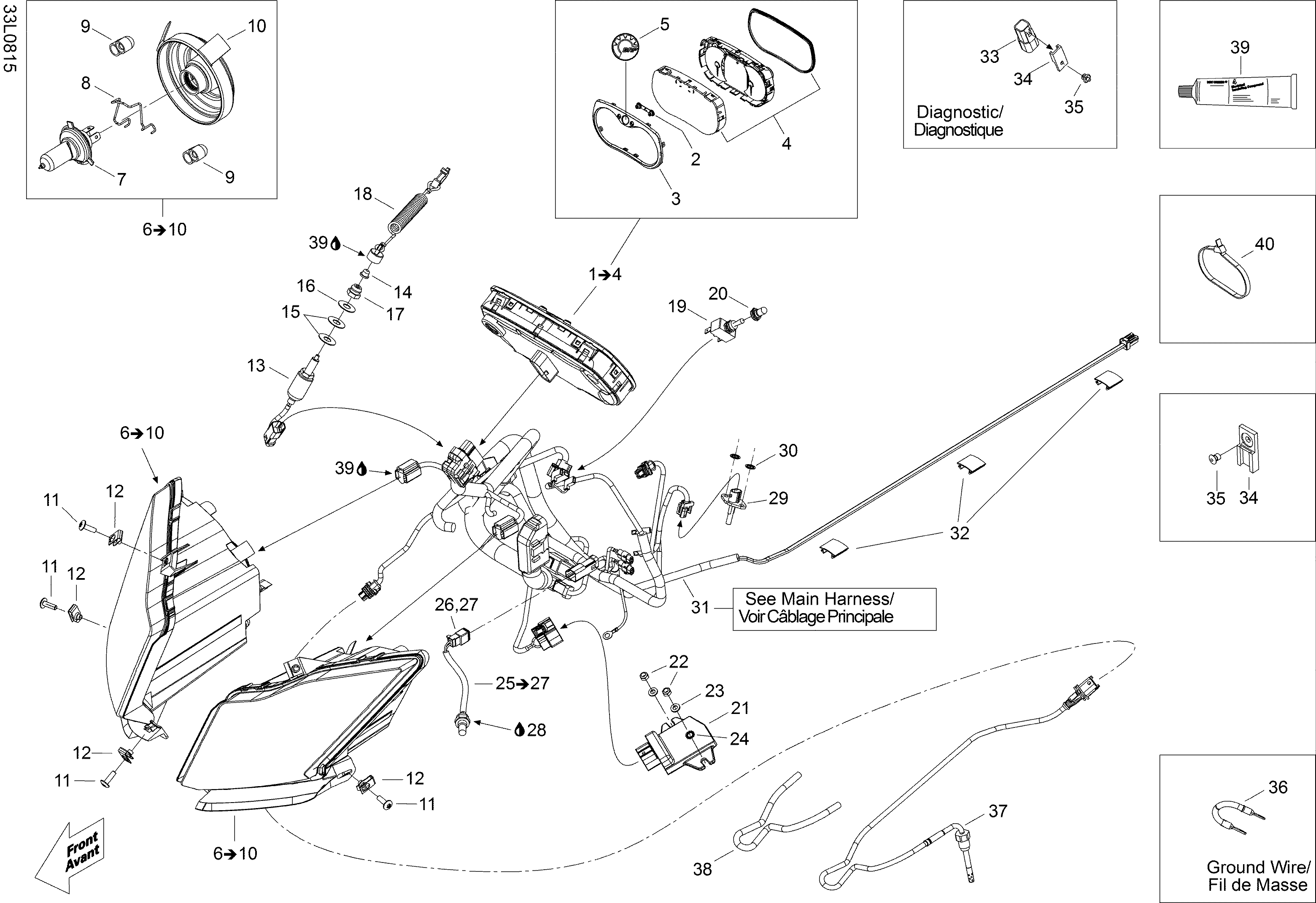

10- Electrical Accessories для BRP Lynx Rave RS 600 - 2008
-
№АртикулНазвание
-
1515176589 Speedometer. Includes 1 to 4Speedometer. Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Ring GaugeRing Gauge
-
4415129349 Lens And SealLens And Seal
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6515176362 RH Headlamp. Includes 6 to 10RH Headlamp. Includes 6 to 10
-
6515176363 LH Headlamp. Includes 6 to 10LH Headlamp. Includes 6 to 10
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
8515176493 Bulb HolderBulb Holder
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
13515175653 Brake SwitchBrake Switch
-
14570151100 Plunger CapPlunger Cap
-
15250200032 WasherWasher
-
16510004418 WasherWasher
-
17415073500 Switch NutSwitch Nut
-
18515176462 Cap Ass'yCap Ass'y
-
19410107300 Heated Grip SwitchHeated Grip Switch
-
20515175281 Switch CoverSwitch Cover
-
21515176364 Voltage RegulatorVoltage Regulator
-
22232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
23234061410 Flat Washer 6 mmFlat Washer 6 mm
-
24234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
25515176398 Temperature Sensor. Includes 25 to 27Temperature Sensor. Includes 25 to 27
-
26515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
27278000632 Female TerminalFemale Terminal
-
28293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
29515176366 Temperature Air SensorTemperature Air Sensor
-
30389804300 Push NutPush Nut
-
31515176623 Wiring HarnessWiring Harness
-
33278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
34515175917 ClipClip
-
35293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
36515176358 Ground WireGround Wire
-
37515176490 Temperature SensorTemperature Sensor
-
38515175442 Tubing 6 mmTubing 6 mm
-
39293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
40293750008 Tie-Rap 350 mmTie-Rap 350 mm
