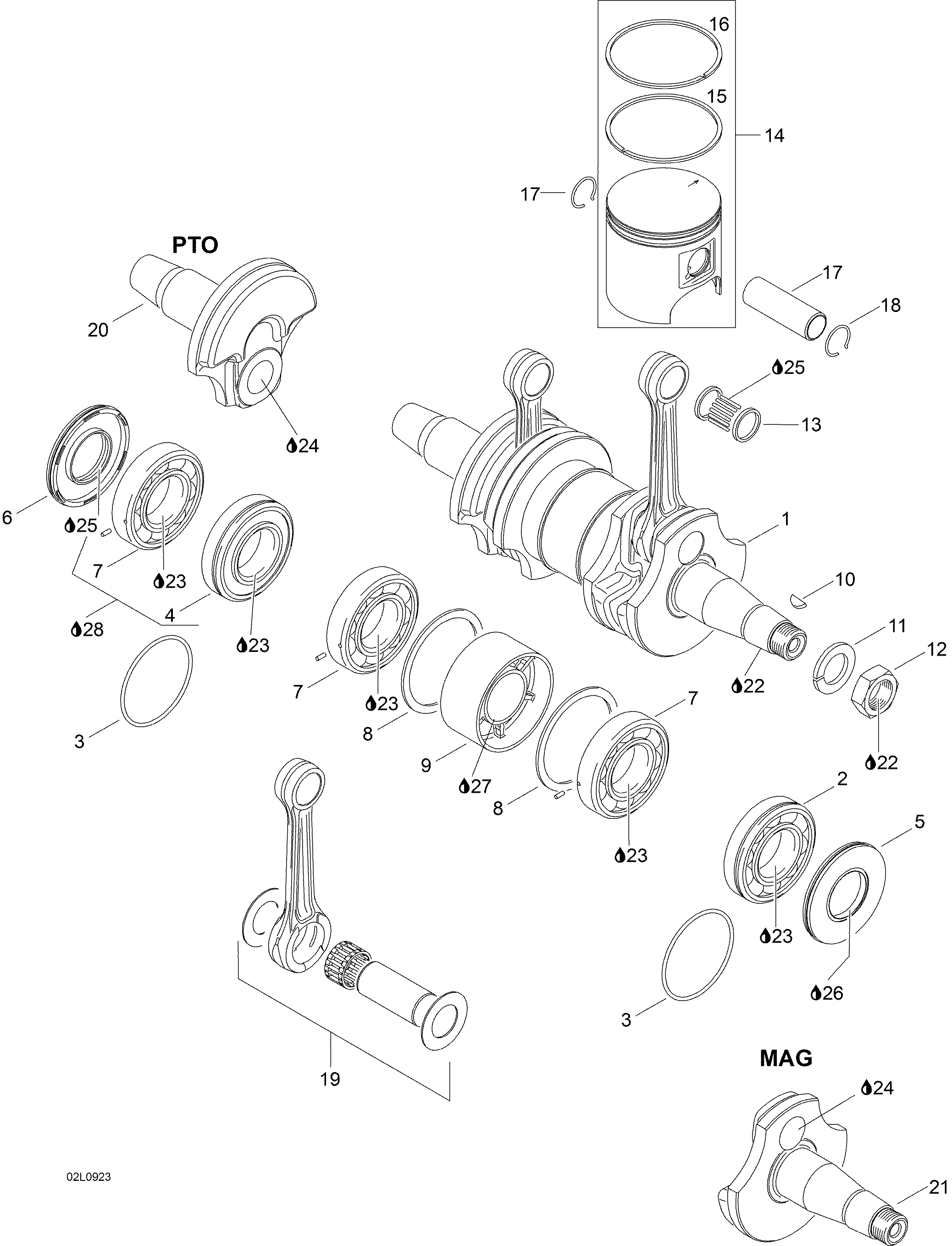

01- Crankshaft And Pistons для BRP Lynx Adventure 550 - 2009
-
№АртикулНазвание
-
1420889062 Crankshaft ass'y. Include 1 to 8Crankshaft ass'y. Include 1 to 8
-
2420832571 Bearing 6207Bearing 6207
-
3420250165 O-ringO-ring
-
4420832639 Bearing 6207Bearing 6207
-
5420831950 Oil sealOil seal
-
6420831955 Oil sealOil seal
-
7420832573 B.Bearing 6207B.Bearing 6207
-
8420927710 Retaining diskRetaining disk
-
9420850149 Labyrinth sleeveLabyrinth sleeve
-
10420246055 Woodruff KeyWoodruff Key
-
11420945759 Lock WasherLock Washer
-
12420842230 NutNut
-
13420832420 Needle cageNeedle cage
-
14420889050 Piston assy, 75.86mm. Include 14 to 16Piston assy, 75.86mm. Include 14 to 16
-
14420889051 Piston assy, 76.11mm. Include 14 to 16Piston assy, 76.11mm. Include 14 to 16
-
14420889052 Piston assy, 76.36mm. Include 14 to 16Piston assy, 76.36mm. Include 14 to 16
-
15420815300 Piston ring 76.00 mmPiston ring 76.00 mm
-
15420815301 Piston ring 76.25 mmPiston ring 76.25 mm
-
15420815302 Piston ring 76.50 mmPiston ring 76.50 mm
-
16420815155 Piston ring 76.00 mmPiston ring 76.00 mm
-
16420815156 Piston ring 76.25 mmPiston ring 76.25 mm
-
16420815157 Piston ring 76.50 mmPiston ring 76.50 mm
-
17420916405 Piston pinPiston pin
-
18420845106 CirclipCirclip
-
19420889064 Rod repair kitRod repair kit
-
20420819181 Crankhalf P.T.O sideCrankhalf P.T.O side
-
21420819210 Crankhalf MAG SideCrankhalf MAG Side
-
22420899785 Loctite 221, 10cm3Loctite 221, 10cm3
-
23293800070 Loctite 767, 8 ozLoctite 767, 8 oz
-
24420897340 Loctite,14486/10ccLoctite,14486/10cc
-
26420899271 Petamo greasePetamo grease
-
27413802900 Injection oil (12 x 1 l)Injection oil (12 x 1 l)
-
28293550021 Isoflex grease, 45 gIsoflex grease, 45 g
