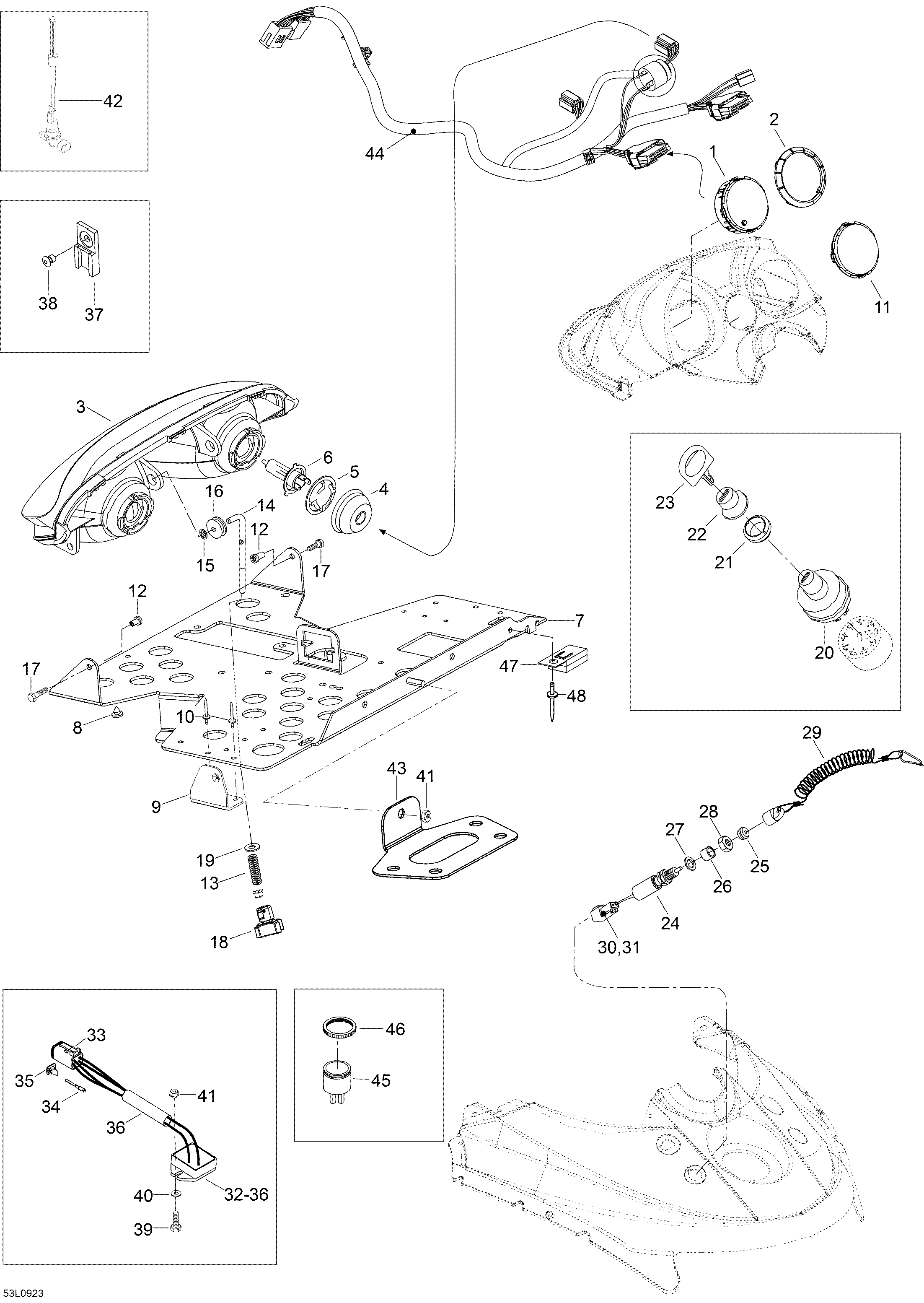

10- Electrical System для BRP Lynx Adventure 550 - 2009
-
№АртикулНазвание
-
1515176476 SpeedometerSpeedometer
-
2515176242 Gauge ringGauge ring
-
3515176311 Halogen headlamp ass'y. Includes 3 to 6Halogen headlamp ass'y. Includes 3 to 6
-
4515175911 CoverCover
-
5515175910 Bulp holderBulp holder
-
6410504401 Halogen bulp 60/55WHalogen bulp 60/55W
-
7605253348 Headlamp supportHeadlamp support
-
8605452114 PluggPlugg
-
9605453984 L.H. BracketL.H. Bracket
-
9605453985 R.H. BracketR.H. Bracket
-
1036108 RivetRivet
-
11515175901 Bottom ringBottom ring
-
12250100018 Well-nutWell-nut
-
13415100600 SpringSpring
-
14517295800 Adjuster RodAdjuster Rod
-
15732610072 Nut PushNut Push
-
16415100800 GrommetGrommet
-
1740231 Hex. screw M5 x 30Hex. screw M5 x 30
-
18515175975 KnobKnob
-
1920003 Washer A6,4Washer A6,4
-
2042019 Ignition switchIgnition switch
-
21410112100 NutNut
-
22570013700 Boot switchBoot switch
-
23414991700 Blank keyBlank key
-
24515175653 Emergency switchEmergency switch
-
25570151100 CapCap
-
26605454413 SleeveSleeve
-
2720028 Washer A10,5Washer A10,5
-
28515145900 NutNut
-
29515151500 Emergency switch lockEmergency switch lock
-
30605642628 Male connectorMale connector
-
3142608 Male connector housingMale connector housing
-
32515176189 Voltage regulator. Includes 32 to 36Voltage regulator. Includes 32 to 36
-
33278001477 Male terminal housingMale terminal housing
-
34515175568 Male terminalMale terminal
-
35278001478 Male lockMale lock
-
36710000497 TubingTubing
-
37515175917 ClipClip
-
3836005 RivetRivet
-
3940031 Screw M6 x 25Screw M6 x 25
-
4020009 Washer A6.4Washer A6.4
-
4133010 Elastic stop nut M6Elastic stop nut M6
-
42605452095 Oil sensorOil sensor
-
43605454122 BracketBracket
-
44605152760 Main harness ass'yMain harness ass'y
-
45515176035 HornHorn
-
46414805101 Ring nutRing nut
-
4742272 Support, fuse housingSupport, fuse housing
-
4836491 RivetRivet
