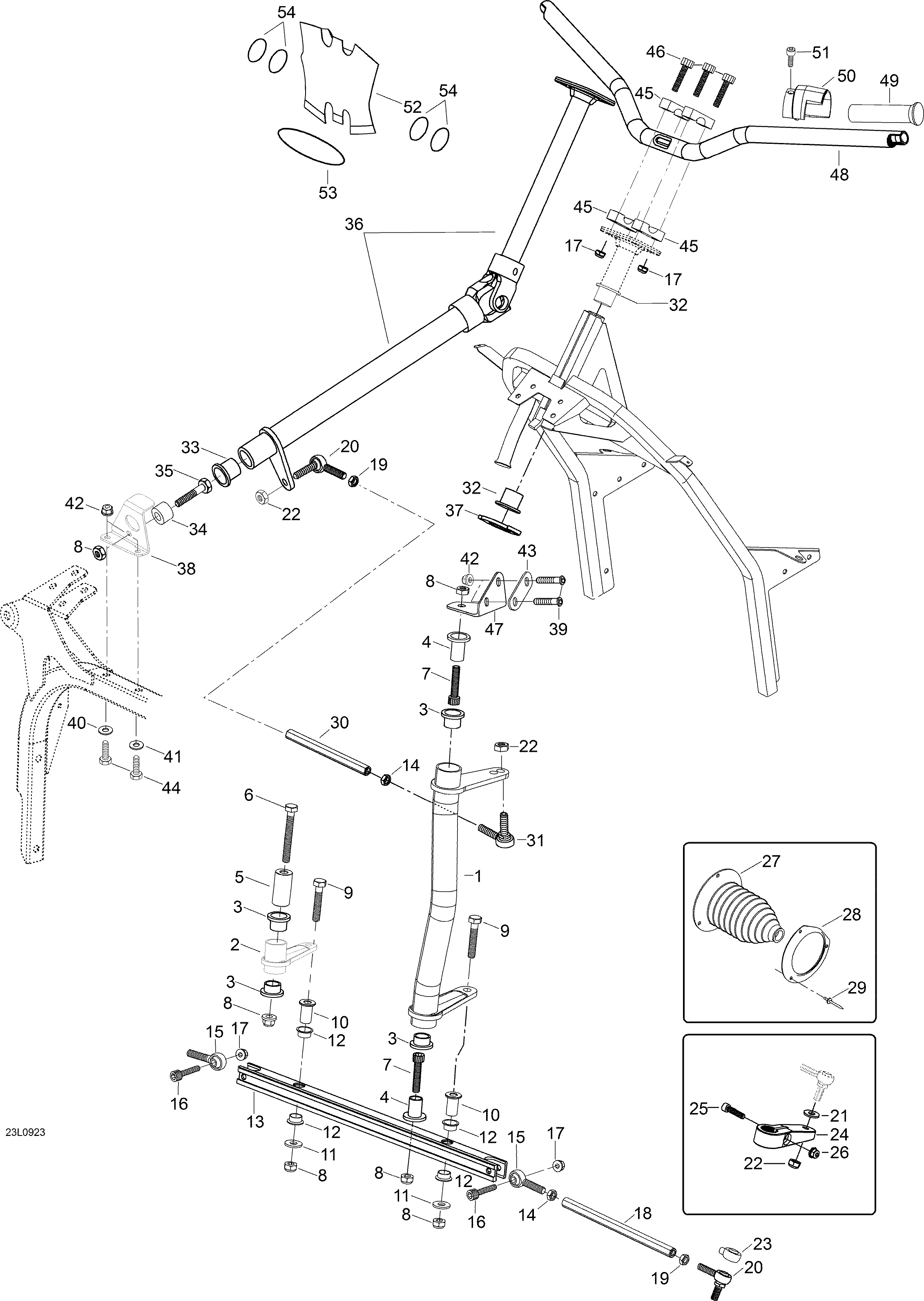

07- Steering System для BRP Lynx Adventure 550 - 2009
-
№АртикулНазвание
-
1605353754 L.H. swivel armL.H. swivel arm
-
2605353644 R.H. swivel armR.H. swivel arm
-
331028 CushionCushion
-
4605454856 BushingBushing
-
5605453646 SleeveSleeve
-
640021 Hex. screw M10 x 70Hex. screw M10 x 70
-
740016 Socket head screw M10 x 45Socket head screw M10 x 45
-
833012 Elastic stop nut M10Elastic stop nut M10
-
940017 Hex. screw M10 x 55Hex. screw M10 x 55
-
10506147300 CushionCushion
-
1120028 Washer 10.5mmWasher 10.5mm
-
12506150200 SleeveSleeve
-
13605349868 Bar-swivelBar-swivel
-
14250100016 L.H. jam nut M10L.H. jam nut M10
-
15506151496 R.H. jam nut M10R.H. jam nut M10
-
1640395 Socket head screw M8 x 35Socket head screw M8 x 35
-
1733011 Elastic stop nut M8Elastic stop nut M8
-
18605349865 Tie-rodTie-rod
-
19732610010 R.H. jam nut M10R.H. jam nut M10
-
20506151491 R.H. Joint ballR.H. Joint ball
-
2120105 Washer, hardened 10mmWasher, hardened 10mm
-
2233023 Elastic stop nut M10Elastic stop nut M10
-
23506151650 CoverCover
-
24506144800 R.H. steering armR.H. steering arm
-
24506144900 L.H. steering armL.H. steering arm
-
2540843 Socket head screw M8 x 35Socket head screw M8 x 35
-
2633201 Elastic flanged nut M8Elastic flanged nut M8
-
27605252101 Tie-rod capTie-rod cap
-
28605351469 Retainer ringRetainer ring
-
2936009 RivetRivet
-
30605351468 Tie-rodTie-rod
-
31506151495 L.H. Joint ballL.H. Joint ball
-
3231028 CushionCushion
-
33505070003 SleeveSleeve
-
34605451433 SleeveSleeve
-
3540014 Socket head screw M10 x 40Socket head screw M10 x 40
-
36605253753 Main tubeMain tube
-
37605453832 limiterlimiter
-
38605352600 BracketBracket
-
3940392 Socket head screw M8 x 45Socket head screw M8 x 45
-
4020004 Washer A8,4Washer A8,4
-
4120010 Washer A8,4Washer A8,4
-
4233201 Elastic flanged nut M8Elastic flanged nut M8
-
43605454890 Support plateSupport plate
-
4440008 Hex. screw M8 x 45Hex. screw M8 x 45
-
45548448 Steering supportSteering support
-
4640286 Socket head screw M8 x 45Socket head screw M8 x 45
-
47605451772 Support bracketSupport bracket
-
48605250889 Handle barHandle bar
-
495340464 GripGrip
-
50506151566 AdapterAdapter
-
5140390 Screw M8 x 20Screw M8 x 20
-
52605353598 CapCap
-
5312402 O-ringO-ring
-
5412406 O-ringO-ring
