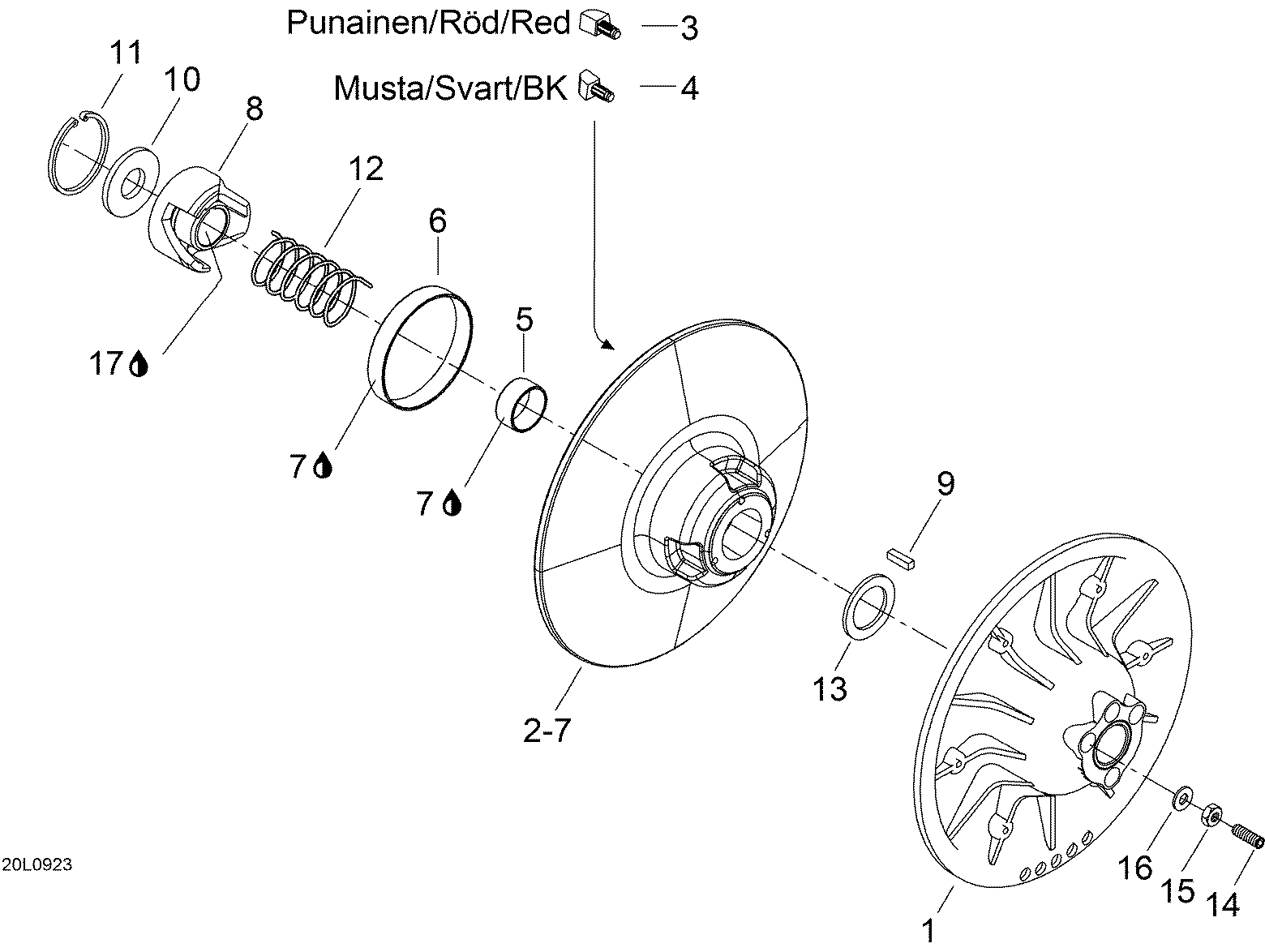

05- Driven pulley для BRP Lynx Adventure 550 - 2009
-
№АртикулНазвание
-
1417126663 Fixed flange assyFixed flange assy
-
2417126486 Sliding pulley. Includes 2 to 7Sliding pulley. Includes 2 to 7
-
3417126539 Front cam shoe slide, RDFront cam shoe slide, RD
-
4417126538 Front cam shoe slide, BKFront cam shoe slide, BK
-
5417126515 BushingBushing
-
6417126562 BushingBushing
-
7413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
8417127038 Cam 40-44Cam 40-44
-
9414820800 KeyKey
-
10417126555 Stopper washerStopper washer
-
11371903100 CirclipCirclip
-
12417127061 Spring, BrownSpring, Brown
-
13504141900 Thrust washerThrust washer
-
14206263044 Screw M6 x 30Screw M6 x 30
-
15232061414 NutNut
-
16420245370 Stopper washerStopper washer
-
17293800070 Loctite 767, 8ozLoctite 767, 8oz
