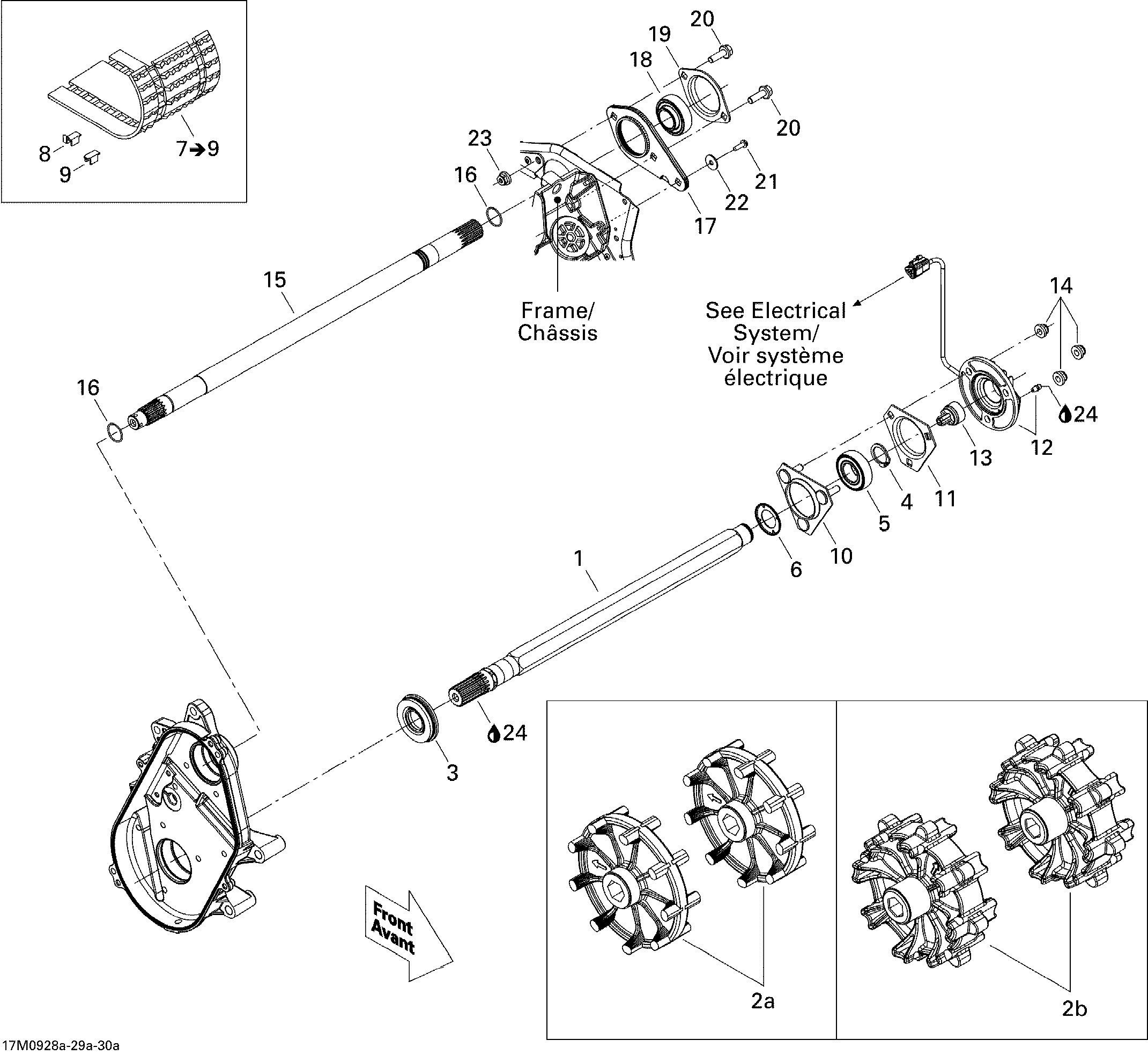

05- Drive System 1 Ranger для BRP Lynx Adventure Ranger V-800 - 2009
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2a504151781 Sprocket, 9 TeethSprocket, 9 Teeth
-
3504151918 Oil Seal Ass'yOil Seal Ass'y
-
4371910200 CirclipCirclip
-
5293350060 Ball BearingBall Bearing
-
6501017400 Bearing ProtectorBearing Protector
-
713074 Track. Includes 7 to 9, RangerTrack. Includes 7 to 9, Ranger
-
8504152410 GuideGuide
-
10504151860 Bearing HousingBearing Housing
-
11501025000 FlangeFlange
-
12504152345 Rotation SensorRotation Sensor
-
13504152040 Magnetic AdaptorMagnetic Adaptor
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15504152292 Counter ShaftCounter Shaft
-
16371910000 CirclipCirclip
-
17504151968 SpacerSpacer
-
18504152535 Ball BearingBall Bearing
-
19501026900 FlangeFlange
-
20207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
21207551644 Hex. Flanged Screw M5 x 16, Scotch GripHex. Flanged Screw M5 x 16, Scotch Grip
-
22224061201 Flat WasherFlat Washer
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
