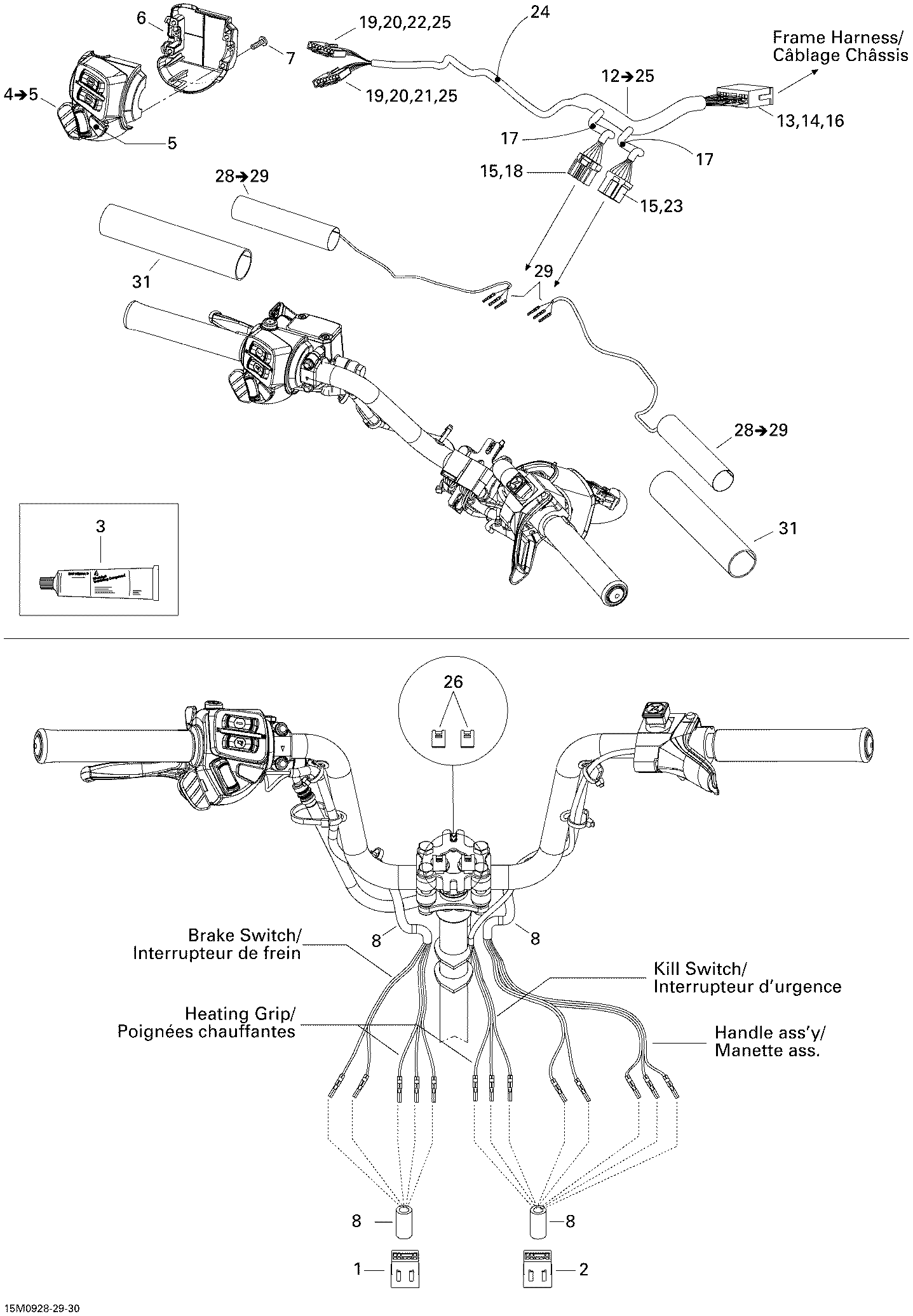

10- Steering Wiring Harness Ranger для BRP Lynx Adventure Ranger V-800 - 2009
-
№АртикулНазвание
-
1515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
2515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
3293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
4515175771 Switch Housing. Includes 4 to 5Switch Housing. Includes 4 to 5
-
5515175779 CapCap
-
6515175926 Housing Switch PlateHousing Switch Plate
-
7250000263 Torx Screw #8-18Torx Screw #8-18
-
8409902200 Tubing 25 mmTubing 25 mm
-
8409902000 Tubing 12 mmTubing 12 mm
-
8515175830 Low Temperature Tubing 1/2”Low Temperature Tubing 1/2”
-
12515176310 Steering Wiring Harness. Ranger, Includes 12 to 25Steering Wiring Harness. Ranger, Includes 12 to 25
-
13515175232 Male TerminalMale Terminal
-
14515175273 Male TerminalMale Terminal
-
15515175231 Female TerminalFemale Terminal
-
16515175352 Male Terminal Housing, 13 CircuitsMale Terminal Housing, 13 Circuits
-
17415079900 Tubing 10 mmTubing 10 mm
-
18515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
19515175808 Female TerminalFemale Terminal
-
20515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
21515175807 Female Terminal Housing 8 Circuits BlackFemale Terminal Housing 8 Circuits Black
-
22515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
23515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
24515175830 Low Temperature Tubing 1/2”Low Temperature Tubing 1/2”
-
25515175941 Female TerminalFemale Terminal
-
28506152422 Heating Element. Includes 28 to 29Heating Element. Includes 28 to 29
-
29515175232 Male TerminalMale Terminal
-
31506152423 InsulantInsulant
