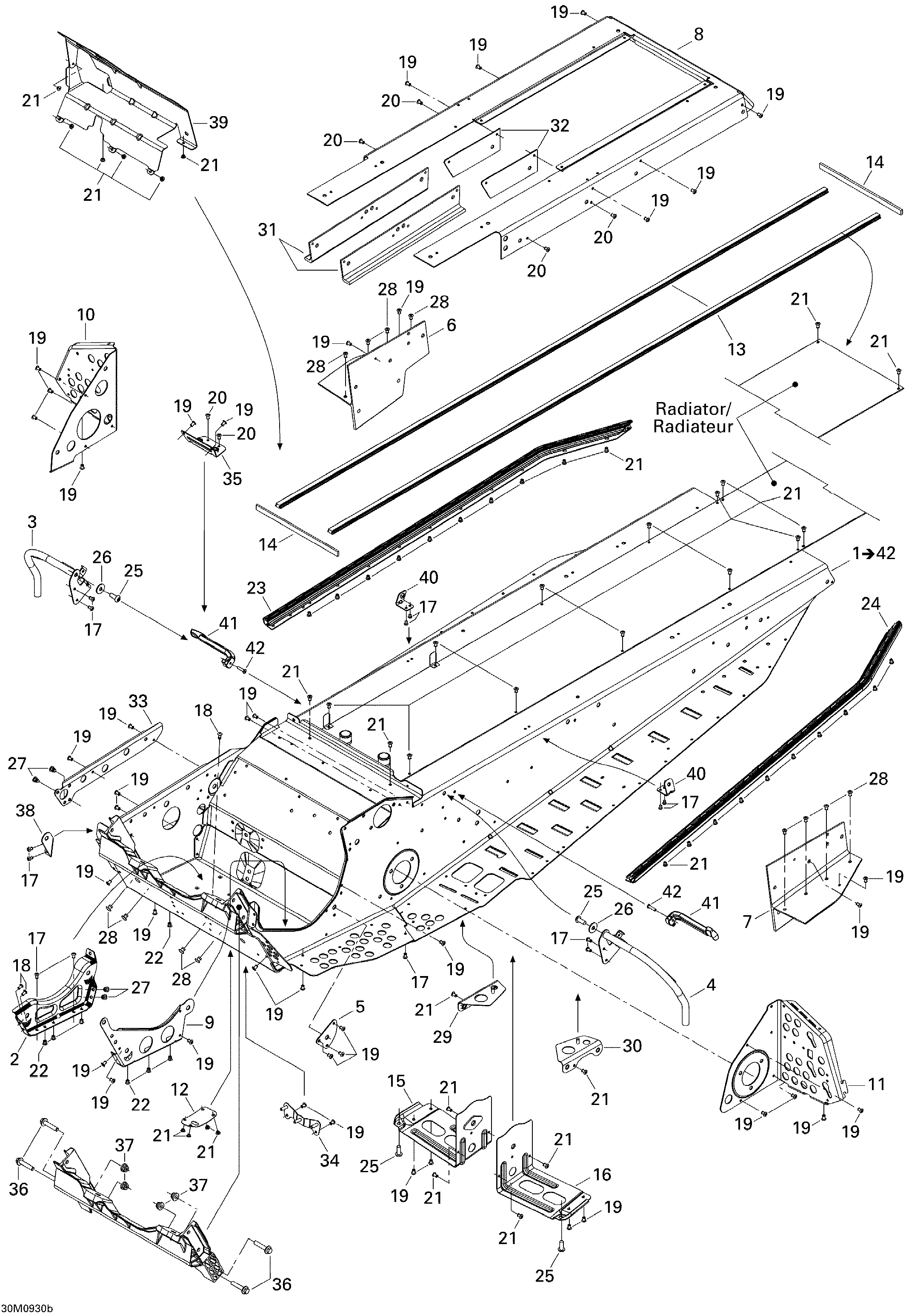

09- Frame Ranger для BRP Lynx Adventure Ranger V-800 - 2009
-
№АртикулНазвание
-
1415129298 Frame 156'' Ass'y. Includes 1 to 42Frame 156'' Ass'y. Includes 1 to 42
-
2518323346 Engine Support, BlackEngine Support, Black
-
3518324162 RH Toe Hold SupportRH Toe Hold Support
-
4518324163 LH Toe Hold SupportLH Toe Hold Support
-
5518323507 Outer ReinforcementOuter Reinforcement
-
6518325546 RH Slide BracketRH Slide Bracket
-
7518325548 LH Slide BracketLH Slide Bracket
-
8518325495 Extention FrameExtention Frame
-
9518323995 Inner ReinforcementInner Reinforcement
-
10518325196 RH Footrest ReinforcementRH Footrest Reinforcement
-
11518324527 LH Footrest ReinforcementLH Footrest Reinforcement
-
12518324169 PlatePlate
-
13518325532 Radiator ProtectorRadiator Protector
-
14293200104 GasketGasket
-
15518325540 RH FootrestRH Footrest
-
16518325543 LH FootrestLH Footrest
-
17390909200 Avex RivetAvex Rivet
-
18390909100 Avex RivetAvex Rivet
-
19390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
20390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
21390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390910300 Henrob RivetHenrob Rivet
-
23518325153 RH RollerRH Roller
-
24518325154 LH RollerLH Roller
-
25205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
26234082410 Flat Washer 8 mmFlat Washer 8 mm
-
27293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
28293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
29518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
30518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
31518325498 CorniceCornice
-
32518325502 ShimShim
-
33518323328 RH Tunnel StiffenerRH Tunnel Stiffener
-
34518324599 HolderHolder
-
35518324207 Holder PlateHolder Plate
-
36207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
37233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
38518324906 RH SupportRH Support
-
39514054097 Heat ShieldHeat Shield
-
40518324688 Trunk BracketTrunk Bracket
-
41517302448 Panel LatchPanel Latch
-
42390410100 Pop Rivet 3/16”Pop Rivet 3/16”
