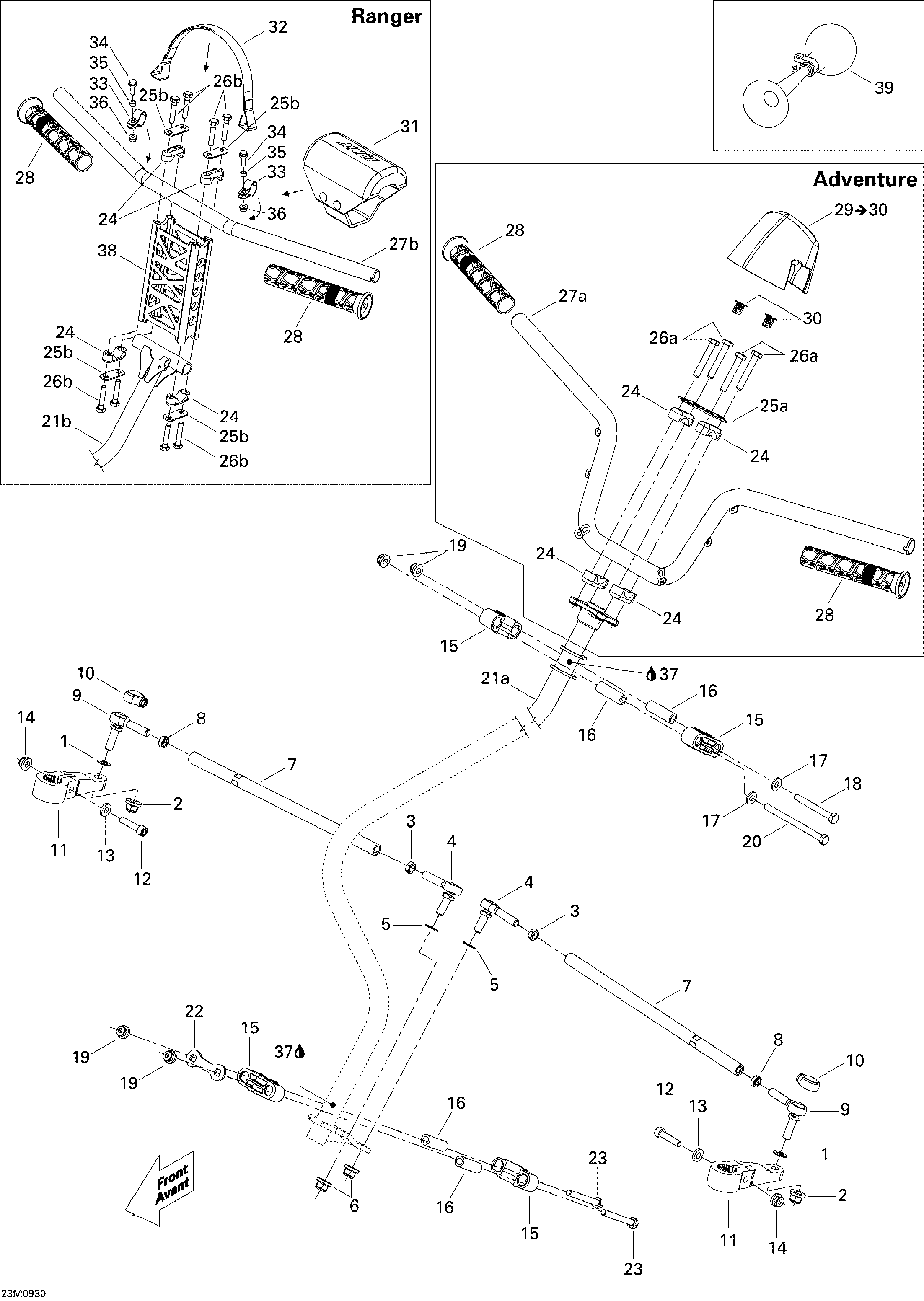

07- Steering Ranger для BRP Lynx Adventure Ranger V-800 - 2009
-
№АртикулНазвание
-
1503175800 WasherWasher
-
2250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
3250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
4506151845 LH Joint BallLH Joint Ball
-
5503175800 WasherWasher
-
6250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
7506151556 Tie RodTie Rod
-
8732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
9506152212 Ball JointBall Joint
-
10506151650 Protection CapProtection Cap
-
11506152030 Swivel ArmSwivel Arm
-
12207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
13234081410 Flat Washer 8 mmFlat Washer 8 mm
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15506150400 Housing HalfHousing Half
-
16506150500 Housing BushingHousing Bushing
-
17503189157 WasherWasher
-
18207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20230081044 Hex. Screw M8 X 110Hex. Screw M8 X 110
-
21b506152256 Steering Main Tube. RangerSteering Main Tube. Ranger
-
22506150600 Stopper PlateStopper Plate
-
23207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
24506151622 Steering SupportSteering Support
-
25b506151196 Reinforcement. RangerReinforcement. Ranger
-
26b250000074 Hex. Screw With Nylon M8 X 40. RangerHex. Screw With Nylon M8 X 40. Ranger
-
27b506152203 Handle Bar. RangerHandle Bar. Ranger
-
28506152424 Handle GripHandle Grip
-
31506152299 Steering Padding Ass'y. RangerSteering Padding Ass'y. Ranger
-
32506152115 Strap Ass'y. RangerStrap Ass'y. Ranger
-
33506151792 Support Plate, Black. RangerSupport Plate, Black. Ranger
-
34207662084 Hex. Flanged Screw M6 X 20. RangerHex. Flanged Screw M6 X 20. Ranger
-
35506152156 Bushing. RangerBushing. Ranger
-
36233261494 Hex. Elastic Flanged Nut M6. RangerHex. Elastic Flanged Nut M6. Ranger
-
37219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
38506152107 Extension. RangerExtension. Ranger
-
39549011291 HornHorn
