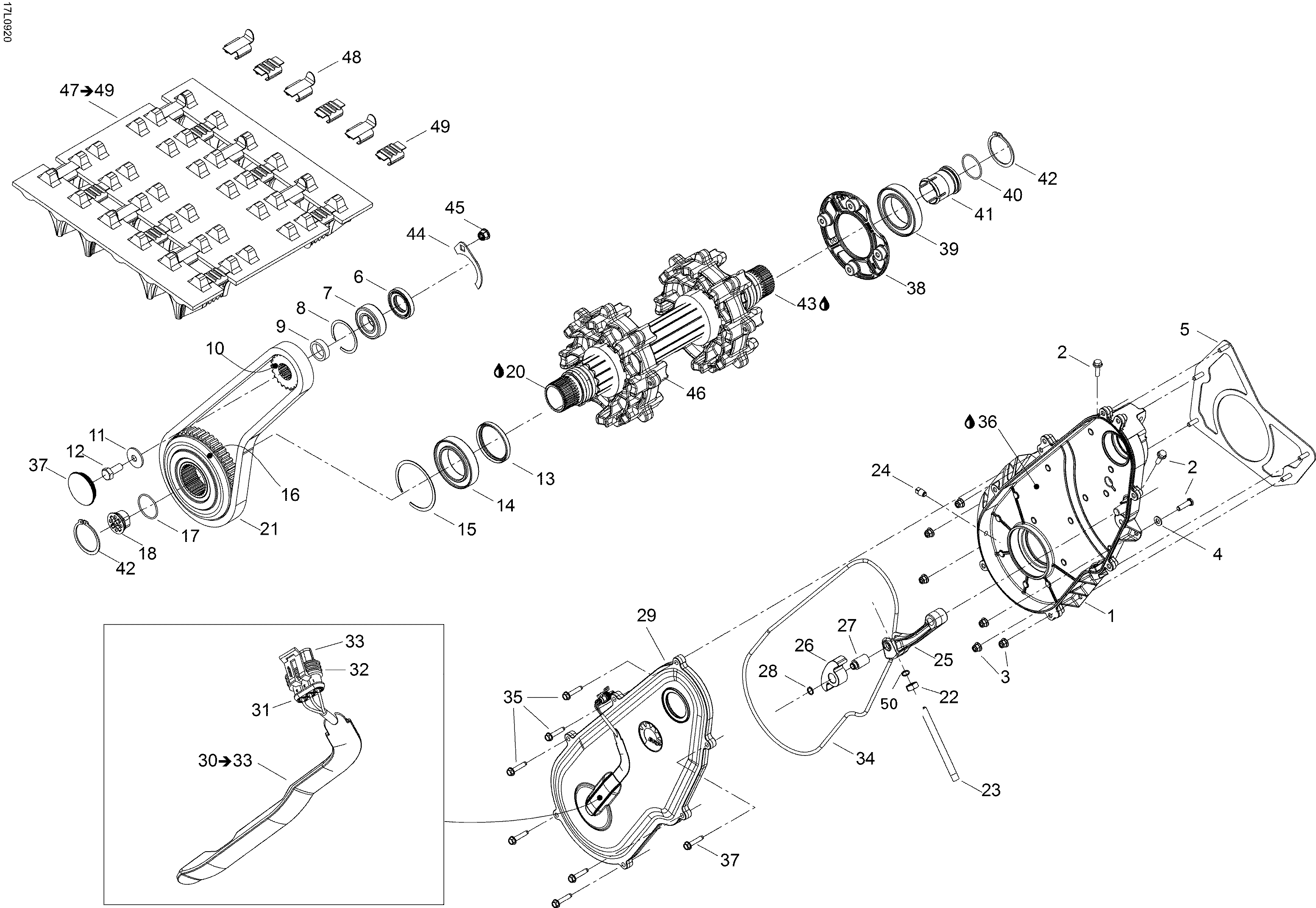

05- Drive System для BRP Lynx Rave 600 - 2009
-
№АртикулНазвание
-
1504152866 Chain Case. Includes 1 to 2Chain Case. Includes 1 to 2
-
2293150148 RivetRivet
-
3293150149 Huck collarHuck collar
-
4234061410 Flat Washer 6 mmFlat Washer 6 mm
-
5518325816 Plate Ass'yPlate Ass'y
-
6415049300 Oil SealOil Seal
-
7293350055 Ball BearingBall Bearing
-
8504152576 CirclipCirclip
-
9504152628 ShimShim
-
10504085400 23 Teeth Sprocket (Large)23 Teeth Sprocket (Large)
-
11504152784 Spring WasherSpring Washer
-
12207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
13504152571 SealSeal
-
14504152573 Ball BearingBall Bearing
-
15504152582 CirclipCirclip
-
16504152593 Sprocket 45thSprocket 45th
-
17293300122 O RingO Ring
-
18504152619 Magnetic AdaptorMagnetic Adaptor
-
20293550022 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
21504152629 Drive ChaineDrive Chaine
-
22232006414 Hex Nut M10Hex Nut M10
-
23504152602 Adjusting ScrewAdjusting Screw
-
24504152636 Magnetic PlugMagnetic Plug
-
25504152685 Chain TensionerChain Tensioner
-
26504152739 Chain SliderChain Slider
-
27504152841 Tensioner AxleTensioner Axle
-
28504152282 CirclipCirclip
-
29504152590 Chaincase CoverChaincase Cover
-
30504152732 Rotation SensorRotation Sensor
-
31278001013 Wire Seal. Includes 30 to 33Wire Seal. Includes 30 to 33
-
32409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
33278001014 Female TerminalFemale Terminal
-
34293300130 O RingO Ring
-
35250000360 Hex Forming Screw M6Hex Forming Screw M6
-
36413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
37504152861 Filler CapFiller Cap
-
38507032437 Bearing HousingBearing Housing
-
39293350059 Ball BearingBall Bearing
-
40293300122 O RingO Ring
-
41504152619 CapCap
-
42504152572 CirclipCirclip
-
43293550033 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
44504152633 FlangeFlange
-
45233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
46605356065 Drive Axle assyDrive Axle assy
-
47504152558 Track. Includes 47 to 48Track. Includes 47 to 48
-
48504152410 GuideGuide
-
49504152651 CleatCleat
-
50293200128 Bonded washerBonded washer
