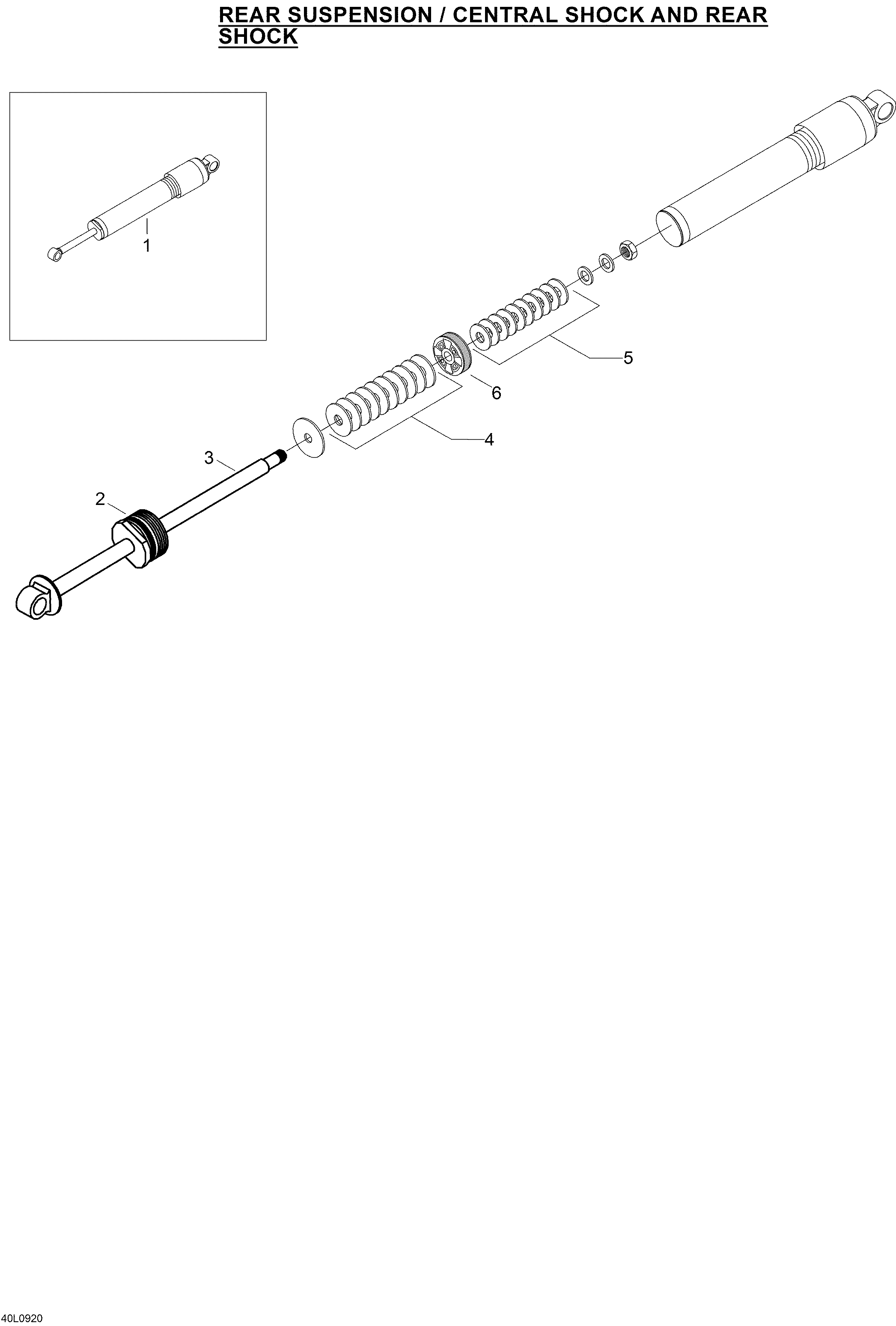

07- Take Apart Shock rear для BRP Lynx Rave 600 - 2009
-
№АртикулНазвание
-
1503191862 Shock, front arm. Includes 1 to 9, 16, 17, 18Shock, front arm. Includes 1 to 9, 16, 17, 18
-
1503192059 Shock, rear armShock, rear arm
-
4230029 Leaf valve 20x0.114Leaf valve 20x0.114
-
4230030 Leaf valve 20x0.152Leaf valve 20x0.152
-
4230031 Leaf valve 20x0.203Leaf valve 20x0.203
-
4230032 Leaf valve 20x0.254Leaf valve 20x0.254
-
4503189011 Leaf valve 22x0.114Leaf valve 22x0.114
-
4503189013 Leaf valve 22x0.203Leaf valve 22x0.203
-
4503189016 Leaf valve 24x0.114Leaf valve 24x0.114
-
4503189017 Leaf valve 24x0.152Leaf valve 24x0.152
-
4503189018 Leaf valve 24x0.203Leaf valve 24x0.203
-
4503189019 Leaf valve 24x0.254Leaf valve 24x0.254
-
4503189021 Leaf valve 26x0.114Leaf valve 26x0.114
-
4503189022 Leaf valve 26x0.152Leaf valve 26x0.152
-
4503189023 Leaf valve 26x0.203Leaf valve 26x0.203
-
4503189024 Leaf valve 26x0.254Leaf valve 26x0.254
-
4503189026 Leaf valve 28x0.114Leaf valve 28x0.114
-
4503189027 Leaf valve 28x0.152Leaf valve 28x0.152
-
4503189028 Leaf valve 28x0.203Leaf valve 28x0.203
-
4503189029 Leaf valve 28x0.254Leaf valve 28x0.254
-
4503189031 Leaf valve 30x0.114Leaf valve 30x0.114
-
4503189032 Leaf valve 30x0.152Leaf valve 30x0.152
-
4503189033 Leaf valve 30x0.203Leaf valve 30x0.203
-
4230082 Leaf valve 32x0.114Leaf valve 32x0.114
-
4230033 Leaf valve 34x0.114Leaf valve 34x0.114
-
4230034 Leaf valve 34x0.152Leaf valve 34x0.152
-
4230035 Leaf valve 34x0.203Leaf valve 34x0.203
-
4230036 Leaf valve 34x0.254Leaf valve 34x0.254
-
4230037 Leaf valve 36x0.114Leaf valve 36x0.114
-
4503189036 Leaf valve 36x0.152Leaf valve 36x0.152
-
4503189037 Leaf valve 36x0.203Leaf valve 36x0.203
-
4503189038 Leaf valve 36x0.254Leaf valve 36x0.254
-
4230040 Leaf valve 38x0.152Leaf valve 38x0.152
-
4230041 Leaf valve 38x0.203Leaf valve 38x0.203
-
4230042 Leaf valve 38x0.254Leaf valve 38x0.254
-
4503189039 Leaf valve 40x0.114Leaf valve 40x0.114
-
4503189040 Leaf valve 40x0.203Leaf valve 40x0.203
-
4503189041 Leaf valve 40x0.254Leaf valve 40x0.254
-
5230029 Leaf valve 20x0.114Leaf valve 20x0.114
-
5230030 Leaf valve 20x0.152Leaf valve 20x0.152
-
5230031 Leaf valve 20x0.203Leaf valve 20x0.203
-
5230032 Leaf valve 20x0.254Leaf valve 20x0.254
-
5503189011 Leaf valve 22x0.114Leaf valve 22x0.114
-
5503189013 Leaf valve 22x0.203Leaf valve 22x0.203
-
5503189014 Leaf valve 22x0.254Leaf valve 22x0.254
-
5503189016 Leaf valve 24x0.114Leaf valve 24x0.114
-
5503189017 Leaf valve 24x0.152Leaf valve 24x0.152
-
5503189018 Leaf valve 24x0.203Leaf valve 24x0.203
-
5503189019 Leaf valve 24x0.254Leaf valve 24x0.254
-
5503189020 Leaf valve 24x0.305Leaf valve 24x0.305
-
5503189021 Leaf valve 26x0.114Leaf valve 26x0.114
-
5503189022 Leaf valve 26x0.152Leaf valve 26x0.152
-
5503189023 Leaf valve 26x0.203Leaf valve 26x0.203
-
5503189024 Leaf valve 26x0.254Leaf valve 26x0.254
-
5503189026 Leaf valve 28x0.114Leaf valve 28x0.114
-
5503189027 Leaf valve 28x0.152Leaf valve 28x0.152
-
5503189028 Leaf valve 28x0.203Leaf valve 28x0.203
-
5503189029 Leaf valve 28x0.254Leaf valve 28x0.254
-
5503189031 Leaf valve 30x0.114Leaf valve 30x0.114
-
5503189032 Leaf valve 30x0.152Leaf valve 30x0.152
-
5503189033 Leaf valve 30x0.203Leaf valve 30x0.203
-
5230082 Leaf valve 32x0.114Leaf valve 32x0.114
-
5230033 Leaf valve 34x0.114Leaf valve 34x0.114
-
5230034 Leaf valve 34x0.152Leaf valve 34x0.152
-
5230035 Leaf valve 34x0.203Leaf valve 34x0.203
-
5230036 Leaf valve 34x0.254Leaf valve 34x0.254
-
5230037 Leaf valve 36x0.114Leaf valve 36x0.114
-
5503189036 Leaf valve 36x0.152Leaf valve 36x0.152
-
5503189037 Leaf valve 36x0.203Leaf valve 36x0.203
-
5503189038 Leaf valve 36x0.254Leaf valve 36x0.254
-
5230040 Leaf valve 38x0.152Leaf valve 38x0.152
-
5230041 Leaf valve 38x0.203Leaf valve 38x0.203
-
5230042 Leaf valve 38x0.254Leaf valve 38x0.254
-
5503189039 Leaf valve 40x0.114Leaf valve 40x0.114
-
5503189040 Leaf valve 40x0.203Leaf valve 40x0.203
-
5503189041 Leaf valve 40x0.254Leaf valve 40x0.254
-
6230044 Piston 1.2 mm (front arm)Piston 1.2 mm (front arm)
-
6230038 Piston 1.7 mm (rear arm)Piston 1.7 mm (rear arm)
-
6230039 Piston 2.0 mmPiston 2.0 mm
-
6230043 PistonPiston
