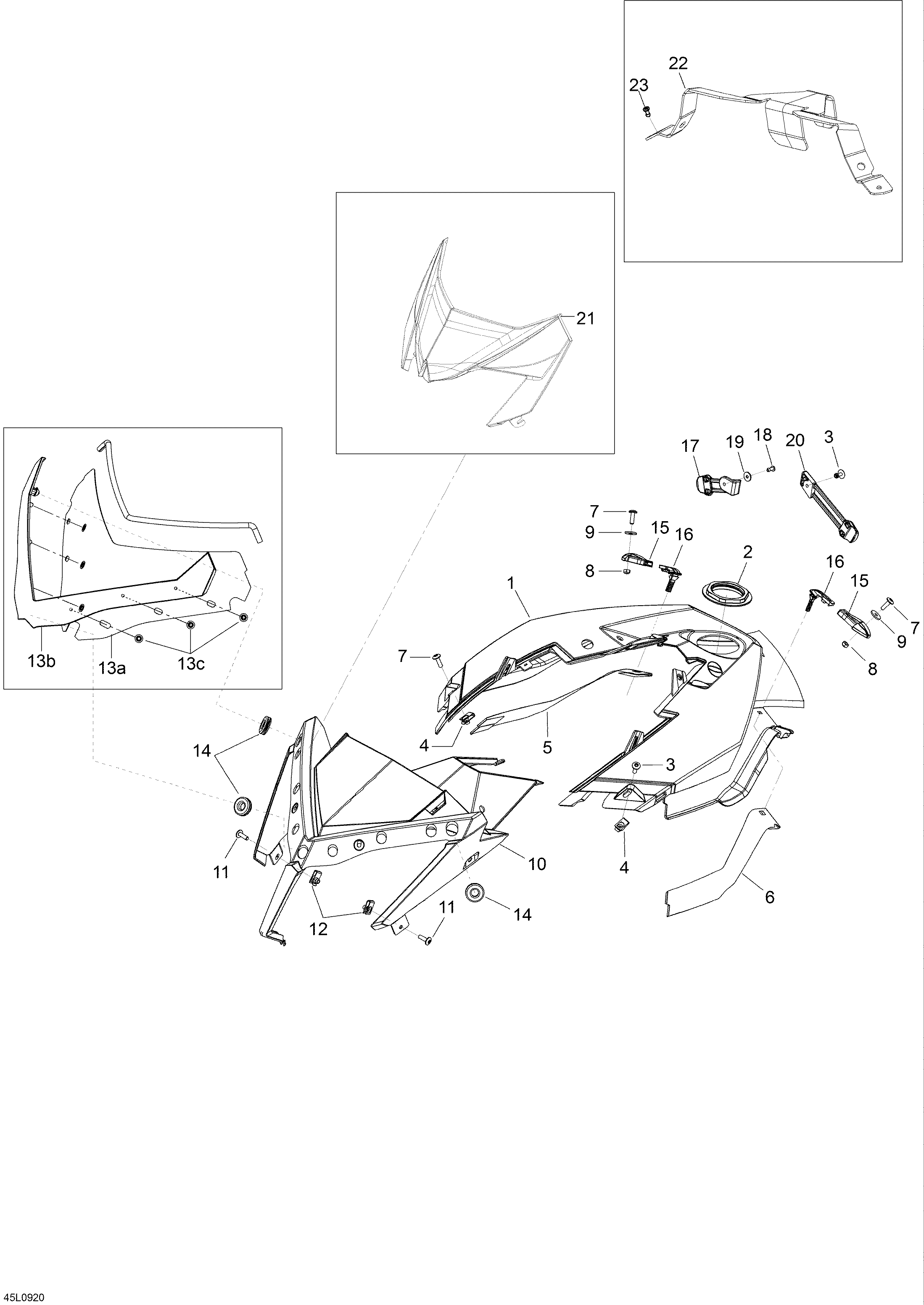

09- Windshield And Console для BRP Lynx Rave 600 - 2009
-
№АртикулНазвание
-
1517304250 ConsoleConsole
-
2517302575 Console NutConsole Nut
-
3293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
4250000048 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
5517304103 RH DecalRH Decal
-
6517304104 LH DecalLH Decal
-
7250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9224061201 Flat WasherFlat Washer
-
10517303603 Indicator SupportIndicator Support
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
13a517304293 WindshieldWindshield
-
13b517303757 Windshield SupportWindshield Support
-
13c732610072 Push NutPush Nut
-
14517303756 GrommetGrommet
-
15517303978 End PieceEnd Piece
-
16517303981 Panel LatchPanel Latch
-
17517303612 Panel LatchPanel Latch
-
18390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
19517124300 WasherWasher
-
20517303808 Panel LatchPanel Latch
-
21517303979 Headlamp coverHeadlamp cover
-
22517304230 Support plate for consoleSupport plate for console
-
2336037 RivetRivet
