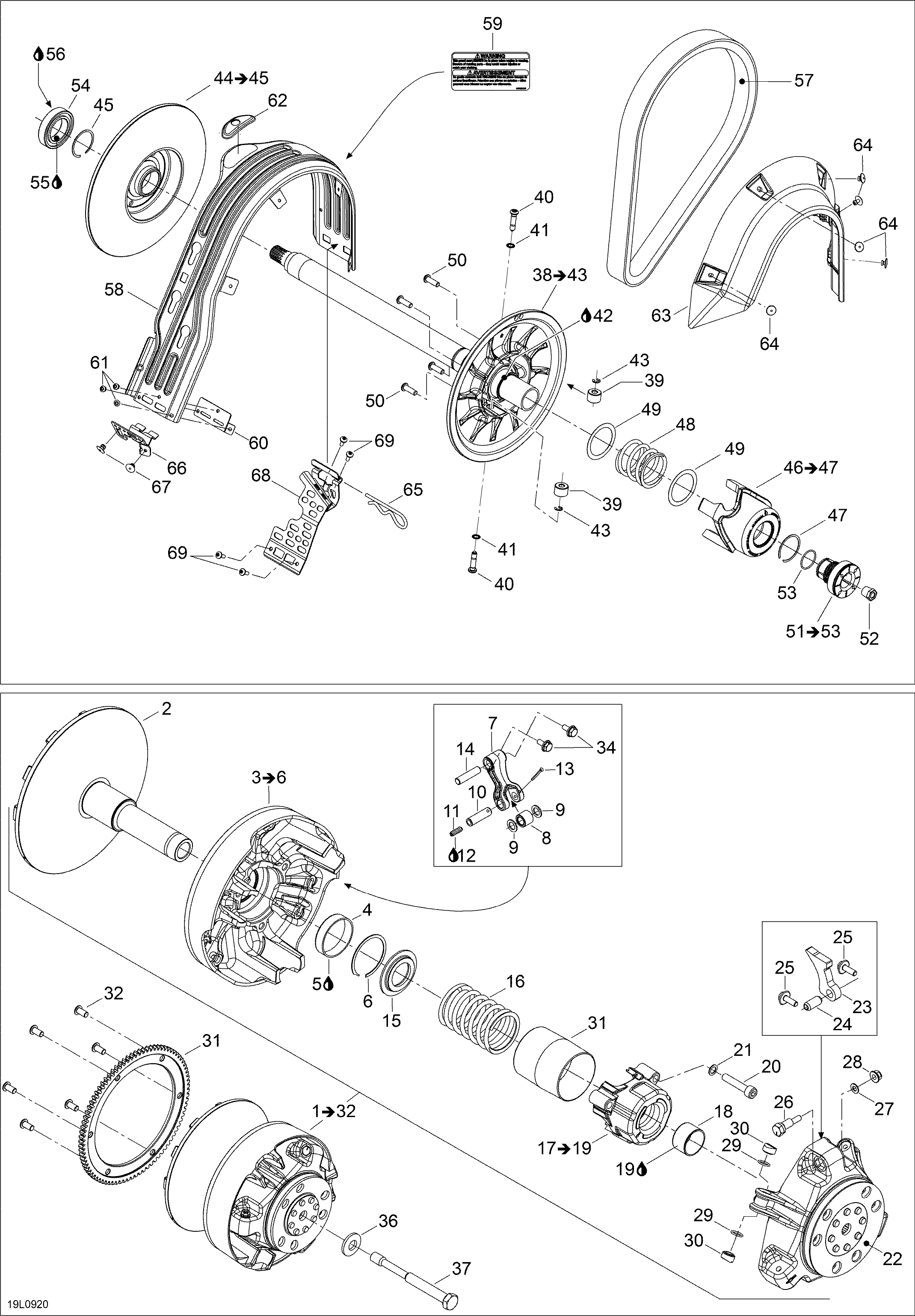

05- Drive System для BRP Lynx Rave 600 - 2009
-
№АртикулНазвание
-
2417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417006900 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'yLever Ass'y
-
8417222947 RollerRoller
-
9417004302 Stopper WasherStopper Washer
-
10417004308 PinPin
-
11206262599 Socket Set ScrewSocket Set Screw
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
13732958001 Cotter PinCotter Pin
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16414817900 Spring, Violet/VioletSpring, Violet/Violet
-
17417007500 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222213 Governor Cup Ass'yGovernor Cup Ass'y
-
23417222515 Ramp 412Ramp 412
-
24250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
25250000059 Hex. Flanged Scew M6 X 18Hex. Flanged Scew M6 X 18
-
26417222955 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
29732401030 O-RingO-Ring
-
30417222922 Slider ShoeSlider Shoe
-
31417223042 Ring GearRing Gear
-
32250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
33417009205 GuardGuard
-
34210361296 Hex. Forming Screw M6 X 12Hex. Forming Screw M6 X 12
-
36250200006 Spring Washer 14 mmSpring Washer 14 mm
-
37417120000 Drive Pulley BoltDrive Pulley Bolt
-
38417127075 Fixe Flange Ass'y. Includes 38 to 43Fixe Flange Ass'y. Includes 38 to 43
-
39417127016 RollerRoller
-
40417127078 StudStud
-
41250200009 Lock Washer 8 mmLock Washer 8 mm
-
42413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
43414753500 CirclipCirclip
-
44417126955 Slidding Flange Ass'y. Includes 44 to 45Slidding Flange Ass'y. Includes 44 to 45
-
45293370049 CirclipCirclip
-
46417127012 Cam Ass'y. Includes 46 to 47Cam Ass'y. Includes 46 to 47
-
47293370049 CirclipCirclip
-
48417127039 Spring, blackSpring, black
-
49417127116 Swivel AbutmentSwivel Abutment
-
50250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
51417127165 Pulley Ajustable Ass'y. Includes 51 to 53Pulley Ajustable Ass'y. Includes 51 to 53
-
54504152574 Ball BearingBall Bearing
-
55413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
56293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
57417300197 Drive BeltDrive Belt
-
58417300357 Belt GuardBelt Guard
-
59516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
60417300335 ReinforcementReinforcement
-
61390909200 Avex RivetAvex Rivet
-
62517303974 GrommetGrommet
-
63417300356 Side ProtectorSide Protector
-
64293150103 Pop RivetPop Rivet
-
65114045200 Hair PinHair Pin
-
66417300360 Belt Guard BracketBelt Guard Bracket
-
67293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
68417300375 Belt Guard BracketBelt Guard Bracket
-
69250000145 Torx Screw M5 X 14Torx Screw M5 X 14
