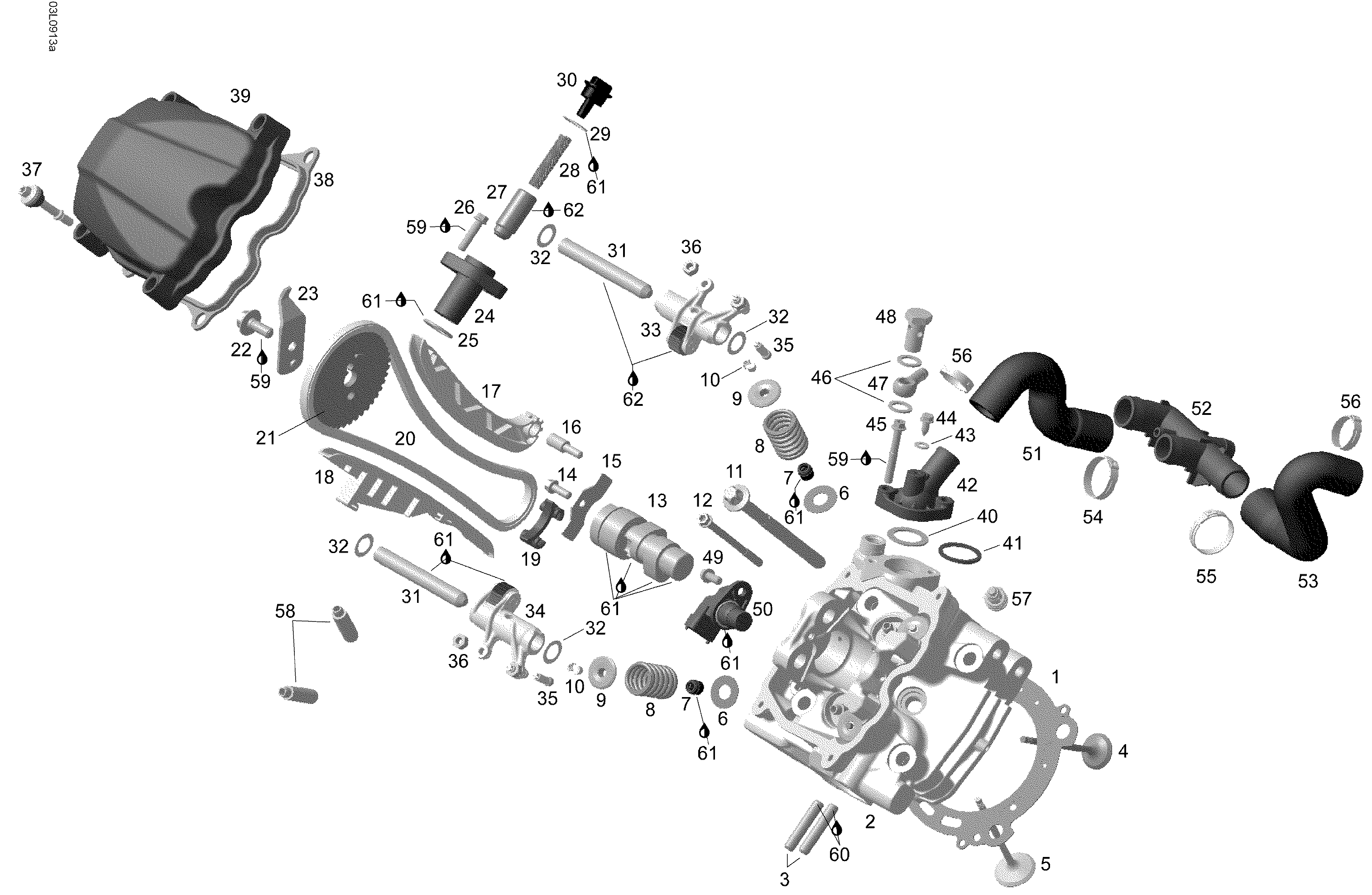

01- Cylinder Head Front для BRP Lynx YETI SUV V-800 - 2009
-
№АртикулНазвание
-
1420630195 GasketGasket
-
2420623063 Cylinder ass'y (front). Includes 2 to 3Cylinder ass'y (front). Includes 2 to 3
-
3420941014 Stud M8 x 25Stud M8 x 25
-
4420254351 Intake valve (31 mm)Intake valve (31 mm)
-
5420254361 Exhaust valve (27 mm)Exhaust valve (27 mm)
-
6420627770 Thrust washerThrust washer
-
7420230515 Valve steam vasherValve steam vasher
-
8420239295 SpringSpring
-
9420254132 Valve spring retainerValve spring retainer
-
10420254120 Valve cotterValve cotter
-
11420641550 Torx-screw M10 x 140Torx-screw M10 x 140
-
12420641228 Hex. screw M6 x 85Hex. screw M6 x 85
-
13420620023 CamshaftCamshaft
-
14420641048 Hex. screw M6 x 16Hex. screw M6 x 16
-
15420627743 Holding stripHolding strip
-
16420240942 Bearing screwBearing screw
-
17420236574 Chain tensionChain tension
-
18420236581 Chain tension guideChain tension guide
-
19420236350 Chain tension guideChain tension guide
-
20420297062 Camshaft chainCamshaft chain
-
21420254432 Steering wheelSteering wheel
-
22420241721 Hex. screw M8 x 20Hex. screw M8 x 20
-
23420664255 Pick up gearPick up gear
-
24420236510 Chain tensioner housingChain tensioner housing
-
25420430370 O-ringO-ring
-
26420641238 Hex. screw M6 x 25Hex. screw M6 x 25
-
27420236520 Chain tension pullerChain tension puller
-
28420238120 SpringSpring
-
29420250890 O-ringO-ring
-
30420641150 Plug screwPlug screw
-
31420229711 PinPin
-
32420944382 ShimShim
-
33420254905 Rockerarm ass’y (inlet)Rockerarm ass’y (inlet)
-
34420254915 Rockerarm ass’y (exhaust)Rockerarm ass’y (exhaust)
-
35420241335 Adjusting screw M6 x 0,75Adjusting screw M6 x 0,75
-
36420242910 Nut M6Nut M6
-
37420440560 Screw distance M6 x 30,5Screw distance M6 x 30,5
-
38420630260 GasketGasket
-
39420610390 Valve coverValve cover
-
40420927837 Spacer with gasket. Includes 40 to 41Spacer with gasket. Includes 40 to 41
-
41420650300 Thermostat gasketThermostat gasket
-
42420222690 Thermostat coverThermostat cover
-
43420650255 O-ringO-ring
-
44420941950 ScrewScrew
-
45420641238 Hex. screw M6 x 45Hex. screw M6 x 45
-
46420250640 Sealing ringSealing ring
-
47420822380 Hose nippleHose nipple
-
48420641545 Banjo-boltBanjo-bolt
-
49420641048 Hex. screw M6 x 16Hex. screw M6 x 16
-
50420664042 Camshaft -sensorCamshaft -sensor
-
51420822357 Molded hoseMolded hose
-
52420922282 Hose joining nippleHose joining nipple
-
53420822355 Molded hoseMolded hose
-
54420853163 ClampClamp
-
55420853173 ClampClamp
-
56420251573 ClampClamp
-
57707000246 Spark plug 12Spark plug 12
-
58420254370 Valve guideValve guide
-
59293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
60420899788 Loctite 648, 5gLoctite 648, 5g
-
61293550014 Grease, super lubeGrease, super lube
-
62293600054 Engine oil 4 strokes, 0 W 40, 12 x 1 literEngine oil 4 strokes, 0 W 40, 12 x 1 liter
