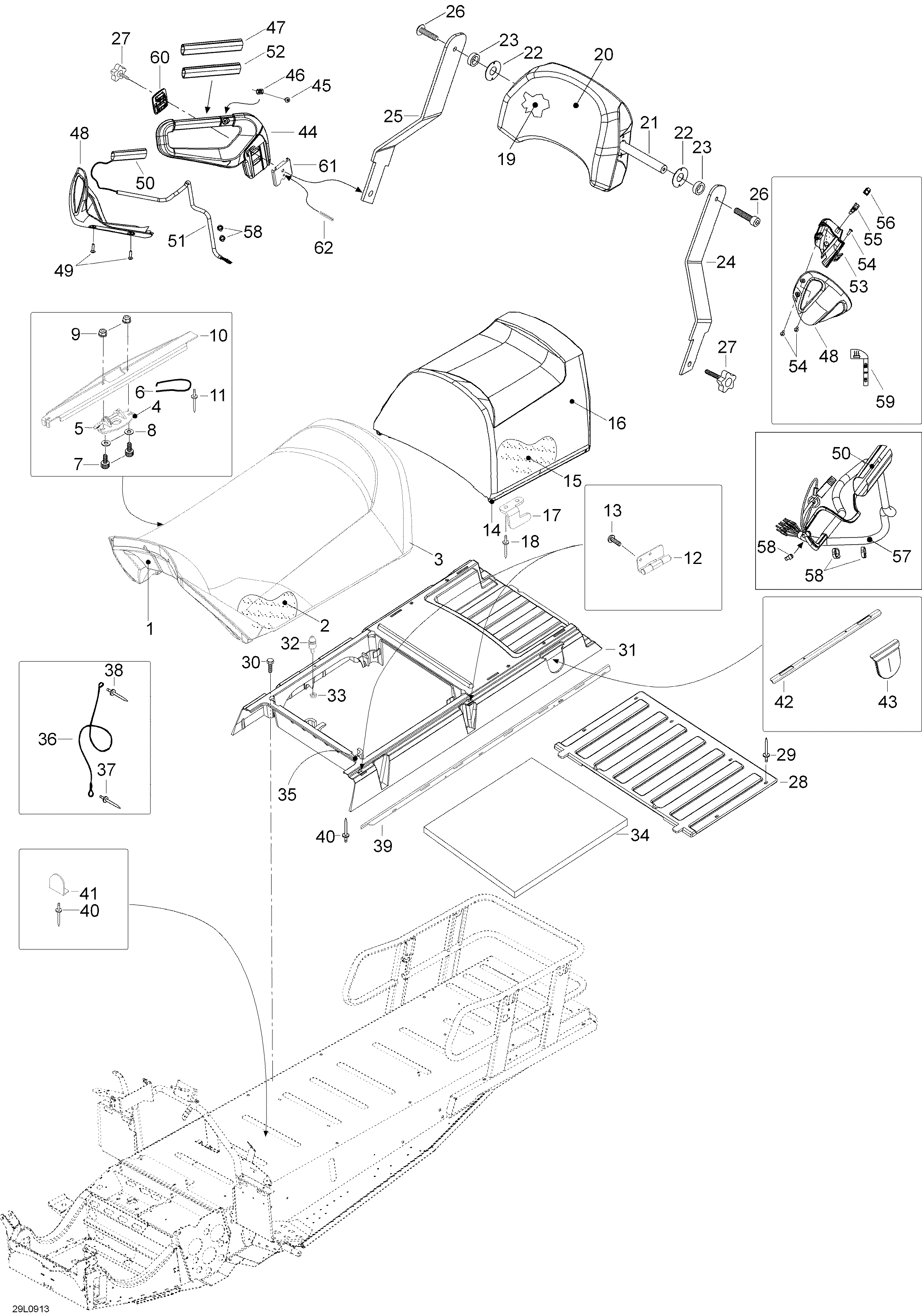

09- Seat для BRP Lynx YETI SUV V-800 - 2009
-
№АртикулНазвание
-
1605251388 Seat base, frontSeat base, front
-
2605255689 Foam, frontFoam, front
-
3605255216 Cover, frontCover, front
-
4269700076 CoverCover
-
5269700077 HandleHandle
-
6269700017 SpringSpring
-
740276 Socket head screw M6 x 25Socket head screw M6 x 25
-
820003 Washer A6,4Washer A6,4
-
933010 Elastic stop nut M6Elastic stop nut M6
-
10605352483 Support plateSupport plate
-
1136088 RivetRivet
-
12605351798 HingeHinge
-
1340890 Wronic-screw 4,2 x 16Wronic-screw 4,2 x 16
-
14605251390 Seat base, rearSeat base, rear
-
15605255691 Foam, rearFoam, rear
-
16605254496 Cover, rearCover, rear
-
17605351808 L.H. Locking hookL.H. Locking hook
-
17605352007 R.H. Locking hookR.H. Locking hook
-
1836087 RivetRivet
-
19510004365 FoamFoam
-
20605355498 CoverCover
-
21510004377 Upper backrest axleUpper backrest axle
-
22510004379 WasherWasher
-
23510004378 Rubber shimRubber shim
-
24605355499 L.H. ArmL.H. Arm
-
25605355500 R.H. ArmR.H. Arm
-
26605640010 Socket head screw M10 x 20Socket head screw M10 x 20
-
27605640015 Handle M8 x 35Handle M8 x 35
-
28605255587 CoverCover
-
2936036 RivetRivet
-
30605640022 Hex. screw M6 x 16Hex. screw M6 x 16
-
31605155585 Seat baseSeat base
-
32605452035 Lock pinLock pin
-
3333010 Elastic stop nut M6Elastic stop nut M6
-
34605355635 FoamFoam
-
3528413 GasketGasket
-
36546777 Retainer cableRetainer cable
-
3736037 RivetRivet
-
3836489 RivetRivet
-
39605255761 L.H. seat box tieL.H. seat box tie
-
39605255762 R.H. seat box tieR.H. seat box tie
-
4036108 RivetRivet
-
41605455789 Bracket, seatboxBracket, seatbox
-
42605355816 Bracket, back seatBracket, back seat
-
43605355589 Support plateSupport plate
-
44510004948 R.H. GripR.H. Grip
-
44510004947 L.H. GripL.H. Grip
-
45250000129 Screw M6 x 16Screw M6 x 16
-
46293100003 NutNut
-
47510004449 GripGrip
-
48510004415 R.H. DeflectorR.H. Deflector
-
48510004416 L.H. DeflectorL.H. Deflector
-
49250000199 ScrewScrew
-
50515176393 Heating elementHeating element
-
51515175506 TubingTubing
-
52510004709 Handle reinforcementHandle reinforcement
-
53510004566 Housing switchHousing switch
-
54250000146 ScrewScrew
-
55510004413 SwitchSwitch
-
56510004414 Prorector switchProrector switch
-
57515176241 Wiring harnessWiring harness
-
58414115200 Tie-rapTie-rap
-
59516002835 DekalDekal
-
60510004405 MoldingMolding
-
61605454565 Handle supportHandle support
-
6241007 Hair pinHair pin
