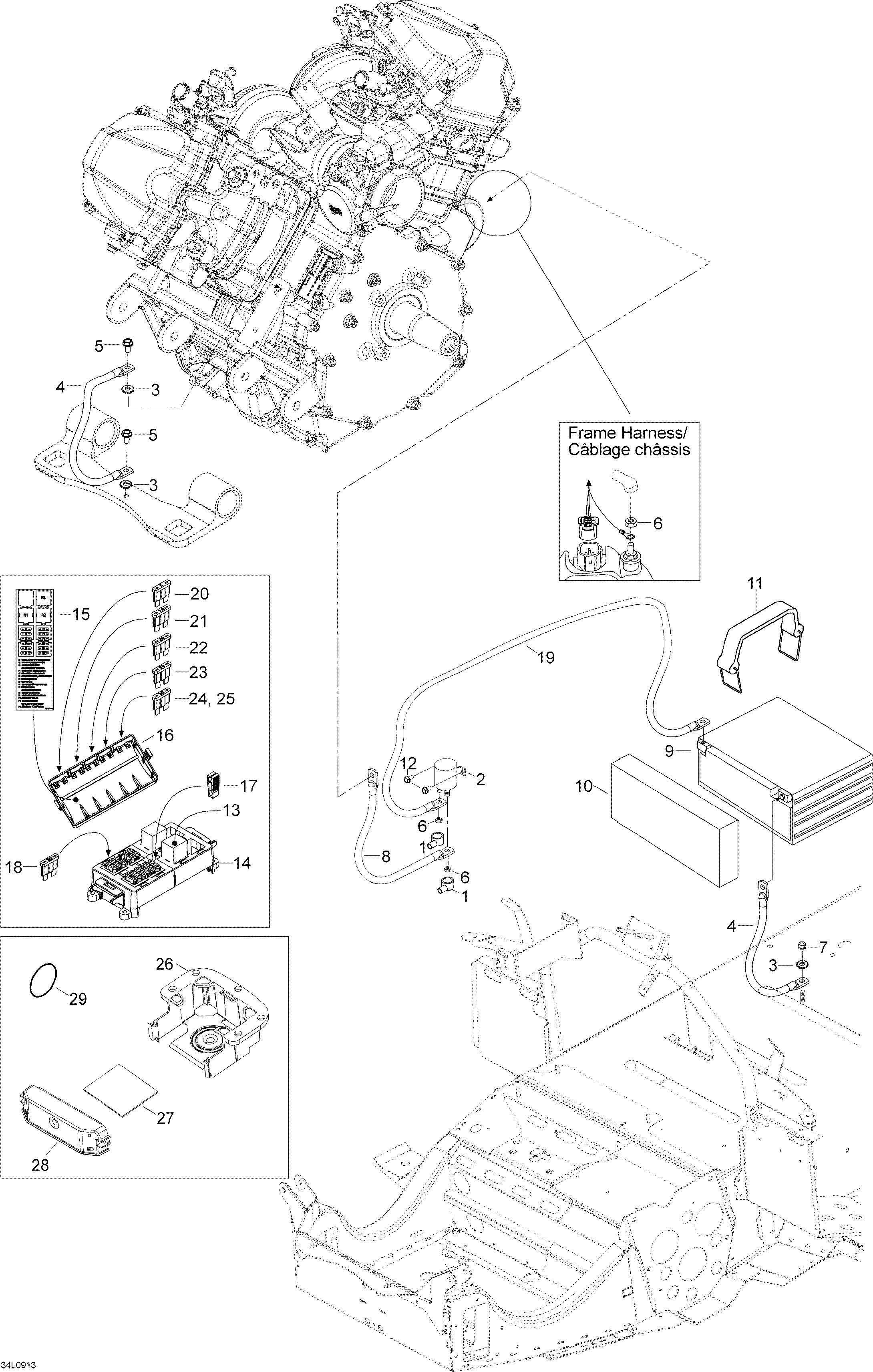

10- Electric Starter для BRP Lynx YETI SUV V-800 - 2009
-
№АртикулНазвание
-
1570151000 CoverCover
-
2515176011 SolenoidSolenoid
-
320017 CoverCover
-
4605455189 Ground wireGround wire
-
540401 Screw M6 x 10Screw M6 x 10
-
633010 Elastic stop nut M6Elastic stop nut M6
-
733200 Elastic flanged nut M6Elastic flanged nut M6
-
8605355251 Battery wireBattery wire
-
9410922962 BatteryBattery
-
10605352572 CoverCover
-
11605352573 Battery strapBattery strap
-
1240030 Screw M6 x 20Screw M6 x 20
-
13410113604 RelayRelay
-
14515176065 Fuse boxFuse box
-
15605452411 DecalDecal
-
16515176066 CoverCover
-
17515175811 ToolTool
-
1842044 Fuse 1 AFuse 1 A
-
18278000344 Fuse 5 AFuse 5 A
-
18278000704 Fuse 7.5 AFuse 7.5 A
-
18409003900 Fuse 20 AFuse 20 A
-
18410917200 Fuse 30 AFuse 30 A
-
19605151524 Battery wireBattery wire
-
2042045 Fuse 15 AFuse 15 A
-
21278000344 Fuse 5 AFuse 5 A
-
22278000344 Fuse 7.5 AFuse 7.5 A
-
23409003900 Fuse 20 AFuse 20 A
-
24410917200 Fuse 30 AFuse 30 A
-
2542045 Fuse 15 AFuse 15 A
-
26605255588 Battery HolderBattery Holder
-
27605355846 FoamFoam
-
28605255586 CoverCover
-
29605676001 O-ringO-ring
