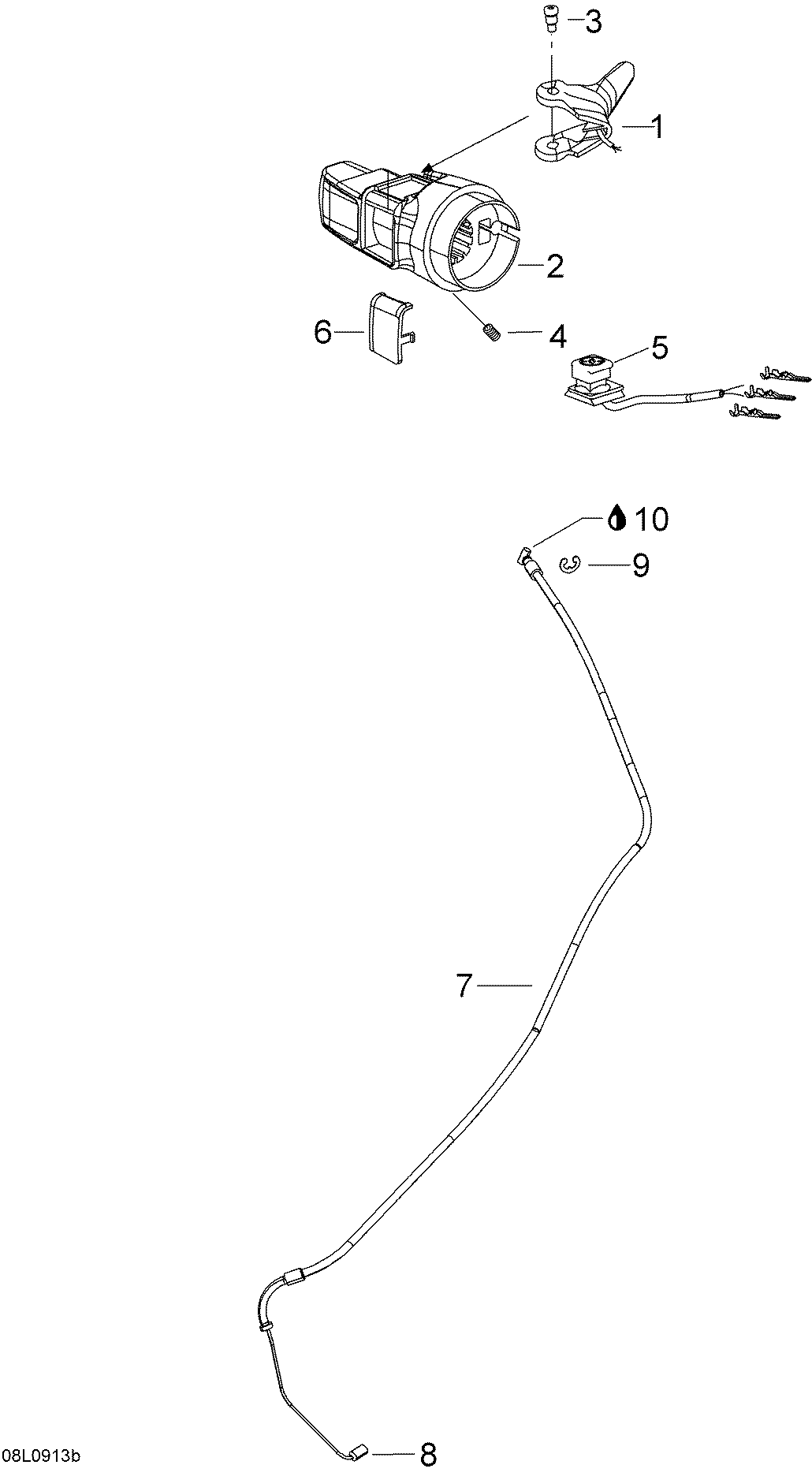

01- Throttle Handle And Housing для BRP Lynx YETI SUV V-800 - 2009
-
№АртикулНазвание
-
1512059481 Throttle handleThrottle handle
-
2512059763 Throttle handle housingThrottle handle housing
-
3732601143 ScrewScrew
-
4414440800 Screw M8 x 10Screw M8 x 10
-
5515176708 Emergency switchEmergency switch
-
6572100901 CoverCover
-
7605356001 Throttle cableThrottle cable
-
8707000434 Cable guideCable guide
-
931038 CirclipCirclip
