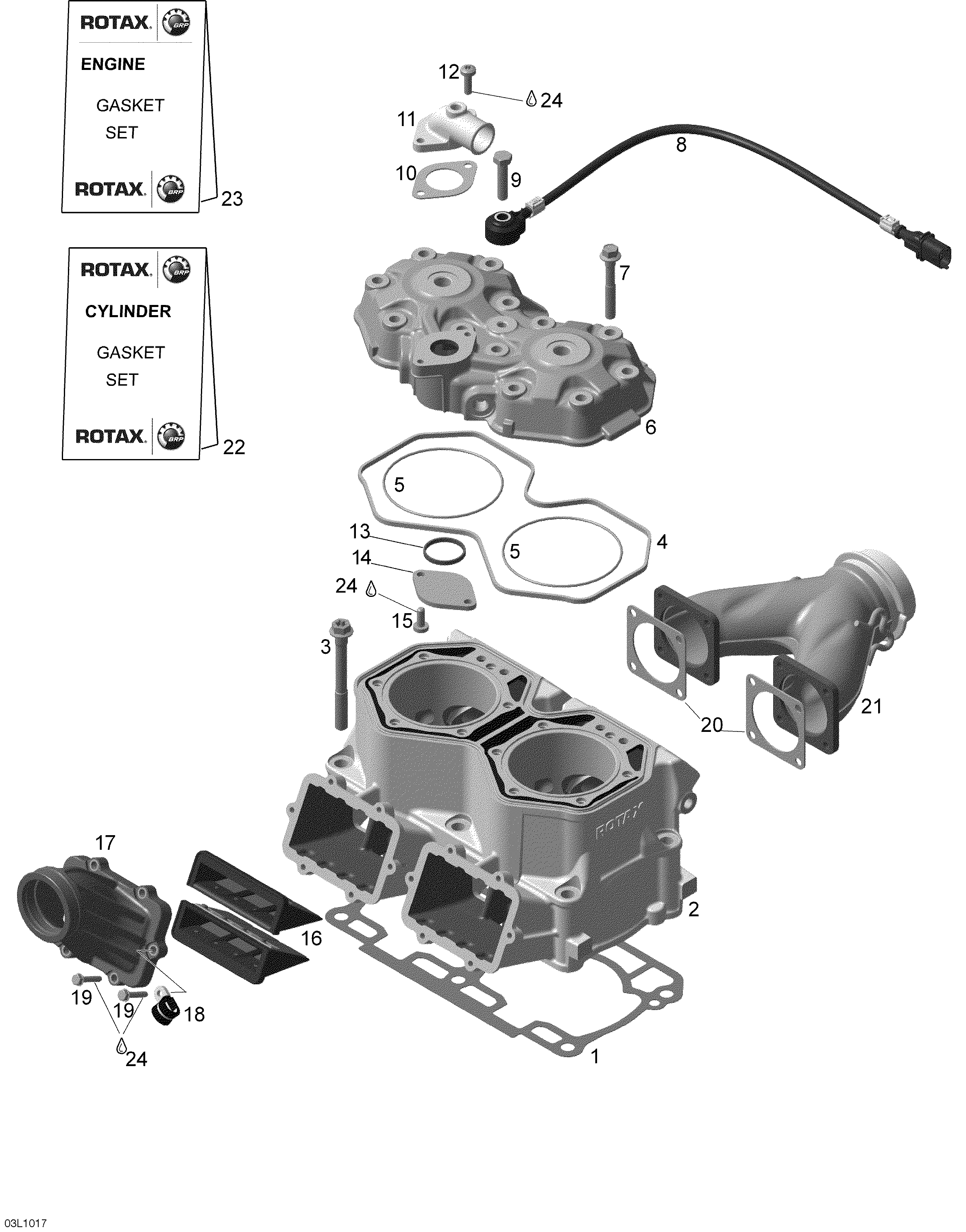

01- Cylinder And Cylinder Head для BRP Lynx Xtrim 800R PowerTEK - 2010
-
№АртикулНазвание
-
1420430080 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
1420430081 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
1420430082 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
1420430083 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
1420430084 Double Gasket 0.9 mmDouble Gasket 0.9 mm
-
2420623242 CylinderCylinder
-
3420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
4420430040 O-RingO-Ring
-
5420931410 O-RingO-Ring
-
6420613925 Cylinder Head CoverCylinder Head Cover
-
7420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
8270000484 Noise SensorNoise Sensor
-
8420460010 TubeTube
-
8420960890 ClipClip
-
9207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
10420850338 GasketGasket
-
11420922062 Bent Outlet SocketBent Outlet Socket
-
12420941256 Hex. Collar ScrewHex. Collar Screw
-
13420630780 GasketGasket
-
14420926260 CoverCover
-
15420640321 Hex. Taptite Screw M6 X 16Hex. Taptite Screw M6 X 16
-
16420924792 Reed Valve Ass'yReed Valve Ass'y
-
17420667472 Intake socketIntake socket
-
18420851250 ClampClamp
-
19420241270 Hex. Taptite Screw M5 X 25Hex. Taptite Screw M5 X 25
-
20420430482 GasketGasket
-
21420673373 Exhaust ManifoldExhaust Manifold
-
22420892477 Gasket Set, CylinderGasket Set, Cylinder
-
23420892472 Gasket Set, EngineGasket Set, Engine
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
