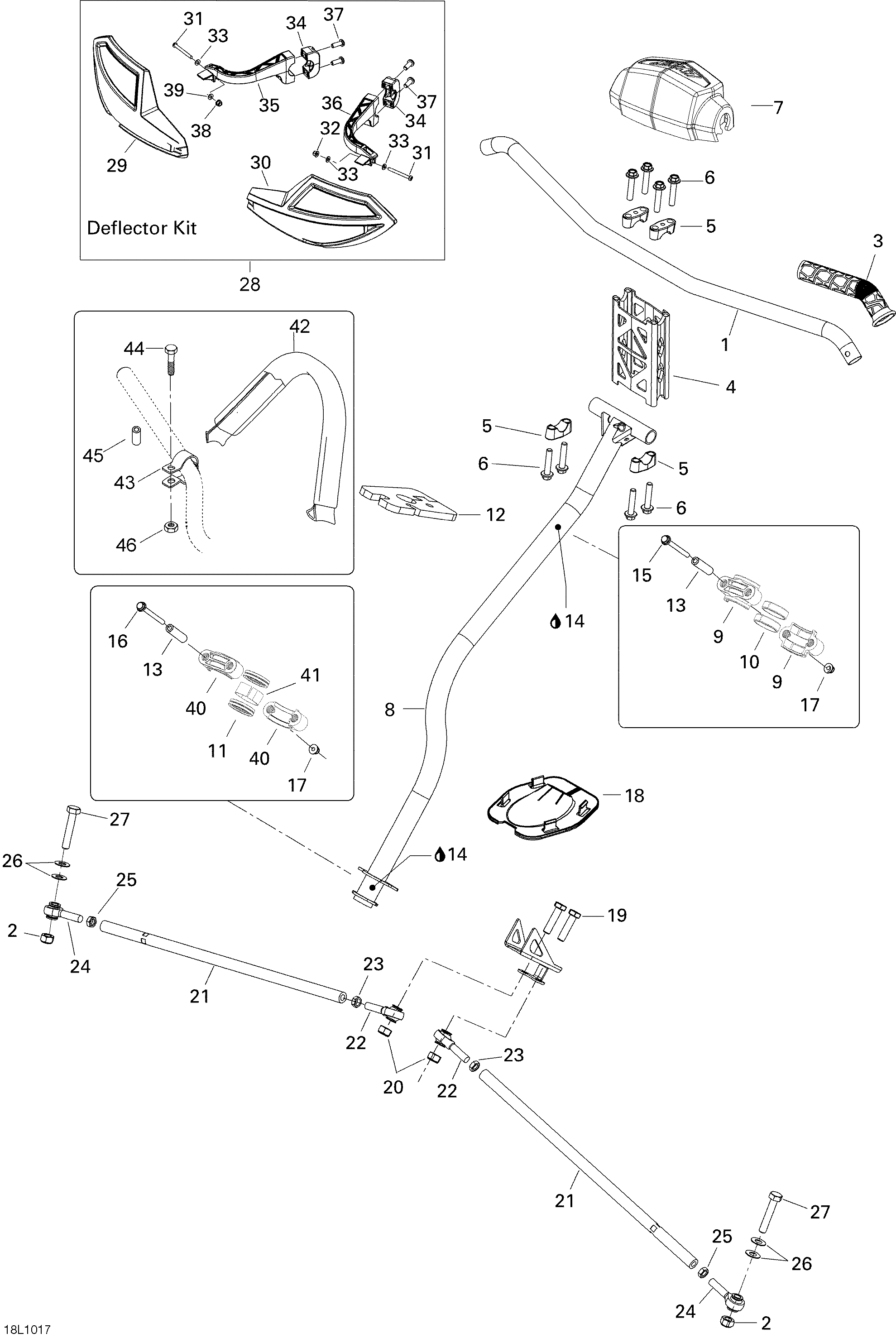

07- Steering System для BRP Lynx Xtrim 800R PowerTEK - 2010
-
№АртикулНазвание
-
1506152087 Hand BarHand Bar
-
2232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
3506152226 GripGrip
-
4506152457 Handle Bar ExtensionHandle Bar Extension
-
5506152395 Lower Steering SupportLower Steering Support
-
6250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
7506152265 Steering PadSteering Pad
-
8506152401 Main TubeMain Tube
-
9506152219 Upper Half HousingUpper Half Housing
-
10506152292 Upper Vibration RingUpper Vibration Ring
-
11506152218 Lower Vibration RingLower Vibration Ring
-
12506152407 CushionCushion
-
13506152297 Housing BushingHousing Bushing
-
14293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
15207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
16207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
17233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
18506152163 PlatePlate
-
19207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
20232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
21506152095 Tie RodTie Rod
-
22506152081 LH Ball JointLH Ball Joint
-
23250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
24506152019 RH Ball JointRH Ball Joint
-
25732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
26506152194 WasherWasher
-
27207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
28517303968 Deflector packDeflector pack
-
29517303968 Deflector packDeflector pack
-
30517303968 Deflector packDeflector pack
-
31205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
32232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
33234041480 Flat Washer 4 mmFlat Washer 4 mm
-
34517303264 U-ClampU-Clamp
-
35517303590 RH Deflector SupportRH Deflector Support
-
36517303591 LH Deflector SupportLH Deflector Support
-
37250000172 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
38232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
39234041480 Flat Washer 4 mmFlat Washer 4 mm
-
40506152217 Lower Half HousingLower Half Housing
-
41506152440 Retaining RingRetaining Ring
-
42506152115 Strap Ass'yStrap Ass'y
-
43506151792 Support Plate, BlackSupport Plate, Black
-
44207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
45506152156 BushingBushing
-
46233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
