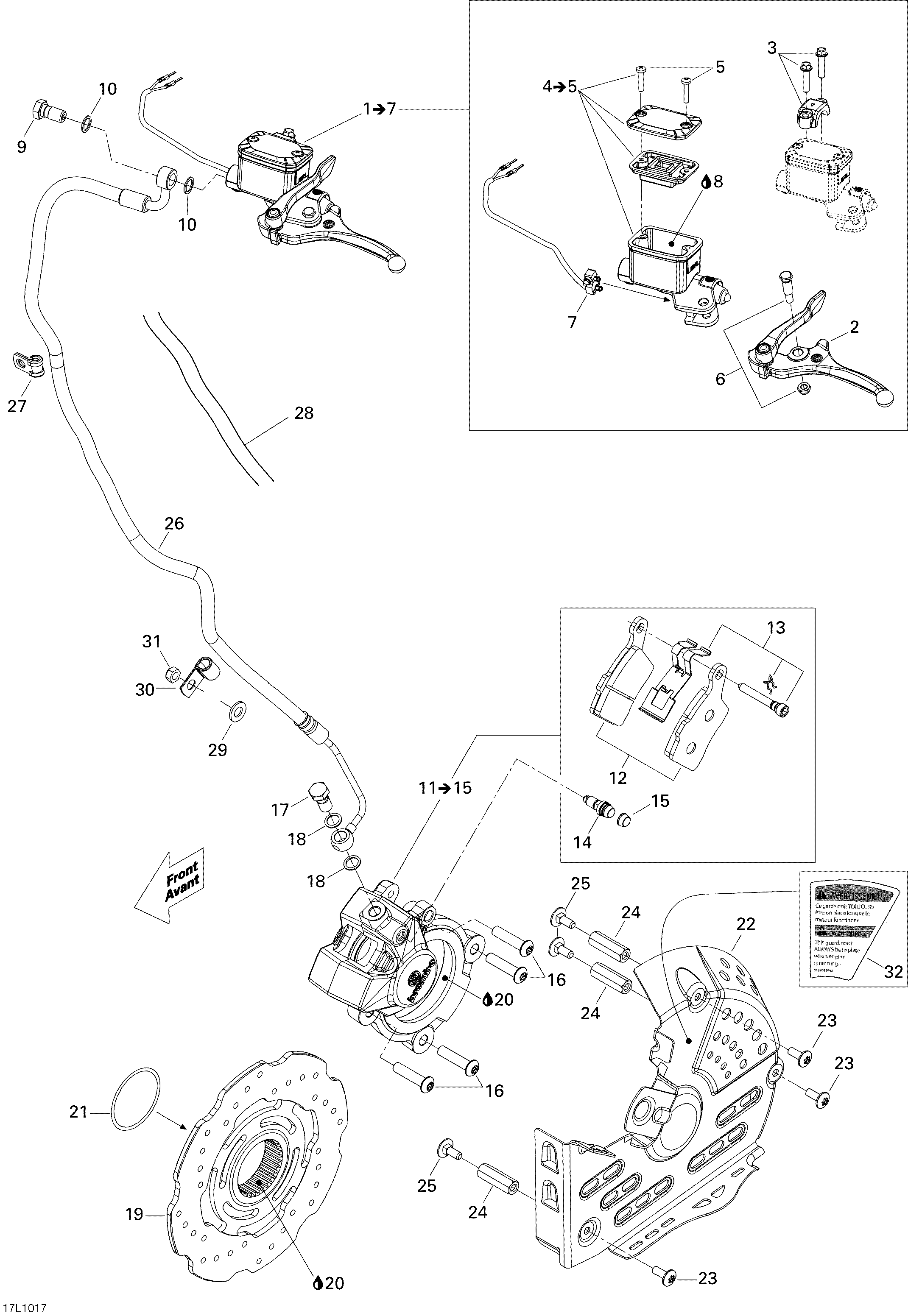

06- Hydraulic Brakes для BRP Lynx Xtrim 800R PowerTEK - 2010
-
№АртикулНазвание
-
1507032432 Master Cylinder Ass’y. Includes 1 to 7Master Cylinder Ass’y. Includes 1 to 7
-
2507032476 LeverLever
-
3507032477 ClampClamp
-
4507032478 Cap. Includes 4 to 5Cap. Includes 4 to 5
-
5415129356 Screw M4 X 20Screw M4 X 20
-
6415030000 Pin Ass'yPin Ass'y
-
7507032479 MicroswitchMicroswitch
-
8293600131 Brake Fluid, GTLMA, DOT 4, 12 X 354 mlBrake Fluid, GTLMA, DOT 4, 12 X 354 ml
-
9414920500 Banjo BoltBanjo Bolt
-
10414920600 WasherWasher
-
11507032500 Brake Caliper Ass'y. Includes 11 to 15Brake Caliper Ass'y. Includes 11 to 15
-
12507032473 Brake Pads KitBrake Pads Kit
-
13507032474 Kit, Pin, Clip, SpringKit, Pin, Clip, Spring
-
14507032475 BleederBleeder
-
15414989700 BootBoot
-
16250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
17414920500 Banjo BoltBanjo Bolt
-
18414920600 WasherWasher
-
19507032488 DiskDisk
-
20293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
21293300134 O-RingO-Ring
-
22507032446 Disk Protector, AluminumDisk Protector, Aluminum
-
23250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
24507032497 Threaded TubeThreaded Tube
-
25207761644 Carriage Bolt M6 X 16Carriage Bolt M6 X 16
-
26507032505 HoseHose
-
27705600459 ClampClamp
-
28503192475 CoverCover
-
29234081410 Flat Washer 8 mmFlat Washer 8 mm
-
30705600459 ClampClamp
-
31232561434 Elastic Stop Nut M6Elastic Stop Nut M6
